(6) If a heat shrinkable sleeve is specified for the insulation of the terminal lug assembly, install the
sleeve. Refer to Figure 13
(a) Push the sleeve forward until the forward end of the sleeve is aligned with the rear end of
the tongue of the terminal lug.
(b) Shrink the sleeve into its position. Refer to Subject 20-10-14.
Make sure that the sleeve has a tight fit on the assembly.

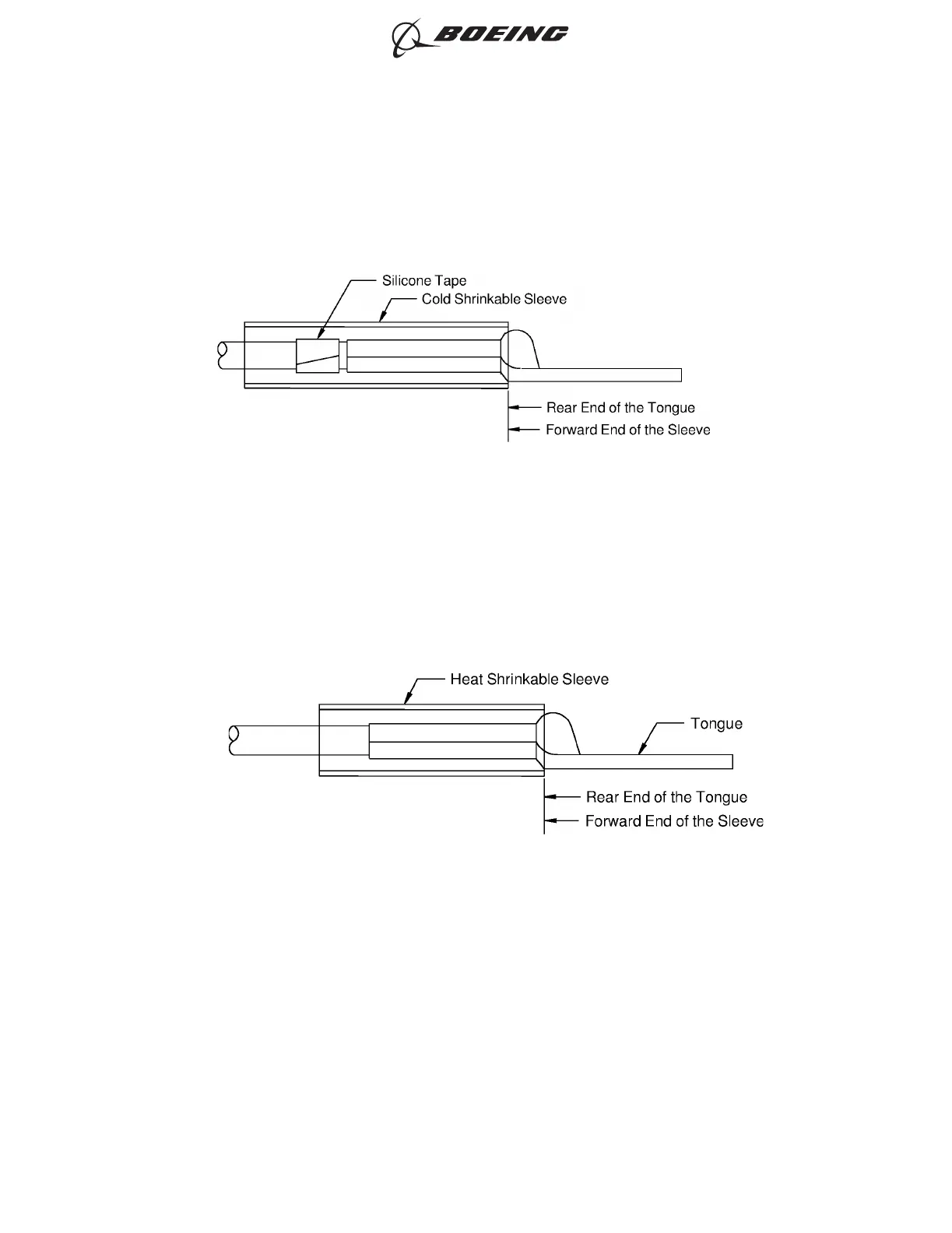

POSITION OF THE COLD SHRINKABLE SLEEVE ON THE TERMINAL LUG
Figure 12
POSITION OF THE HEAT SHRINKABLE SLEEVE ON THE TERMINAL LUG
Figure 13
ASSEMBLY OF BACT12BC, BACT12BD, BACT12BE, BACT12BF AND BACT12BG ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-07
Page 11
Oct 15/2015D6-54446
