2448018 S00061545617_V1

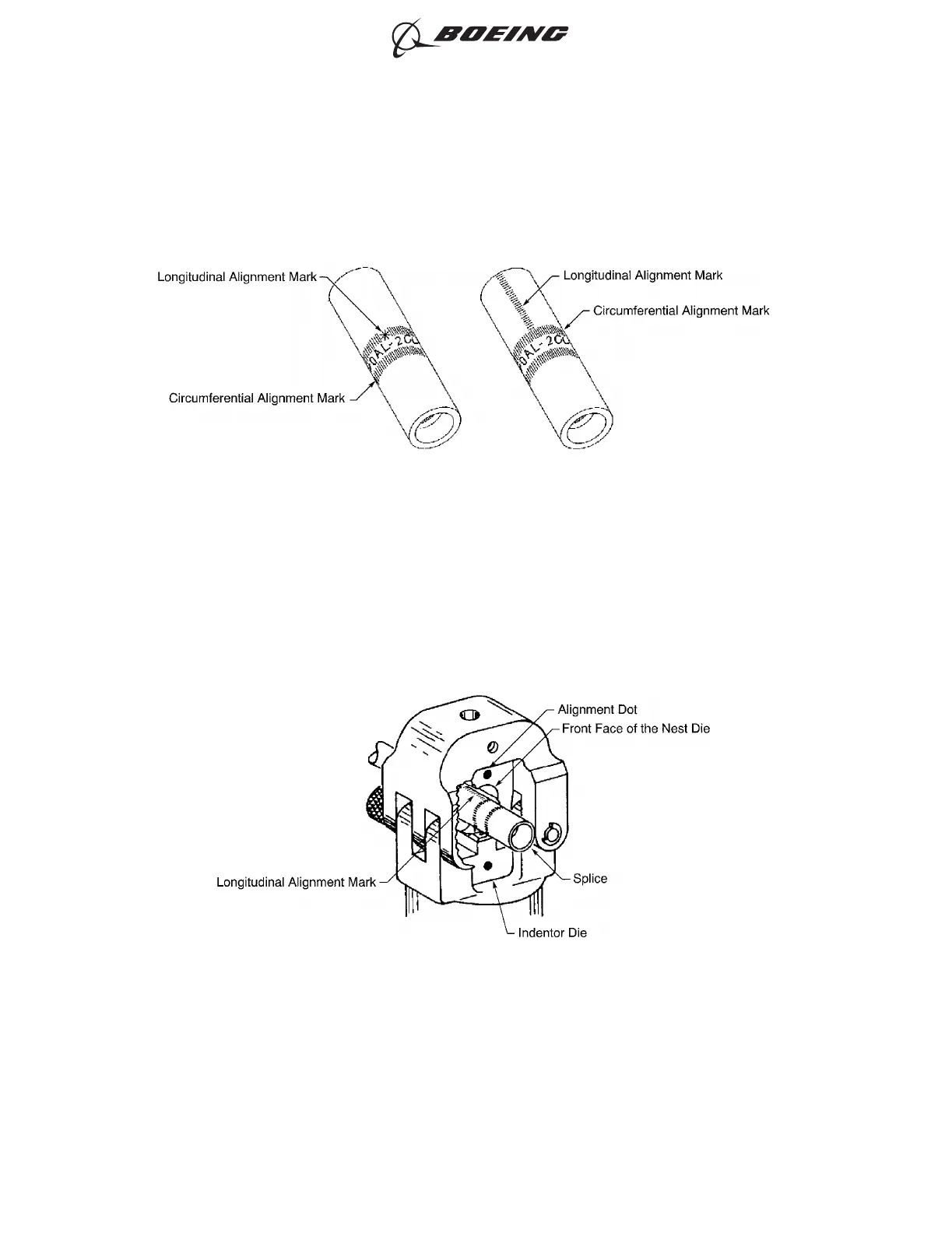

LOCATION OF THE ALIGNMENT MARKS ON THE SPLICE
Figure 8
2448019 S00061545618_V1
POSITION OF THE SPLICE IN THE CRIMP TOOL - FRONT VIEW
Figure 9
ASSEMBLY AND REPAIR OF THE AMP AND BACS52N COPALUM SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-13
Page 23
Oct 15/2015D6-54446
