CAUTION
DO NOT TURN THE WIRE DURING OR AFTER THE INSERTION OF THE
WIRE INTO THE SPLICE.
(8) Put the wire and the splice in the crimp tool dies.
(9) Align the splice in the die.
Refer to:
• Figure 8 for the location of the alignment marks on the splice
• Figure 9 for the front view of the position of the splice in the dies
• Figure 10 for the side view of the position of the splice in the dies.

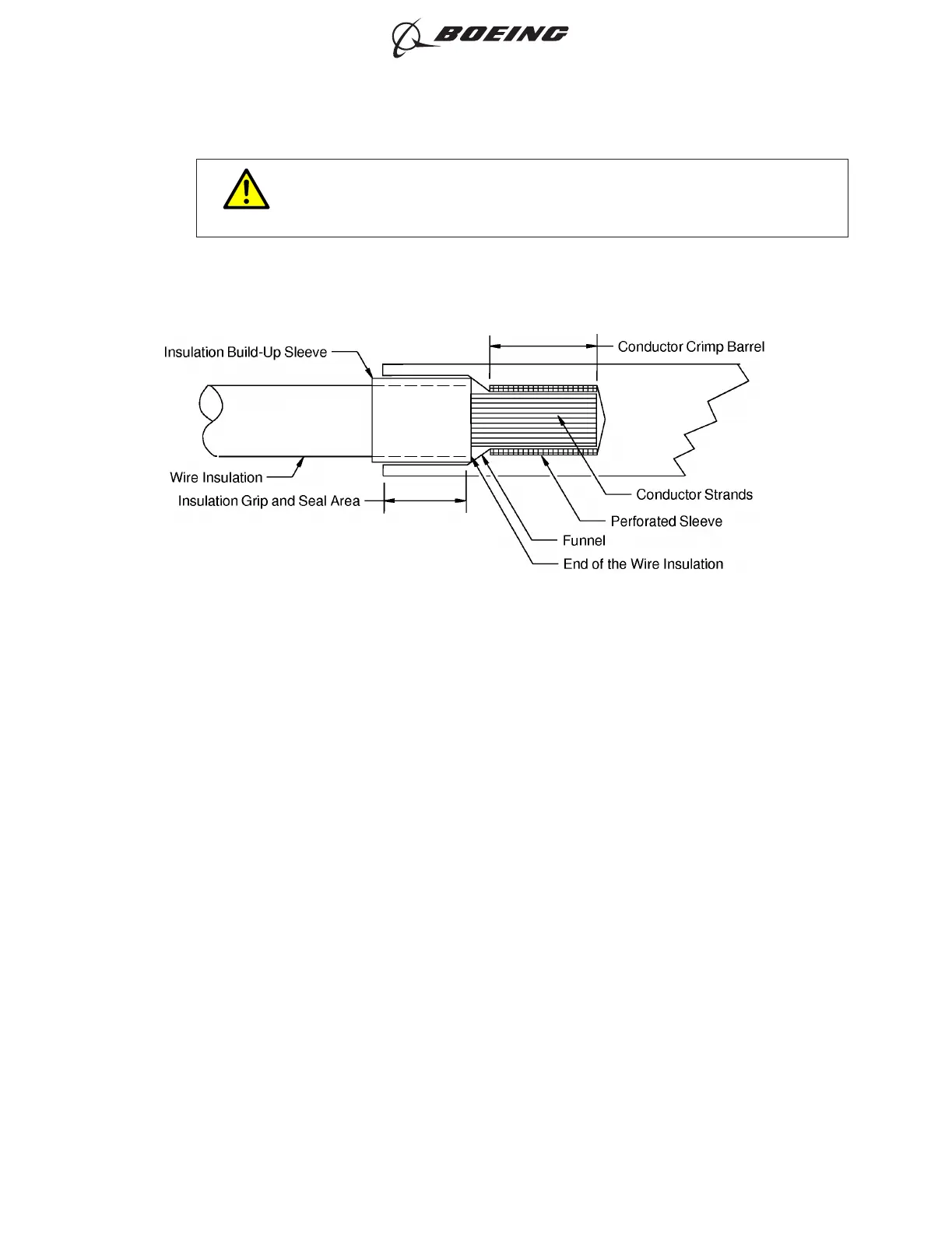

POSITION OF THE WIRE IN THE CRIMP BARREL OF THE COPALUM SPLICE
Figure 7
ASSEMBLY AND REPAIR OF THE AMP AND BACS52N COPALUM SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-13
Page 22
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
