• If it the indenter die has a symmetrical pap in the certification mark, the certification mark on
the splice has a circular, symmetrical pap at the center of mark; refer to Figure 12.
NOTE: It is usual for some base metal to be seen in the crimp area. This is not a cause to reject
the splice.

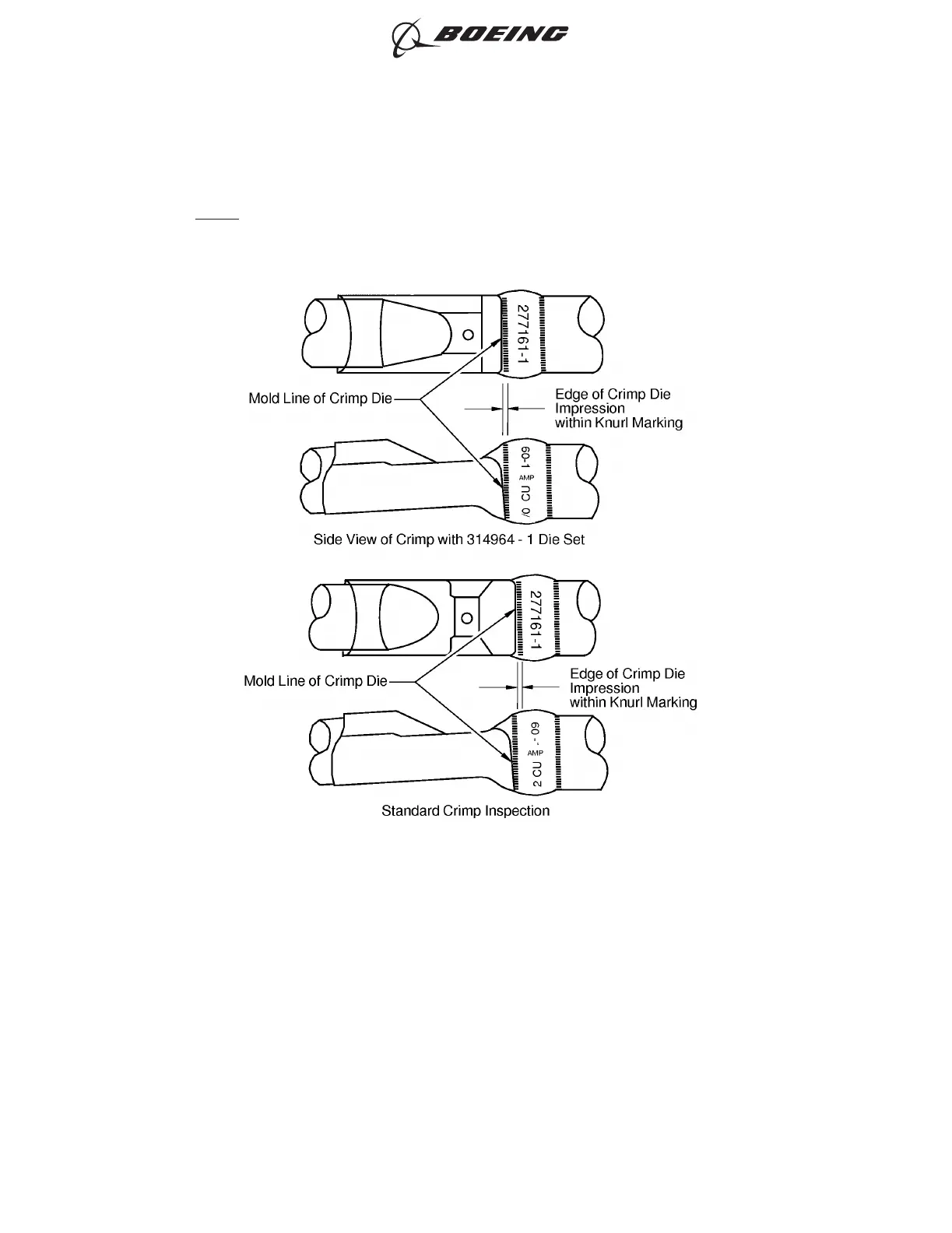

LOCATION OF THE CRIMP DIE IMPRESSIONS
Figure 11
