(c) Examine the extension of the terminal lug insulation.
Make sure that the tape does not make an overlap with the rear end of the bottom of the
tongue of the terminal lug.
(7) Extension of the Terminal Lug Assembly Insulation - Special Configuration.
This procedure is applicable only when it is specified.
Table 9
Wiring Assembly Components
Component Type Part Number
Tape Silicone, Type I, 20 mil A-A-59163-1I0020-0.500
(a) Put two layers of tape on the tongue of the terminal lug.
Refer to:
1) Table 9/Wiring Assembly Componentsfor the silicone tape.
2) Figure 12 for the position of the tape on the bottom surface of the tongue.
3) Figure 13 for the position of the tape on the top surface of the lug.
Make sure that:
4) The tape makes an overlap with the notch of the tongue of the terminal lug.
5) The tape does not extend farther than 0.025 inch forward from the edge of the notch.

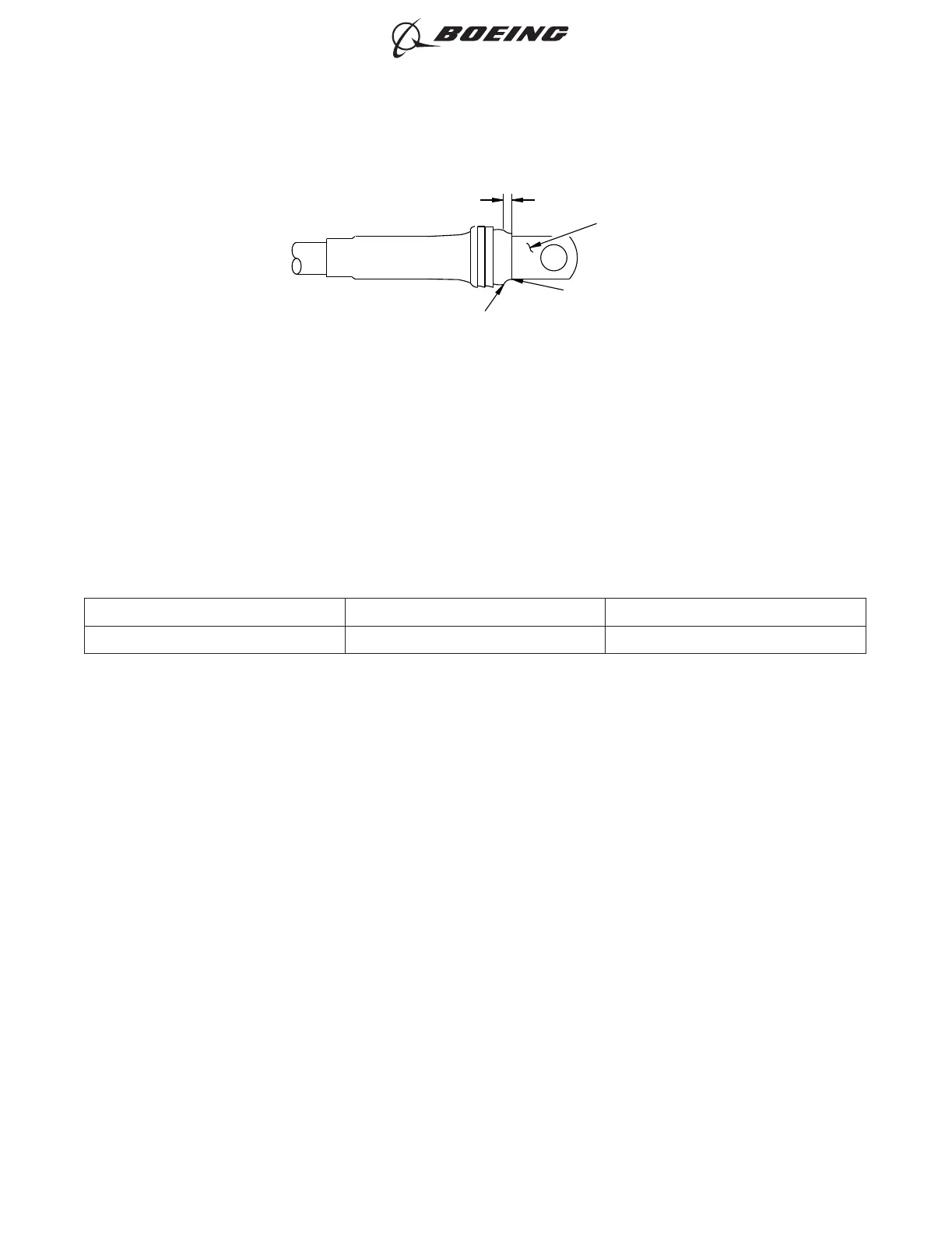

FORWARD EDGE OF THE TAPE
BOTTOM SURFACE OF
THE TONGUE
0.025 INCH MAXIMUM
EDGE OF NOTCH
2528893 S0000597231_V1
Position of the Tape on the Transition Barrel
Figure 11
ASSEMBLY OF BACT12BC TE ALUMINUM TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-08
Page 11
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
