(b) Put two layers of the tape on the transition barrel of the terminal lug. Refer to Figure 14.
Make sure that:
1) The forward end of each layer is aligned with the forward end of the transition barrel.
2) The rear end of each layer extends 0.5 inch minimum rearward from the rear end of the
tongue of the terminal lug.
3) Each layer makes a 50 percent overlap with itself.
4) The second layer of tape is wound in the opposite direction of the first layer.
FORWARD END OF THE
TRANSITION BARREL
REAR END OF THE TONGUE
0.5 INCH MINIMUM
0.5 INCH SILICONE TAPE
INSULATION SLEEVE
2528872 S0000597233_V1

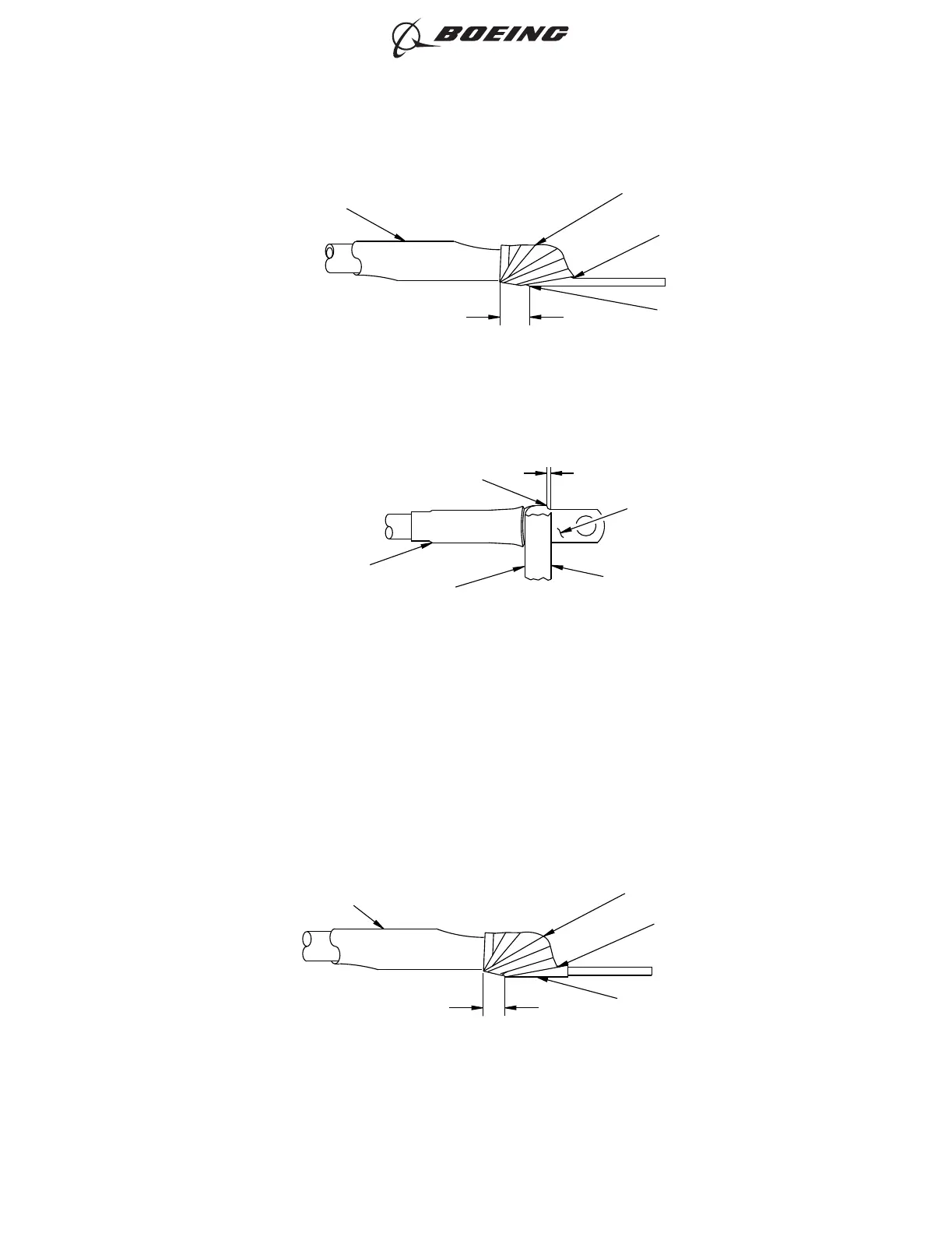

Position of the Tape on the Bottom Surface of the Tongue
Figure 12
FORWARD EDGE OF THE TAPE
BOTTOM SURFACE OF
THE TONGUE
0.025 INCH MAXIMUM
EDGE OF NOTCH
INSULATION SLEEVE
0.5 INCH SILICONE TAPE
2528883 S0000597234_V1
Position of the Tape on the Top Surface of the Terminal Lug
Figure 13
TAPE ON THE BOTTOM
SURFACE OF THE TONGUE
0.5 INCH MINIMUM
INSULATION SLEEVE
FORWARD END OF THE
TRANSITION BARREL
0.5 INCH SILICONE TAPE
2528891 S0000597237_V1
Position of the Tape on the Transition Barrel
Figure 14
ASSEMBLY OF BACT12BC TE ALUMINUM TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-08
Page 12
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
