(8) Crimp the terminal lug.
(9) Remove the terminal lug from the crimp tool.
(a) Hold the terminal lug at the rear end of the tongue that is adjacent to the stationary die.
WARNING
DO NOT ACCIDENTLY PRESS THE FOOT PEDAL OR THE HANDLE
CONTROL OF THE CRIMP TOOL. AN INJURY TO PERSONNEL CAN
OCCUR.
CAUTION
DO NOT HOLD THE TERMINAL LUG AT THE HOLES IN THE TONGUE.
DAMAGE TO THE TERMINAL LUG CAN OCCUR.
(b) Carefully move the terminal lug back and forth until it is released from the stationary die.

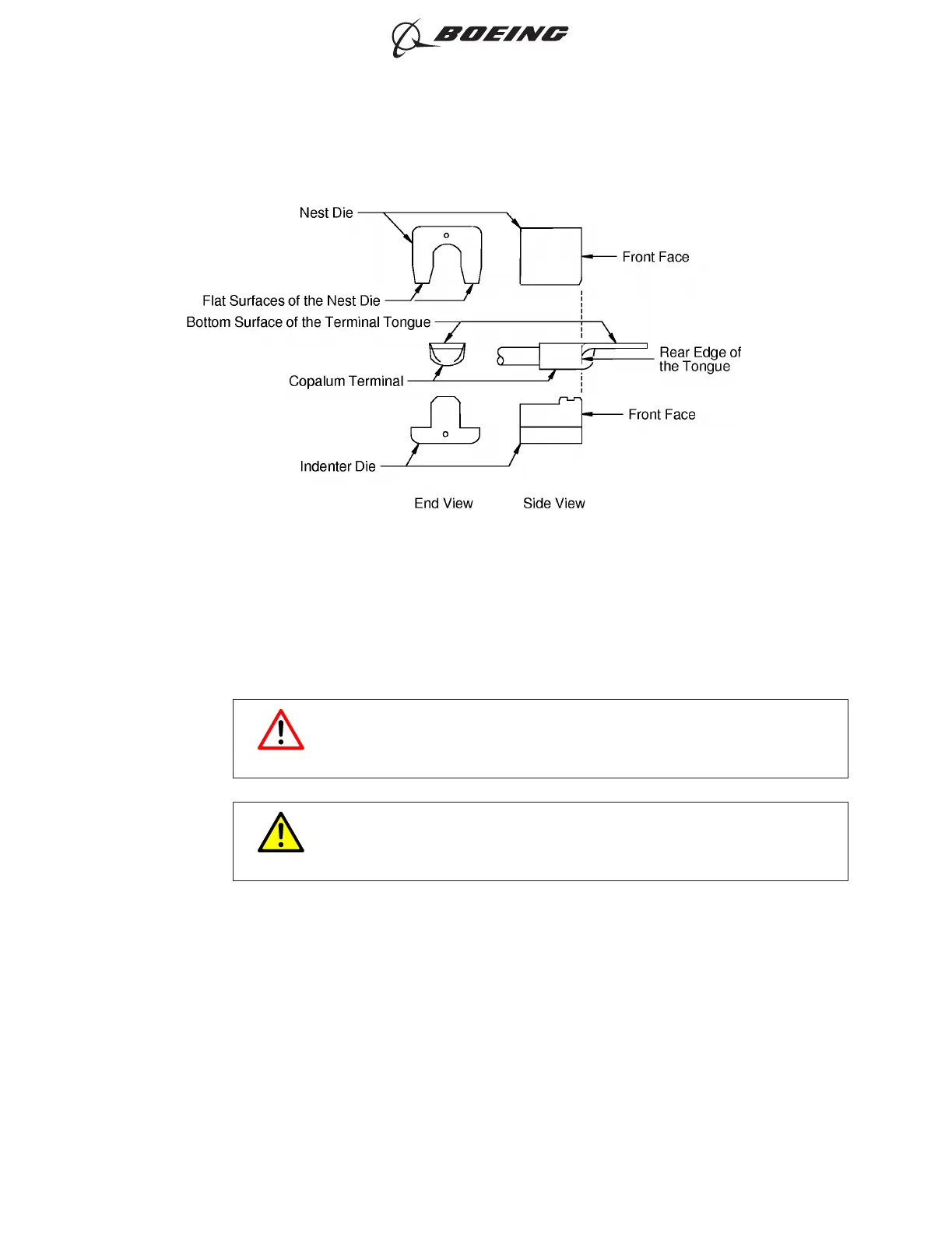

ALIGNMENT OF THE TERMINAL LUG IN THE CRIMP DIES
Figure 17
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 29
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
