Boeing 707 - Page 623

2448495 S00061545659_V1

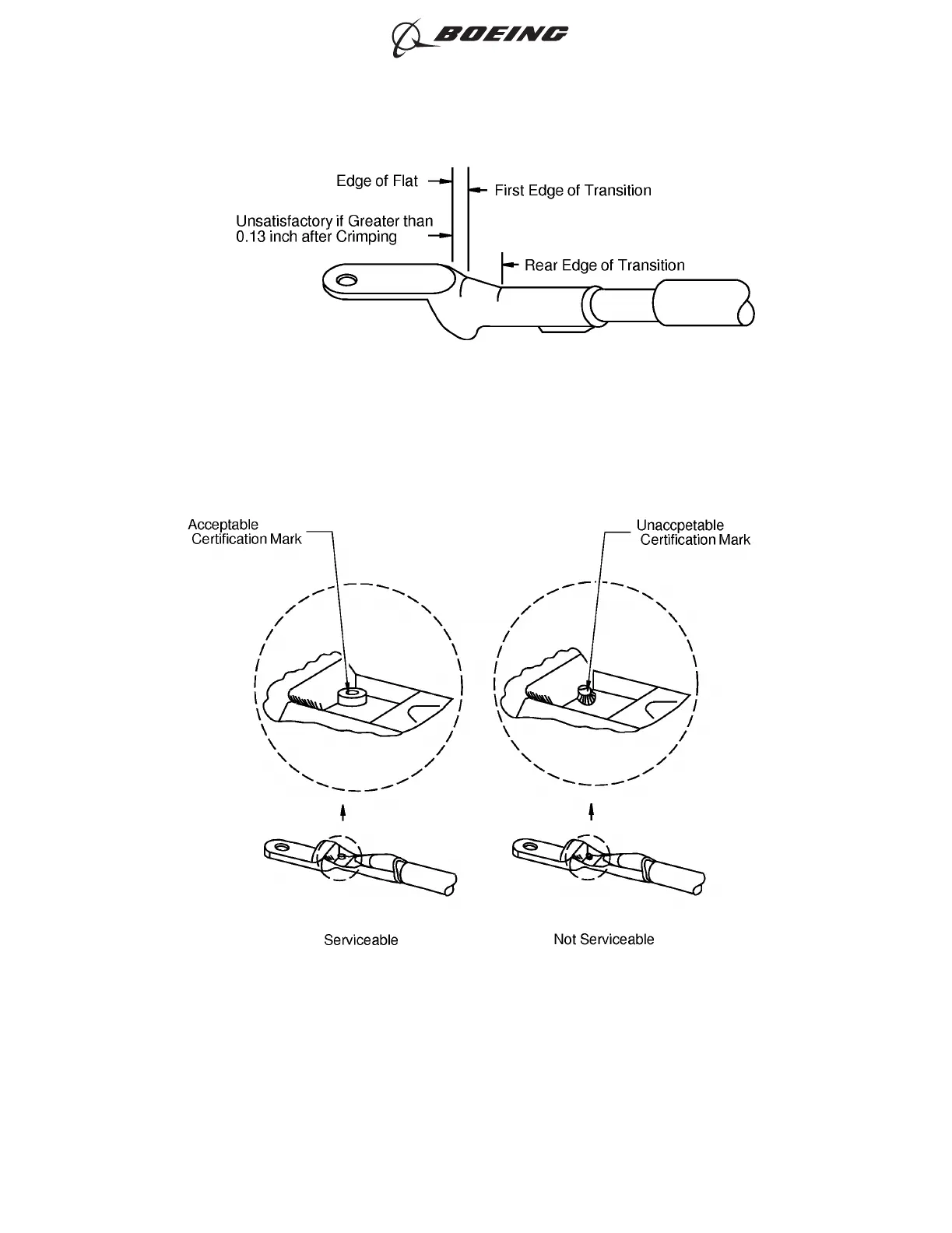

POSITION OF THE CRIMP AREA ON THE TERMINAL LUG
Figure 20
2448496 S00061545660_V1
CERTIFICATION MARK ON A CRIMPED TERMINAL LUG
Figure 21
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 31
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
