LATCH PIN
RAM PISTON
PIVOT PIN
YOKE
2528874 S0000597277_V1

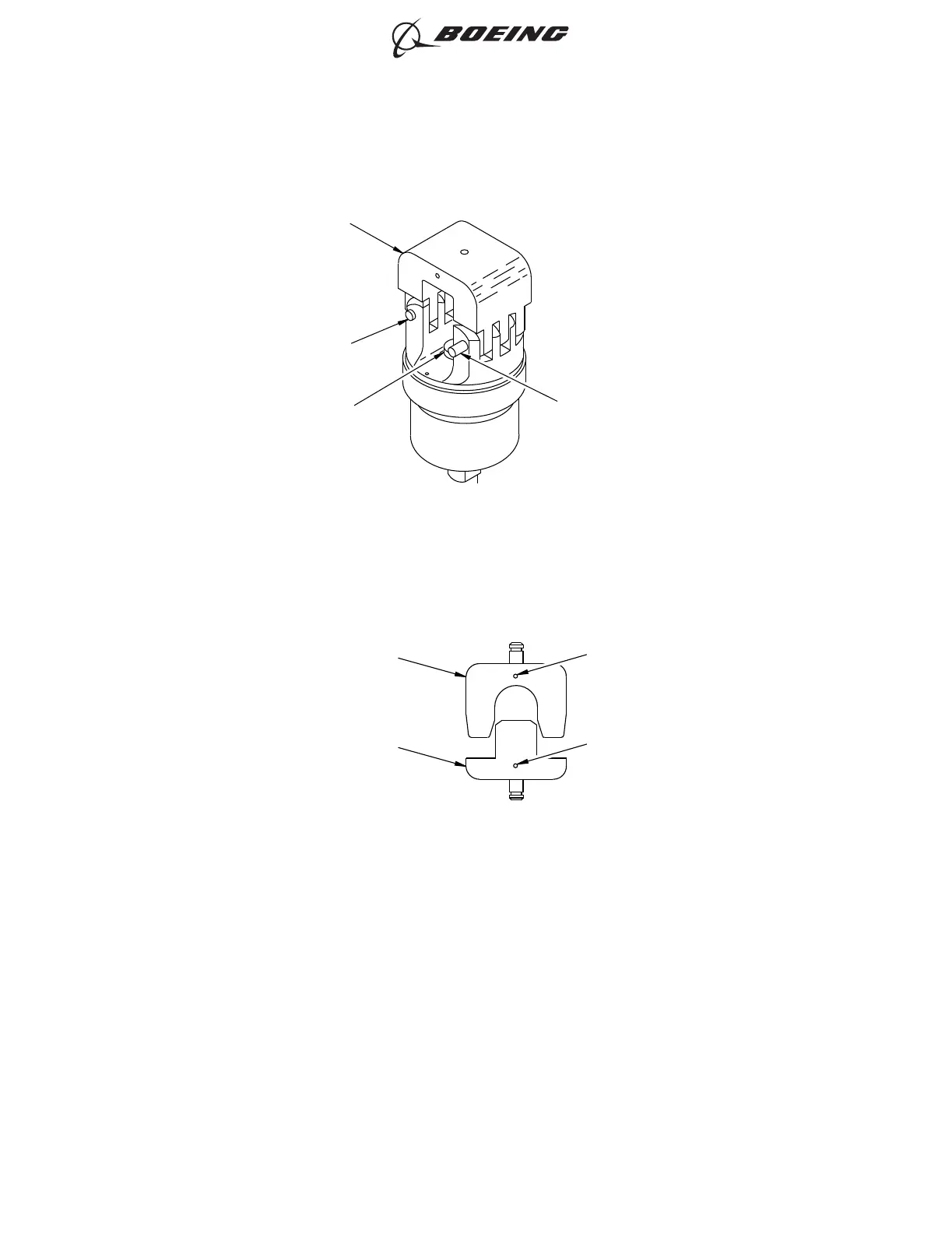

Crimp Tool Head
Figure 16
AM P
ALIGNMENT MARK
NEST DIE
ALIGNMENT MARK
IDENTER DIE
MFD IN U.S .A .
MFD IN U.S .A .
AM P
P/N X XX XX
P/N X XX XX
2528877 S0000597278_V1
Alignment Marks of the Nest and Indenter Dies
Figure 17
ASSEMBLY OF BACT12BC TE ALUMINUM TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-08
Page 14
Oct 15/2017D6-54446
