Table 3
ALTERNATIVE CRIMP TOOLS
Specified Crimp Tool Alternative Crimp Tool
Part Number Supplier Part Number Supplier
90131-2 AMP (Tyco) 90131-4 AMP (Tyco)
90204-4 AMP (Tyco) 91507-1 AMP (Tyco)
(1) Remove 5/32 inch ±1/32 inch of the insulation from the end of the wire.
(2) Make a selection of a crimp tool from Table 2.
(3) Fully open the handles of the crimp tool.
(4) Put the insulation barrel of the receptacle into the front side of the crimp tool so that the locator
slot of the receptacle is pointed toward the top of the tool.
NOTE: The front side of the crimp tool is marked with the crimp tool part number.
Refer to Figure 1 and Figure 2.
(5) To hold the receptacle in position, move the handles of the crimp tool together until one click is
made.

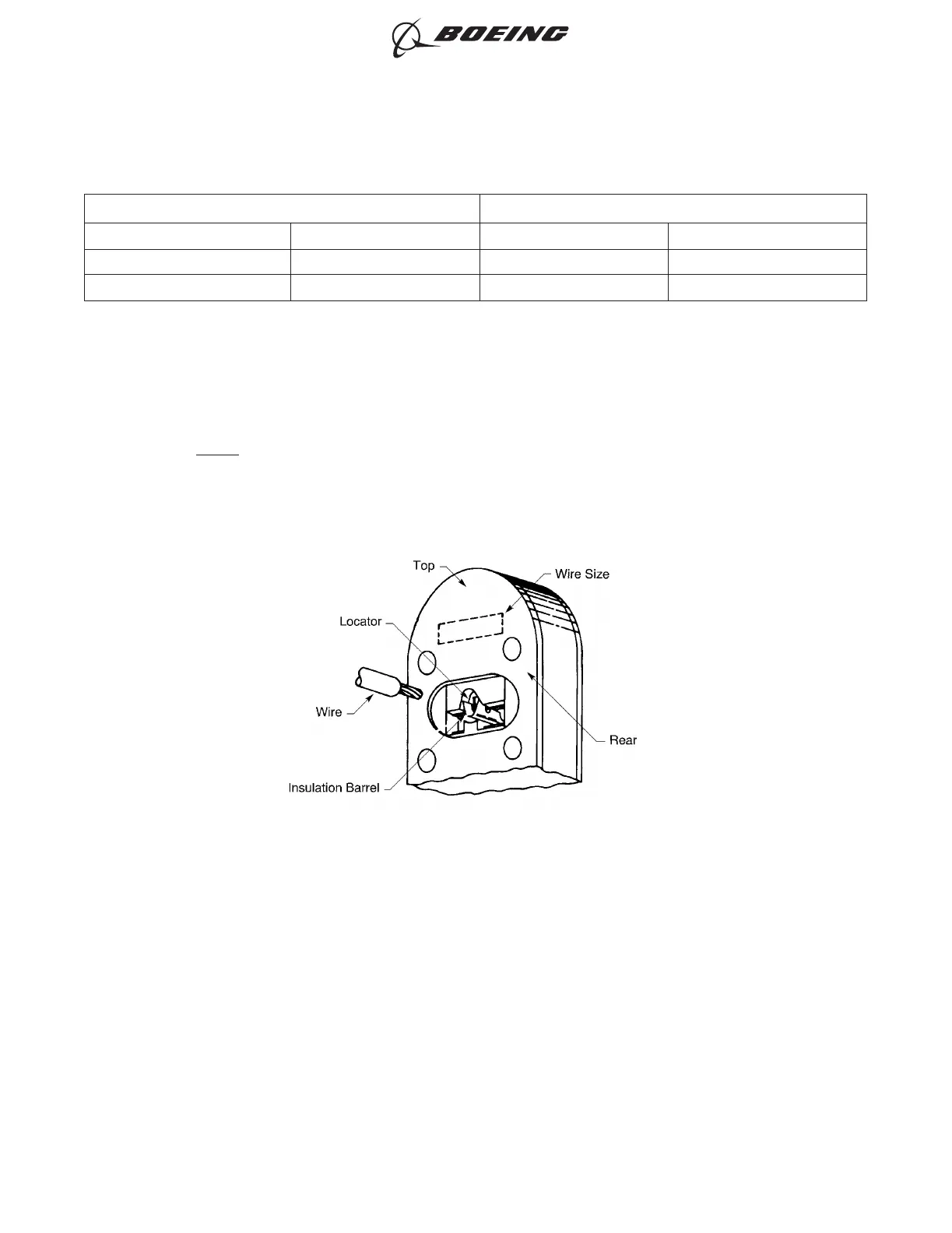

POSITION OF THE RECEPTACLE IN THE CRIMP TOOL
Figure 2
AMP PRINTED CIRCUIT BOARD TERMINAL RECEPTACLES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-17
Page 4
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
