• Figure 4
• Subject 20-10-15 for the procedure to install a solder sleeve without an integral wire.
Make sure that:
• The rear edge of the solder ring is approximately 0.1 inch from the end of the cable jacket
• The rear seal ring does not make an overlap with the shield
• The heat is applied at the end of the solder sleeve that is on the shield material first
• The heat applied at the other end of the solder sleeve to melt it around the cable jacket
• The heat applied at the center of the solder sleeve and the cable is turned in the reflector
until the solder melts.
NOTE: A change of the color of the sleeve is permitted if the solder joint can be seen.
(4) Carefully pull the other end of the shield material toward the other end of the splice assembly.
Refer to Figure 5.
Make sure that:
• The shield material is tight against the circumference of the splice assembly
• The end of the shield material is not farther than 0.04 inch from the end of cable jacket
• The shield material does not make an overlap with the cable jacket.

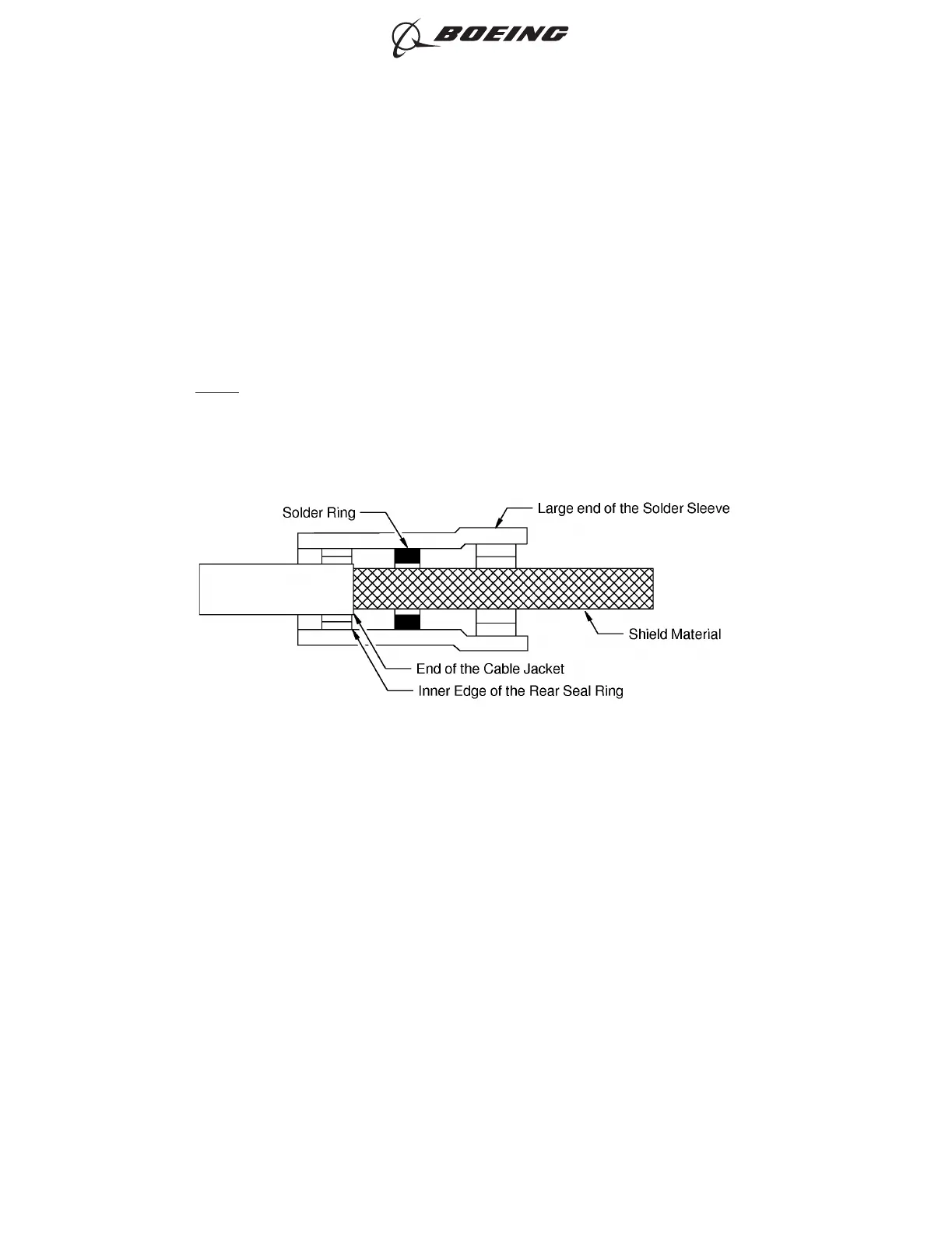

POSITION OF THE SOLDER SLEEVE ON THE SHIELD MATERIAL
Figure 4
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 23
Oct 15/2020D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
