4.

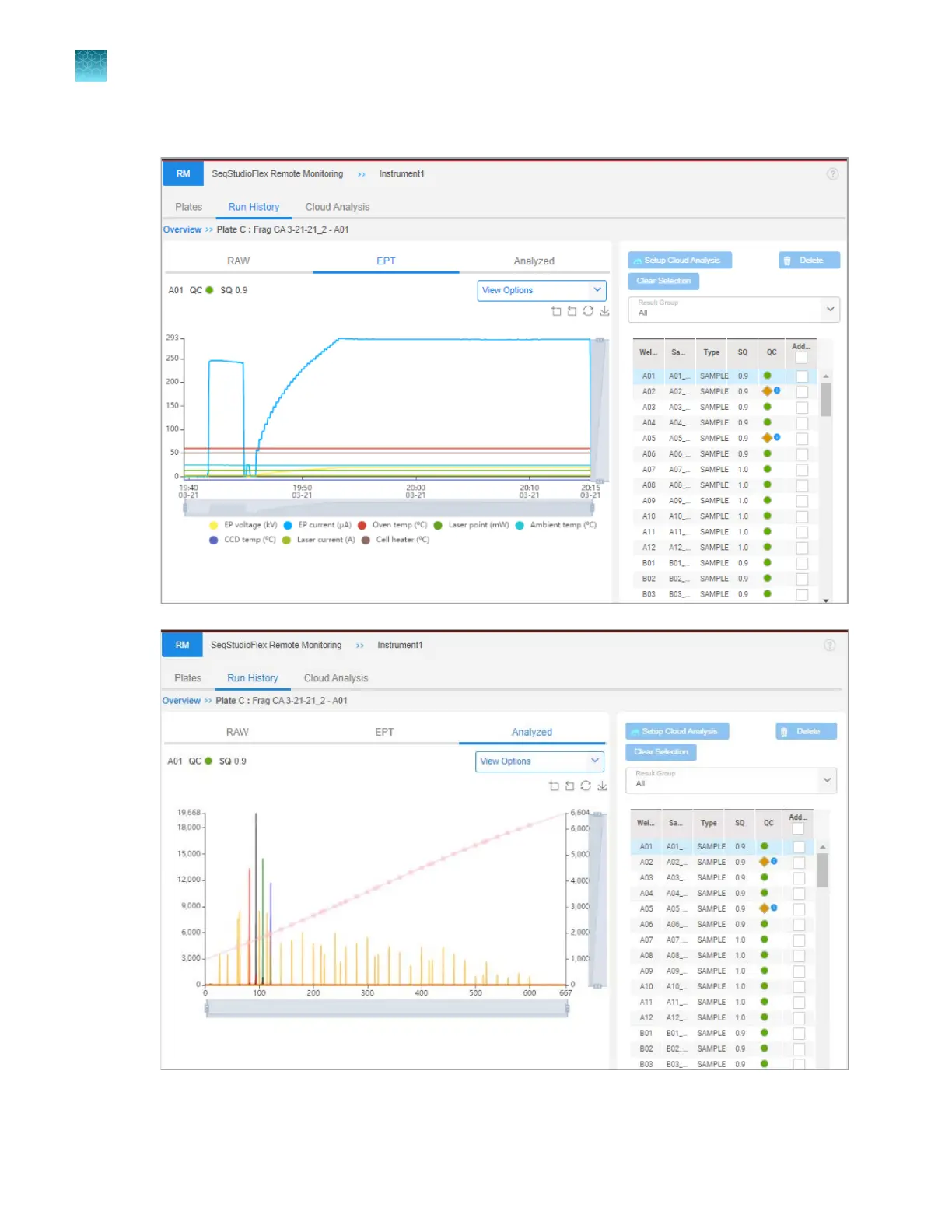

As needed, click the EPT (electrophoresis and telemetry) or Analyzed tabs.

Chapter 8 Use the Remote Monitoring software to monitor runs, view results, and use cloud analysis

View results in the Remote Monitoring software

8

200

SeqStudio

™

Flex Series Genetic Analyzer with Instrument Software v1.0 User Guide
