Instrument interior components
Figure 2 and Figure 3 are provided below for reference in this section. See also page 376 and “Parts of
the capillary array” on page 372.
9
8
10
6
7
1
4
3
2
5

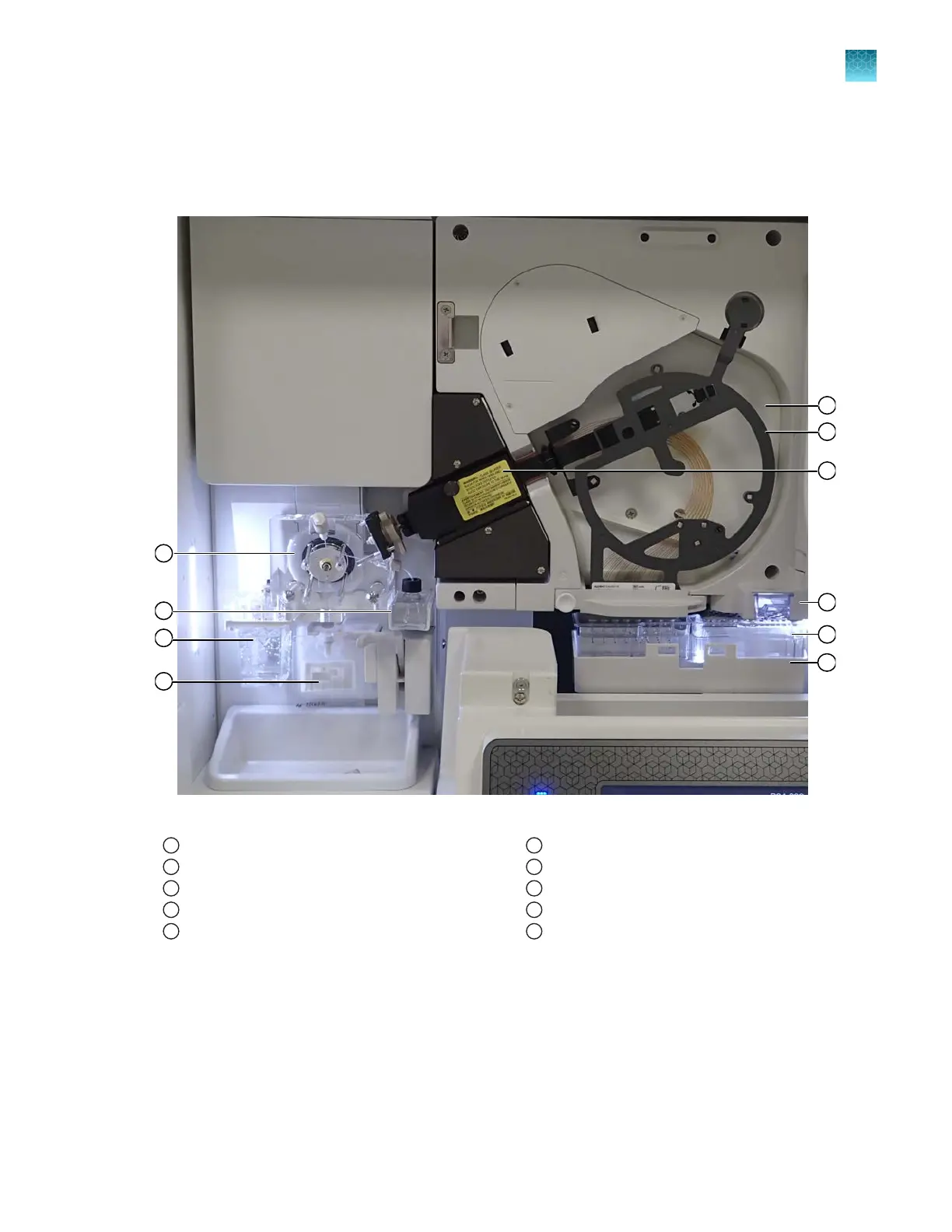

Figure 2 Instrument interior (includes the pump compartment and capillary array compartment)
1
Polymer delivery pump (PDP)
2
Water trap waste container
3
Anode buer container (ABC)
4
Polymer or conditioning pouch
5
Oven compartment (the oven door is open and not
shown)
6
Capillary array
7
Detection cell heater (with the door closed)
8
Oven condensation reservoir
9
Cathode buer container (CBC)
10
CBC autosampler
