Maintain the pump (wizards)
IMPORTANT! Wear appropriate protection, including gloves, laboratory goggles, and coat whenever
you work with the fluids used on this instrument, or parts that may come into contact with these fluids.
IMPORTANT! T
o minimize background fluorescence, use clean, powder-free gloves whenever you
handle the pump assembly or any item in the polymer path.
Parts of the polymer delivery pump
1
2
3
4
5
9
10
7
8
6

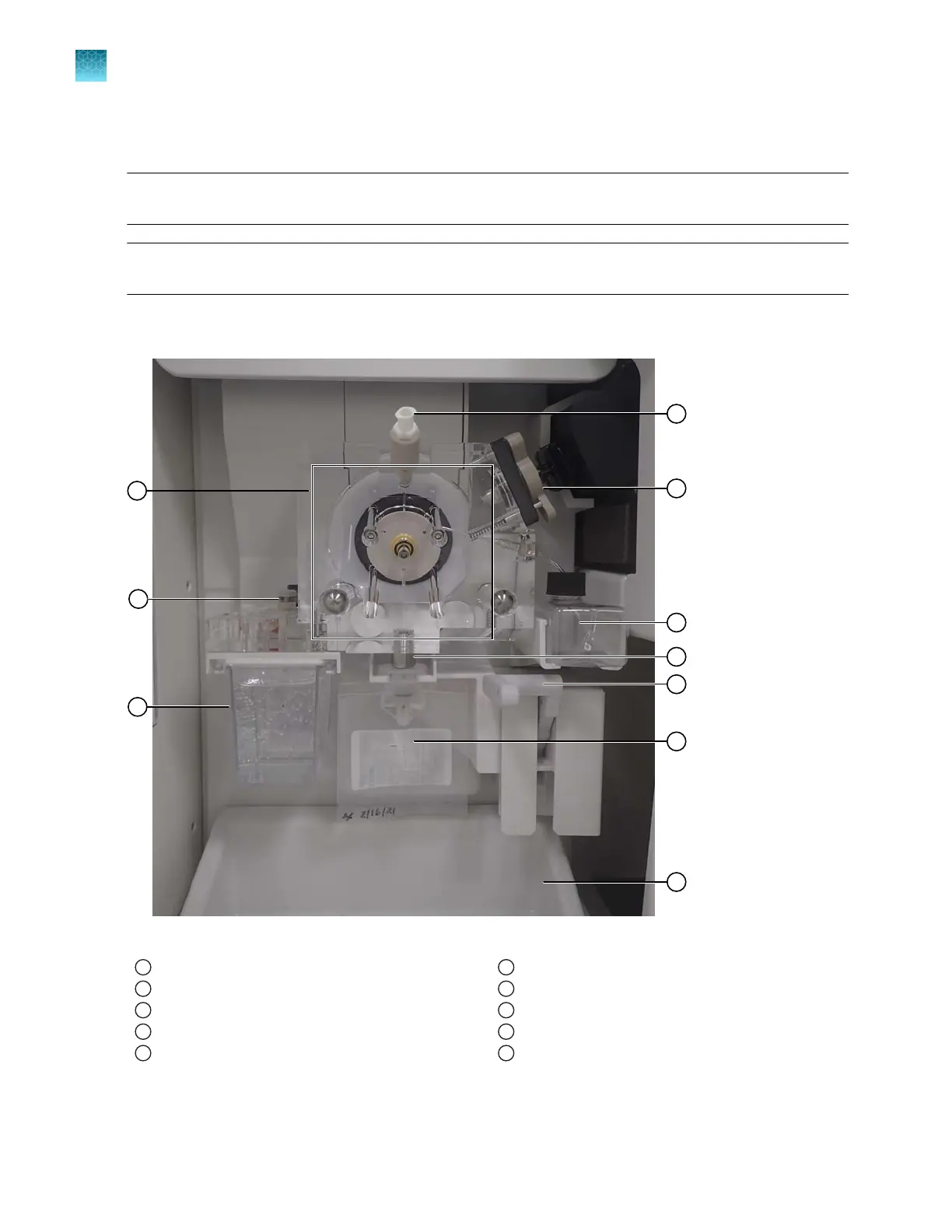

Figure 22 Polymer delivery pump (PDP)
1
Polymer block
2
Buer-pin valve
3
Anode buer container (ABC)
4
Port used to flush the wat
er trap
5
Array port lock
6
Water trap waste container
7
Check valve fitting
8
Polymer pouch lever
9
Polymer pouch
10
Drip tray
