Parts of the capillary array
6
4
5
321

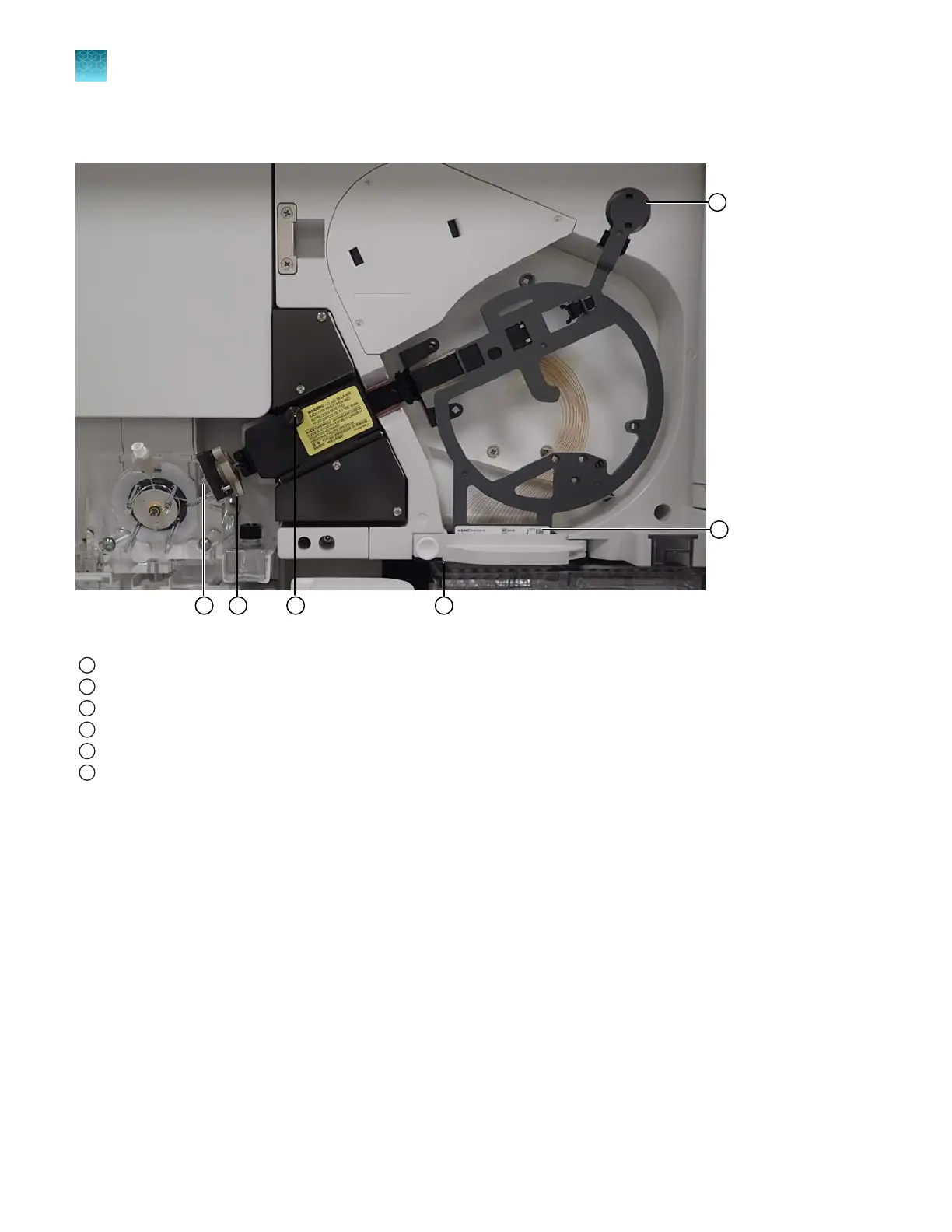

Figure 20 Capillary array with detection cell heater door closed
1
Capillary array tip in array port
2
Array port lock
3
Detection cell heater door fastener
4
Snap-pin connector and capillary array latch arm
5
Header-end of capillary array
6
RFID label tab
