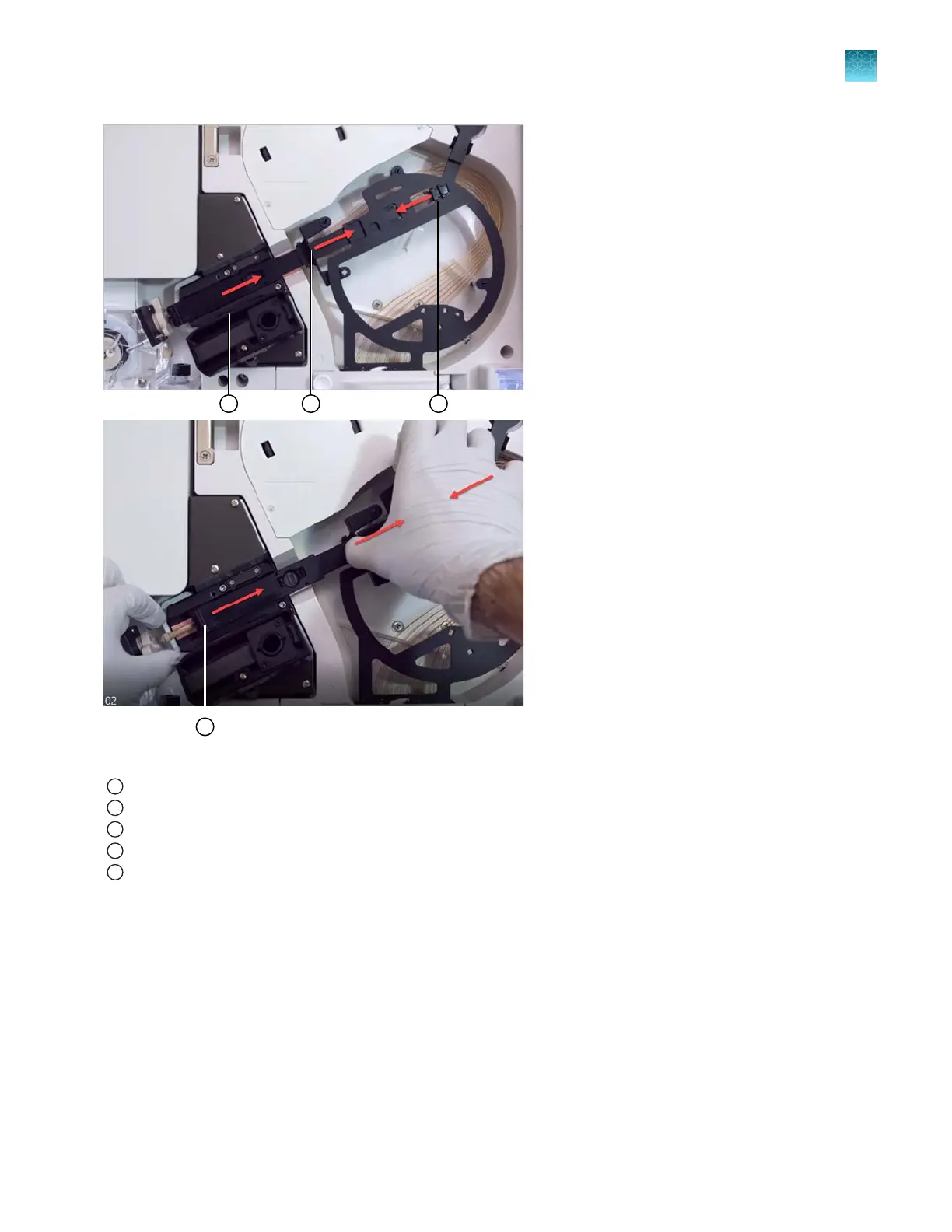

Figure 21 Capillary array with detection cell heater door open, unretracted (top) and retracted (bottom) positions
1
Retractable end of capillary array that protects the tip (slides to the right when you squeeze tab 1 and tab 2 toward each other)
2
Tab 1
3
Tab 2
4
Additional tab that you can grasp when removing the capillary array from the instrument
5
End retracted
