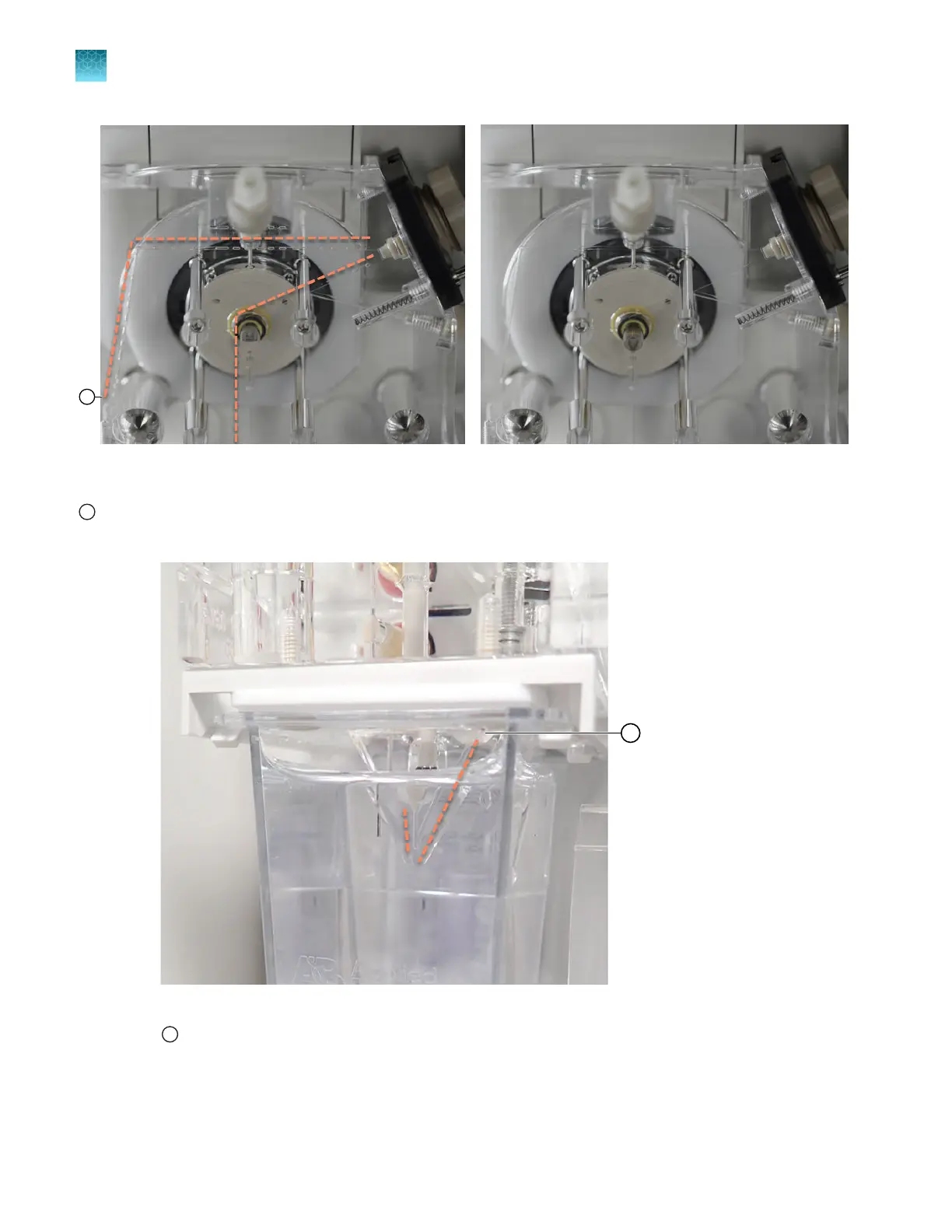

Figure 23 Examine pump channels for bubbles (the left image includes bubbles, the right image does not
include bubbles)
1
To anode channels
Dotted lines are shown above and to the left of channels that can contain bubbles
1
Figure 24 Examine anode channels for bubbles
1
To pump channels
Dotted lines are shown to the left and right sides of the channels that can contain bubbles. No bubbles are shown in
the image.
