Thermo Scientific appliedbiosystems SeqStudio Flex Series - Page 532

86.5 cm (34 in)
70 cm (27.6 in)
67.5 cm (26.6 in)

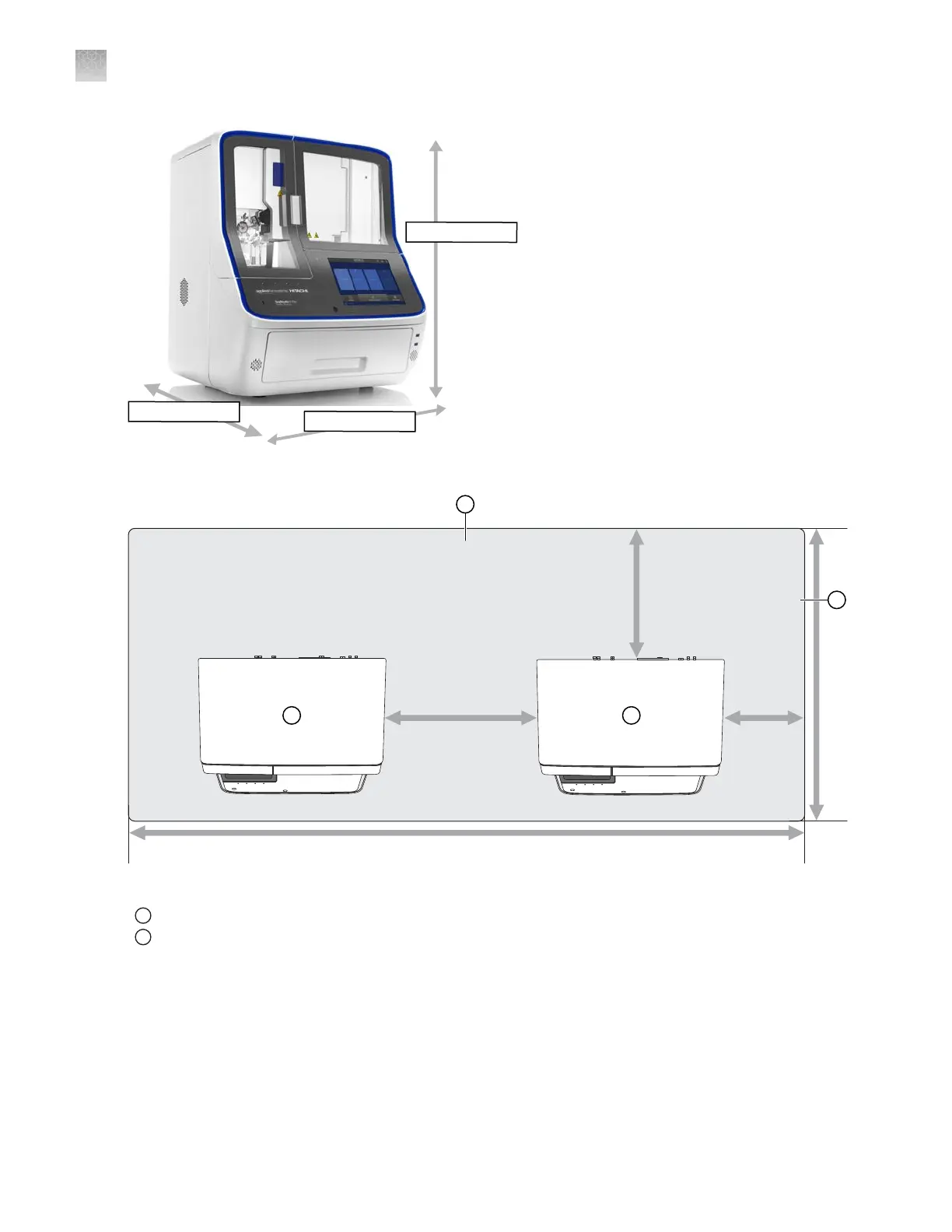

Figure 95 Instrument dimensions
1
3
36 cm (14 in.)
107 cm (42 in.)
25 cm (10 in.)
18 cm (7 in.)
102 cm (40 in.)
1
2
Figure 96 Bench layout, top view
1
Wall
2
Instrument
Approximately 60 cm (24 inches) of space is required above the instrument.
Appendix C Instrument specifications
Instrument dimensions and clearance
C
532
SeqStudio
™
Flex Series Genetic Analyzer with Instrument Software v1.0 User Guide
