5 Commands by Subsystem
:HWERegister:CONDition (Hardware Event Condition Register)
(see page 658)
Query Syntax
:HWERegister:CONDition?
The :HWERegister:CONDition? query returns the integer value contained in
the Hardware Event Condition Register.
Return Format
<value><NL>
<value> ::= integer in NR1 format.
See Also • "Introduction to Root (:) Commands" on page 124
• ":CHANnel<n>:PROTection" on page 203
• ":EXTernal:PROTection" on page 225
• ":OPEE (Operation Status Enable Register)" on page 145
• ":OPERegister[:EVENt] (Operation Status Event Register)" on page 149
• ":OVLenable (Overload Event Enable Register)" on page 151
7R+:(ELWLQ
2SHUDWLRQ6WDWXV
&RQGLWLRQ5HJLVWHU

25
+:(5HJLVWHU&21'LWLRQ"
+DUGZDUH(YHQW&RQGLWLRQ5HJLVWHU
+:(HQDEOH
+:(HQDEOH"
+DUGZDUH(YHQW(QDEOH0DVN5HJLVWHU


+:(5HJLVWHU>(9(1W@"
+DUGZDUH(YHQW(YHQW5HJLVWHU
3//
/RFNHG
3//
/RFNHG


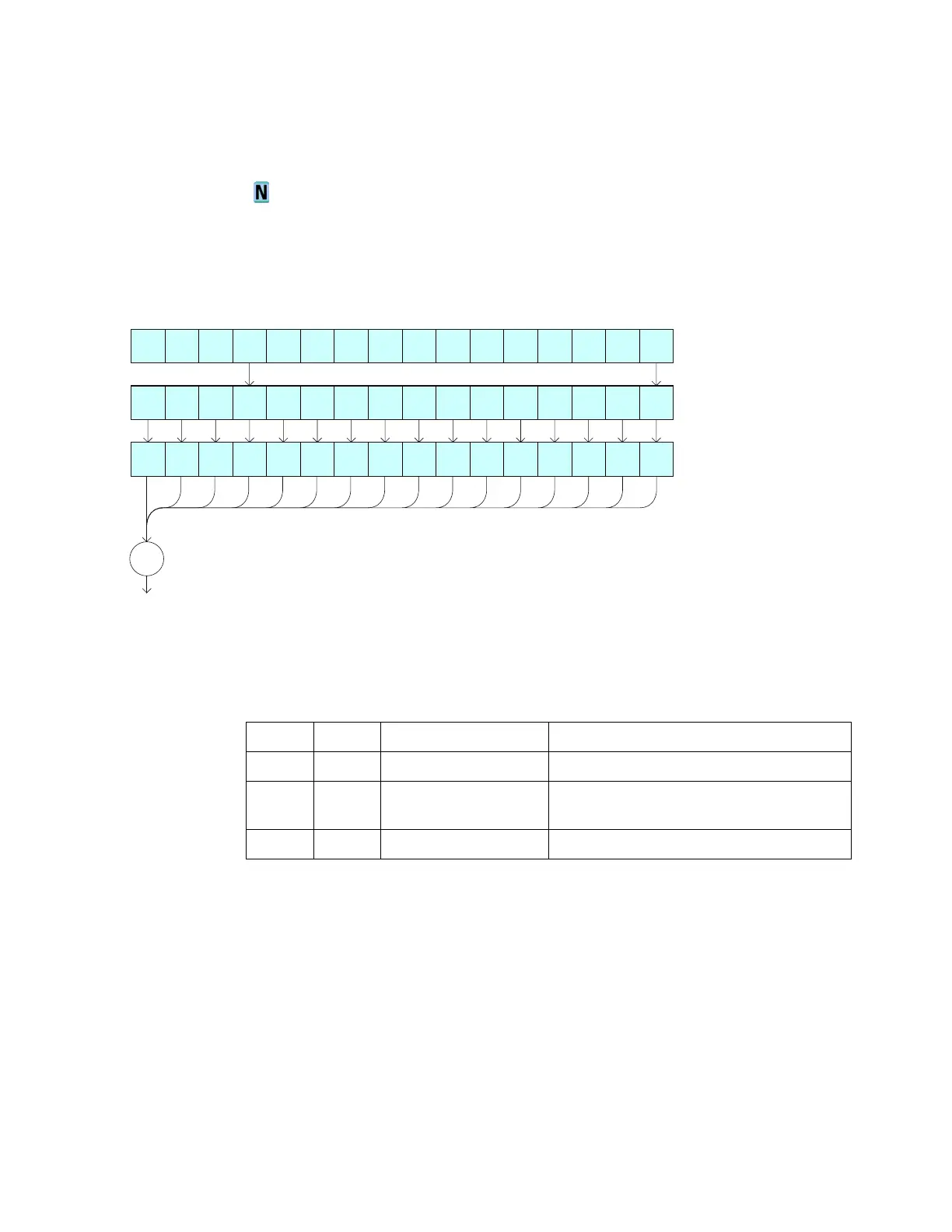

Table 36 Hardware Event Condition Register
Bit Name Description When Set (1 = High = True), Indicates:
15-13 --- --- (Not used.)
12 PLL
Locked
PLL Locked This bit is for internal use and is not intended
for general use.
11-0 --- --- (Not used.)
