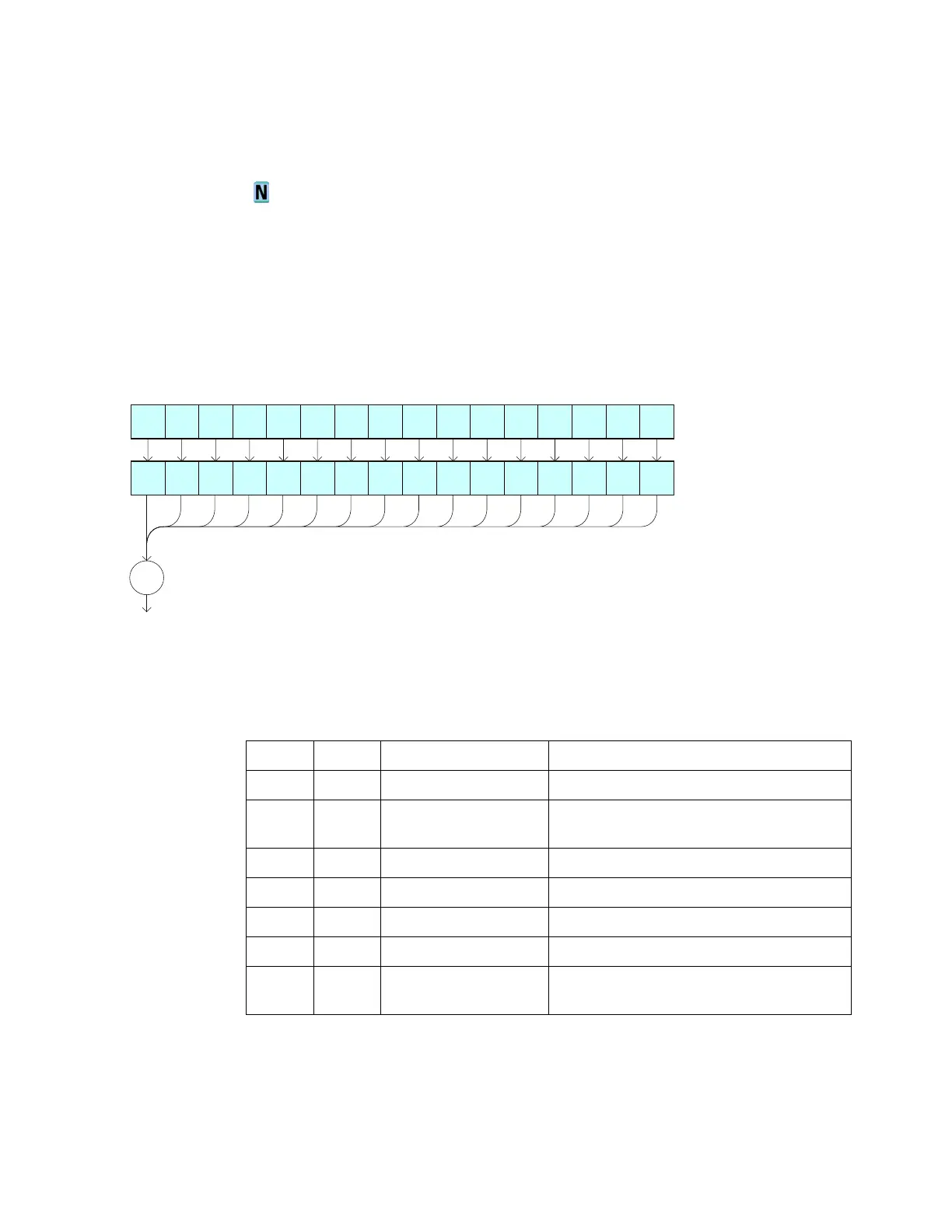

:MTEenable (Mask Test Event Enable Register)
(see page 658)
Command Syntax
:MTEenable <mask>
<mask> ::= 16-bit integer
The :MTEenable command sets a mask in the Mask Test Event Enable
register. Set any of the following bits to "1" to enable bit 9 in the
Operation Status Condition Register and potentially cause an SRQ (Service
Request interrupt to be generated.
Query Syntax
:MTEenable?
The :MTEenable? query returns the current value contained in the Mask
Test Event Enable register as an integer number.
7R07(ELWLQ
2SHUDWLRQ6WDWXV
&RQGLWLRQ5HJLVWHU

25
07(HQDEOH
07(HQDEOH"
0DVN7HVW(YHQW(QDEOH0DVN5HJLVWHU


07(5HJLVWHU>(9(1W@"
0DVN7HVW(YHQW(YHQW5HJLVWHU
)DLO
&RP
SOHWH
$XWR
0DVN
6WDUWHG
Table 38 Mask Test Event Enable Register (MTEenable)
Bit Name Description When Set (1 = High = True), Enables:
15-11 --- --- (Not used.)
10 Auto
Mask
Auto Mask Created Auto mask creation completed.
9 --- --- (Not used.)
8 Started Mask Testing Started Mask testing started.
7-2 --- --- (Not used.)
1 Fail Mask Test Fail Mask test failed.
0Comple
te
Mask Test Complete Mask test is complete.
