Setting Up 2

Agilent InfiniiVision 5000 Series Oscilloscopes Programmer's Guide 33

Step 2. Connect and set up the oscilloscope

The 5000 Series oscilloscope has three different interfaces you can use for

programming: USB (device), LAN, or GPIB.

All three interfaces are "live" by default, but you can turn them off if

desired. To access these settings press the Utility key on the front panel,

then press the I/O softkey, then press the Control softkey.

Using the USB (Device) Interface

1 Connect a USB cable from the controller PC's USB port to the "USB

DEVICE" port on the back of the oscilloscope.

This is a USB 2.0 high- speed port.

2 On the oscilloscope, verify that the controller interface is enabled:

a Press the Utility button.

b Using the softkeys, press I/O and Control.

c Ensure the box next to USB is selected (). If not (), use the

Entry knob to select USB; then, press the Control softkey again.

Using the LAN Interface

1 If the controller PC isn't already connected to the local area network

(LAN), do that first.

2 Get the oscilloscope's network parameters (hostname, domain, IP

address, subnet mask, gateway IP, DNS IP, etc.) from your network

administrator.

3 Connect the oscilloscope to the local area network (LAN) by inserting

LAN cable into the "LAN" port on the back of the oscilloscope.

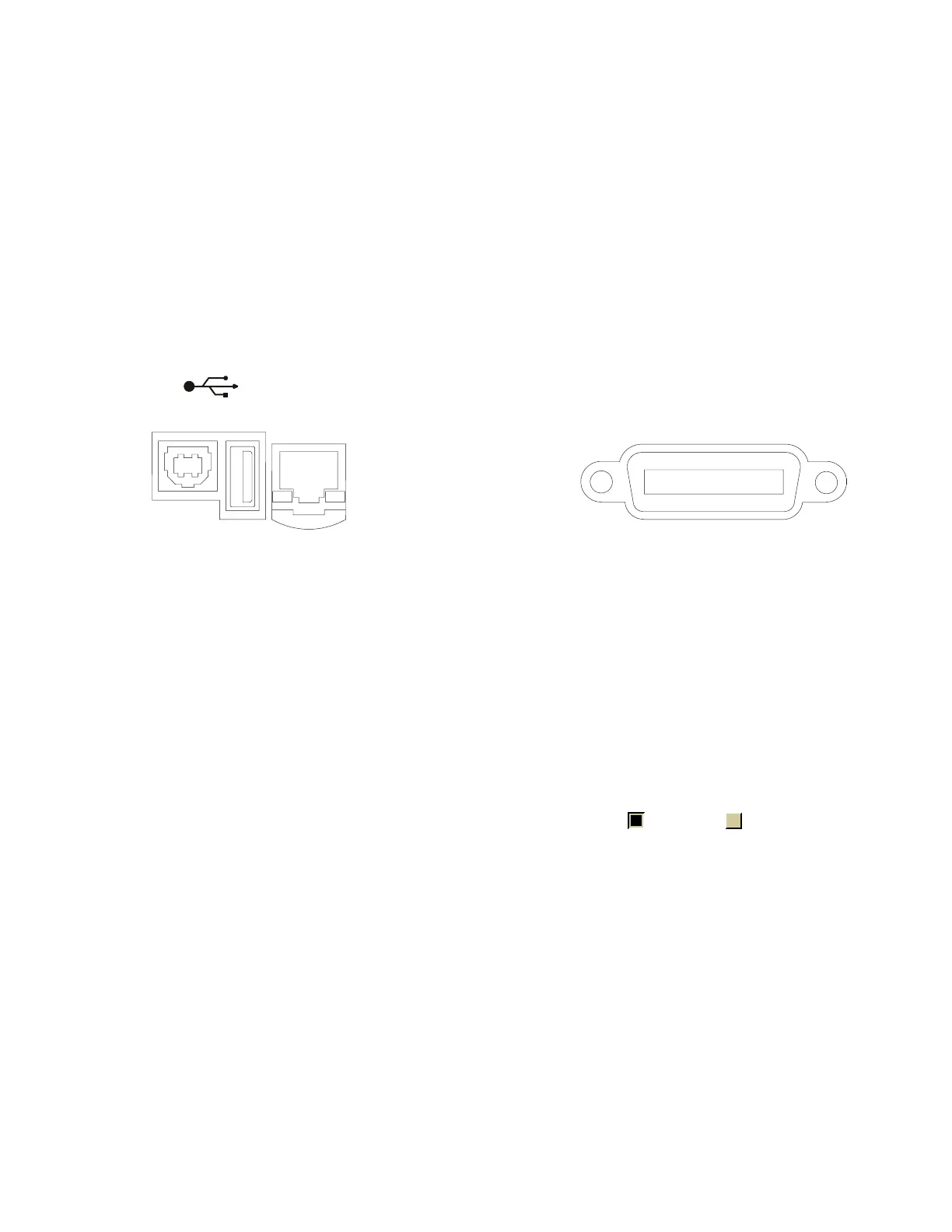

Figure 1 Control Connectors on Rear Panel

86%

'(9,&(

+267

/$1

121$8720',;

*3,%
