:MTERegister[:EVENt] (Mask Test Event Event Register)
(see page 658)
Query Syntax
:MTERegister[:EVENt]?
The :MTERegister[:EVENt]? query returns the integer value contained in
the Mask Test Event Event Register and clears the register.
Return Format
<value><NL>
<value> ::= integer in NR1 format.
See Also • "Introduction to Root (:) Commands" on page 124
• ":CHANnel<n>:PROTection" on page 203
• ":EXTernal:PROTection" on page 225

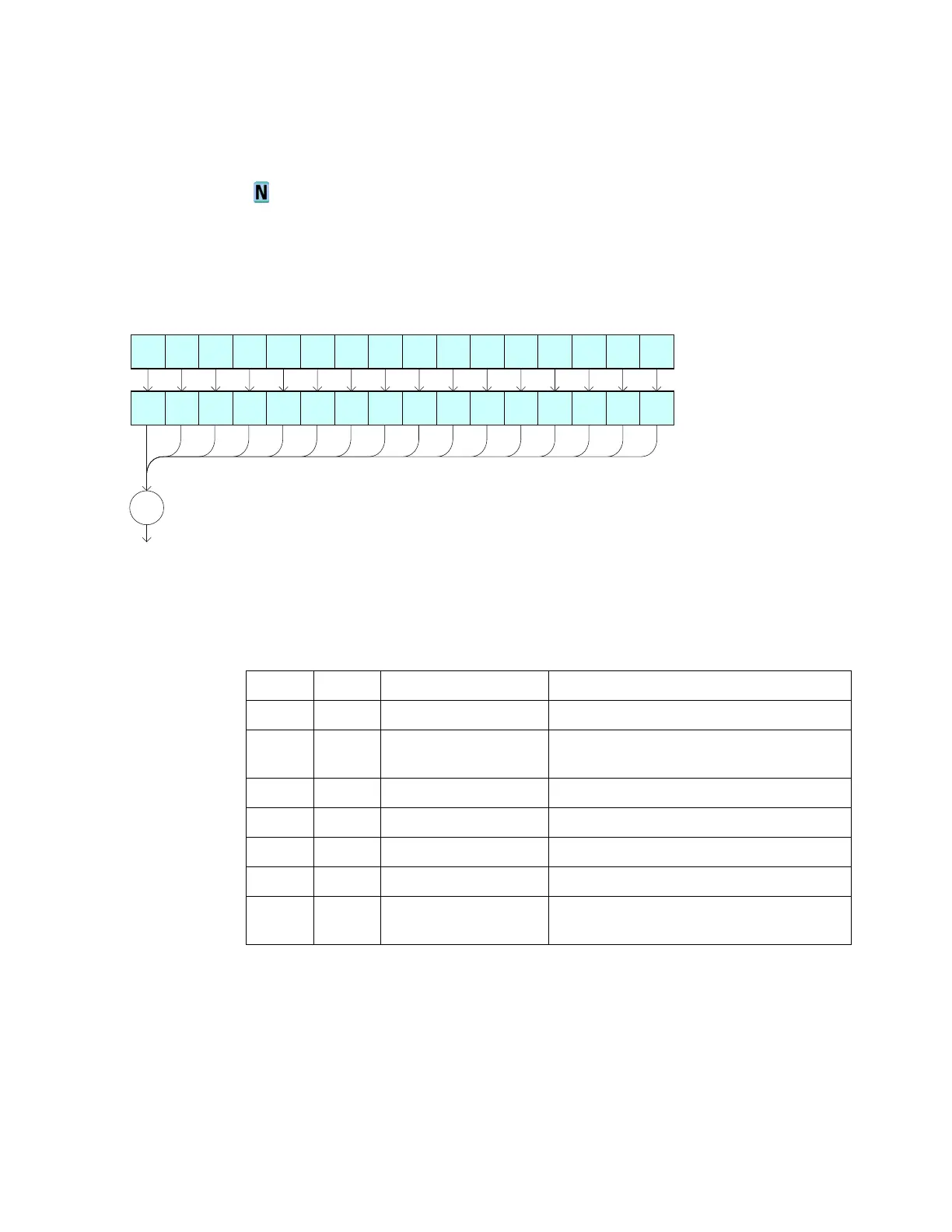

7R07(ELWLQ
2SHUDWLRQ6WDWXV
&RQGLWLRQ5HJLVWHU

25
07(HQDEOH
07(HQDEOH"
0DVN7HVW(YHQW(QDEOH0DVN5HJLVWHU


07(5HJLVWHU>(9(1W@"
0DVN7HVW(YHQW(YHQW5HJLVWHU
)DLO
&RP
SOHWH
$XWR
0DVN
6WDUWHG
Table 39 Mask Test Event Event Register
Bit Name Description When Set (1 = High = True), Indicates:
15-11 --- --- (Not used.)
10 Auto
Mask
Auto Mask Created Auto mask creation completed.
9 --- --- (Not used.)
8 Started Mask Testing Started Mask testing started.
7-2 --- --- (Not used.)
1 Fail Mask Test Fail The mask test failed.
0Comple
te
Mask Test Complete The mask test is complete.
