(e) Crimp the splice.
(10) Do Step 6.D.(9) again to assemble the other end of the butt splice.
(11) For an AWG 10 and smaller wire:
(a) Align the center of the sleeve with the center of the splice. Refer to Figure 33.
Make sure that the sleeve makes a 0.88 inch minimum overlap with the wire insulation on
each end of the splice assembly.
(b) Shrink the sleeve into position. Refer to Subject 20-10-14.
(12) For an AWG 8 and larger wire:
(a) Align the center of the short sleeve with the center of the splice. Refer to Figure 34.
Make sure that the short sleeve makes a 0.13 inch minimum overlap with the wire insulation
on each end of the splice assembly.

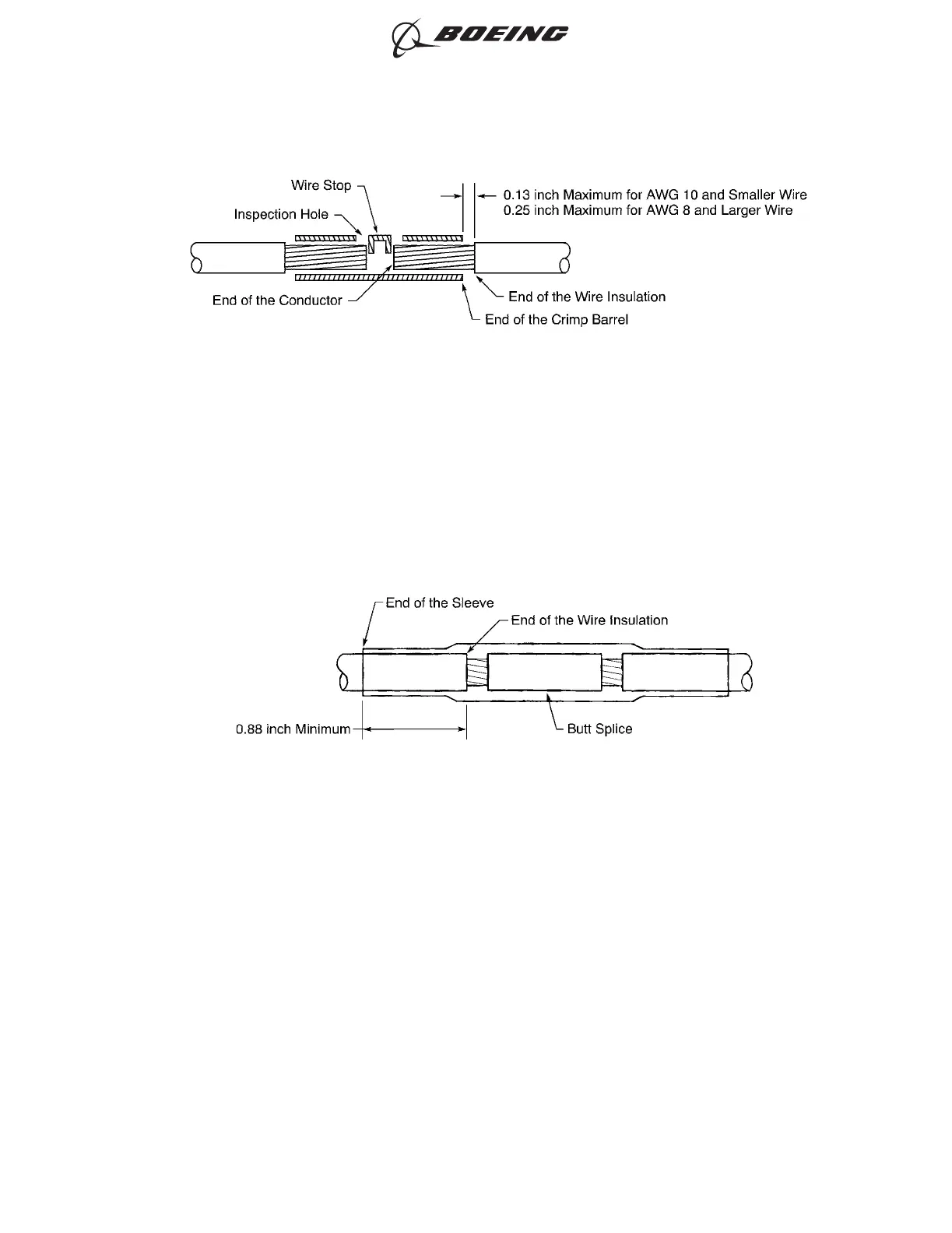

POSITION OF THE WIRE IN THE SPLICE
Figure 32
POSITION OF THE SLEEVE ON THE SPLICE ASSEMBLY WITH AWG 10 AND SMALLER WIRE
Figure 33
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 75
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
