(4) Tightly wind one more layer of the tape around the forward end of the transition barrel of the first
terminal lug. Refer to Figure 27.
(5) Wind a length of the tape around the insulation sleeve of the second terminal lug one tape width
from the forward end of the insulation sleeve at the rear end of the tongue of the lug. Refer to
Figure 28.

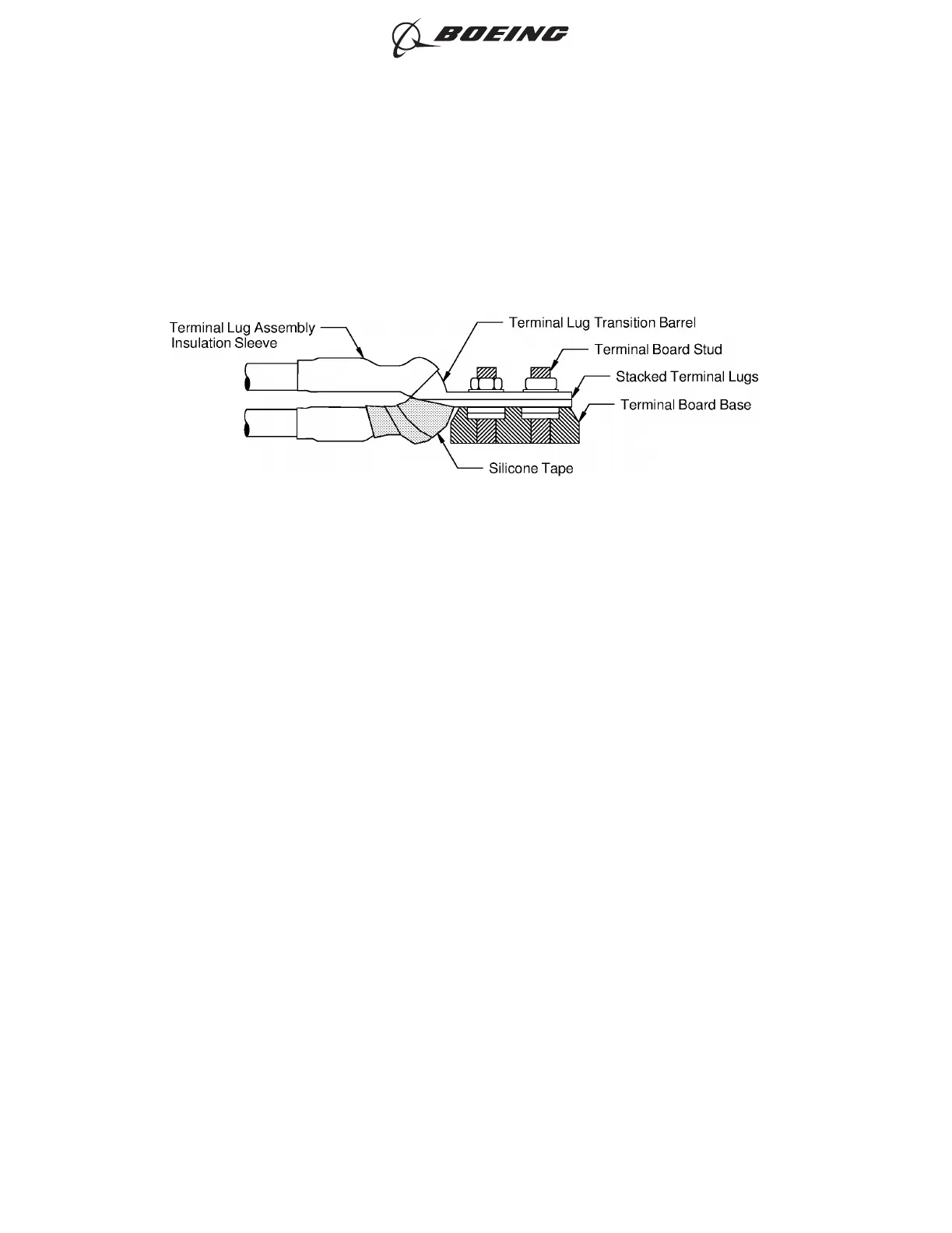

POSITION OF THE TAPE ON THE TRANSITION BARREL OF THE FIRST TERMINAL LUG
Figure 27
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 34
Jun 15/2018D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
