(17) Put the shield overbraid on the sleeve. Refer to Figure 273.
Make sure that on both sides of the splice assembly, the shield overbraid makes an overlap on:
• The folded back shields
• The edges of the outer cable jacket.
(18) Put the two BACS13CT3N solder sleeves on the shield overbraid. Refer to Figure 274 and Figure
275.
Make sure that for the solder ring in each solder sleeve:

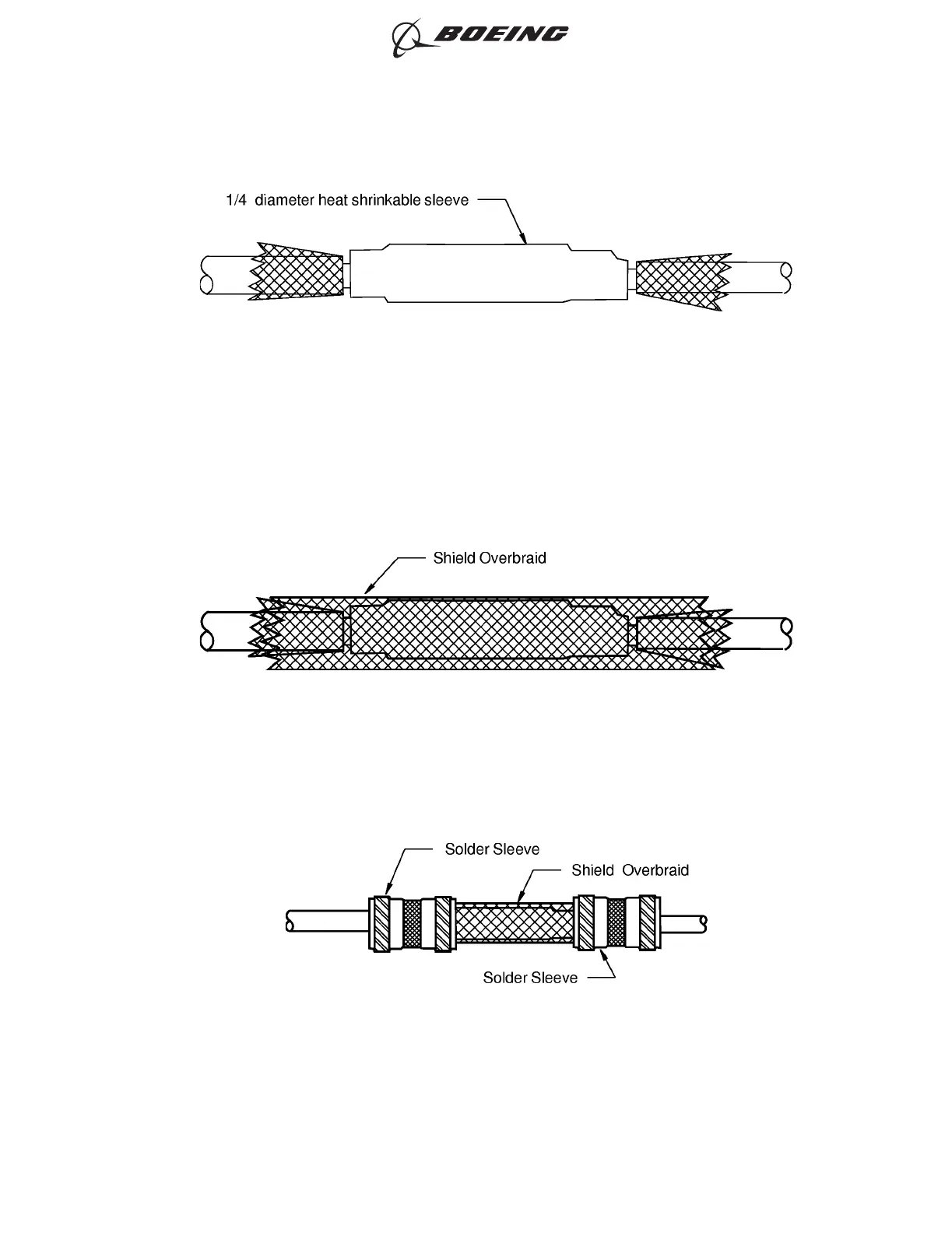

POSITION OF THE SMALLER HEAT SHRINKABLE SLEEVE
Figure 272
INITIAL POSITION OF THE SHIELD OVERBRAID
Figure 273
POSITION OF THE SOLDER SLEEVES
Figure 274
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 300
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
