(i) Put the terminal lug and wire in the nest die. Refer to:
1) Figure 2 for the position of the terminal lug in the crimp tool.
2) Figure 3 for the alignment of the terminal lug in the dies.
Make sure that the bottom surface of the tongue is against the side of the die.
INDENTER DIE
ALIGNMENT MARK
PIN
NEST DIE
YOKE
ALIGNMENT MARK
TONGUE OF THE TERMINAL LUG
AGAINST THE SIDE OF THE DIE
2528267 S0000597208_V1

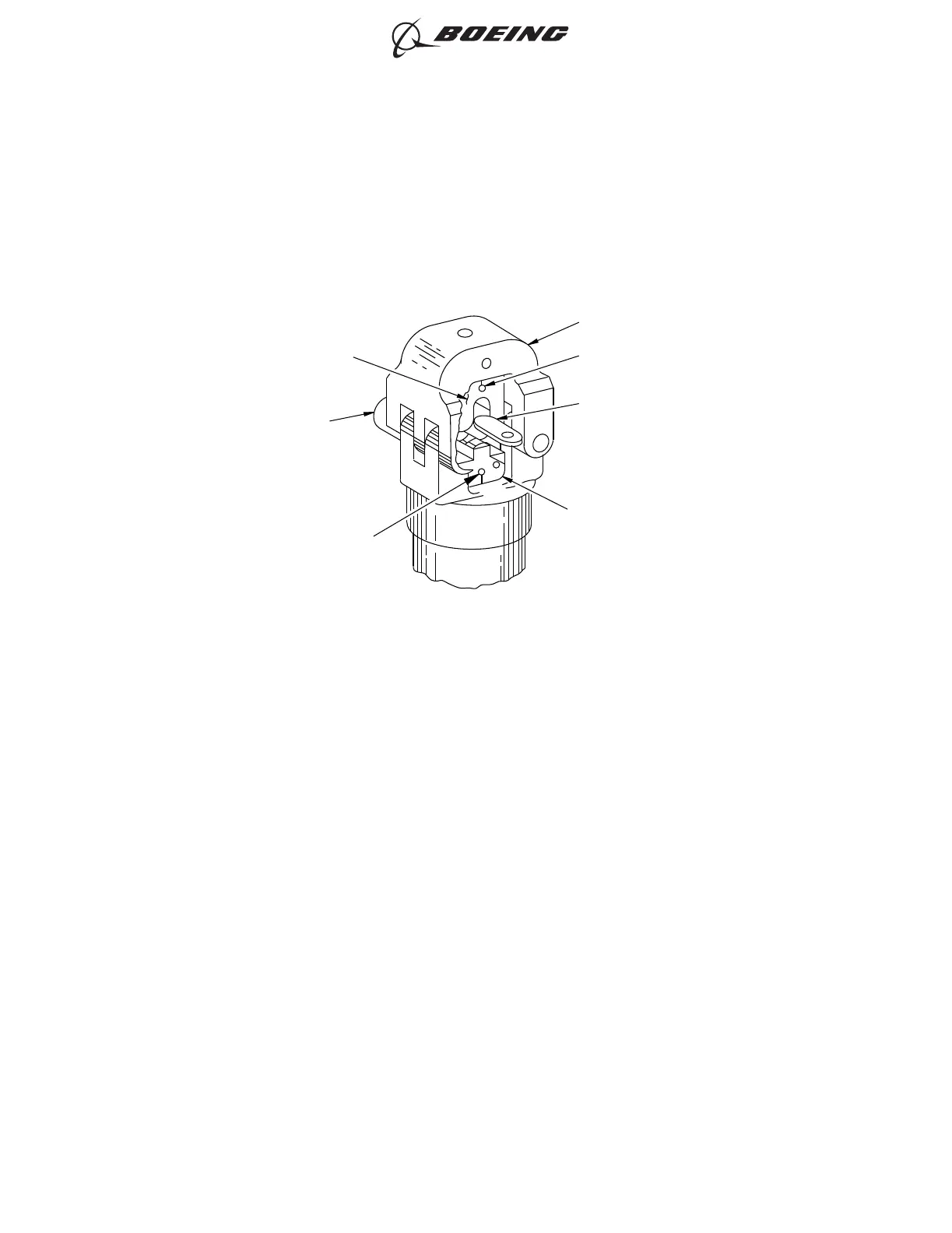

Position of the Terminal Lug in the Crimp Tool
Figure 2
ASSEMBLY OF BACT12BC TE ALUMINUM TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-08
Page 5
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
