PowerVault ML6000 Maintenance Guide 85
3 Disengage the Y-rails so the modules can be safely unstacked.
a. From the front of the library, find the Y-rail release mechanism, which is located on the left side
of the module. Squeeze the handle of the Y-rail release mechanism, lift it, and release it so that
it locks into place.
b. From the rear of the library, find the rear Y-rail release mechanism located in the interior of the
right side of the module. Squeeze the handle of the Y-rail release mechanism, lift it, and release
it so that it locks into place.
4 Remove the rack ears that fasten the module to the rack.
The rear Y-rail is impossible to lift up with the tape drives installed.

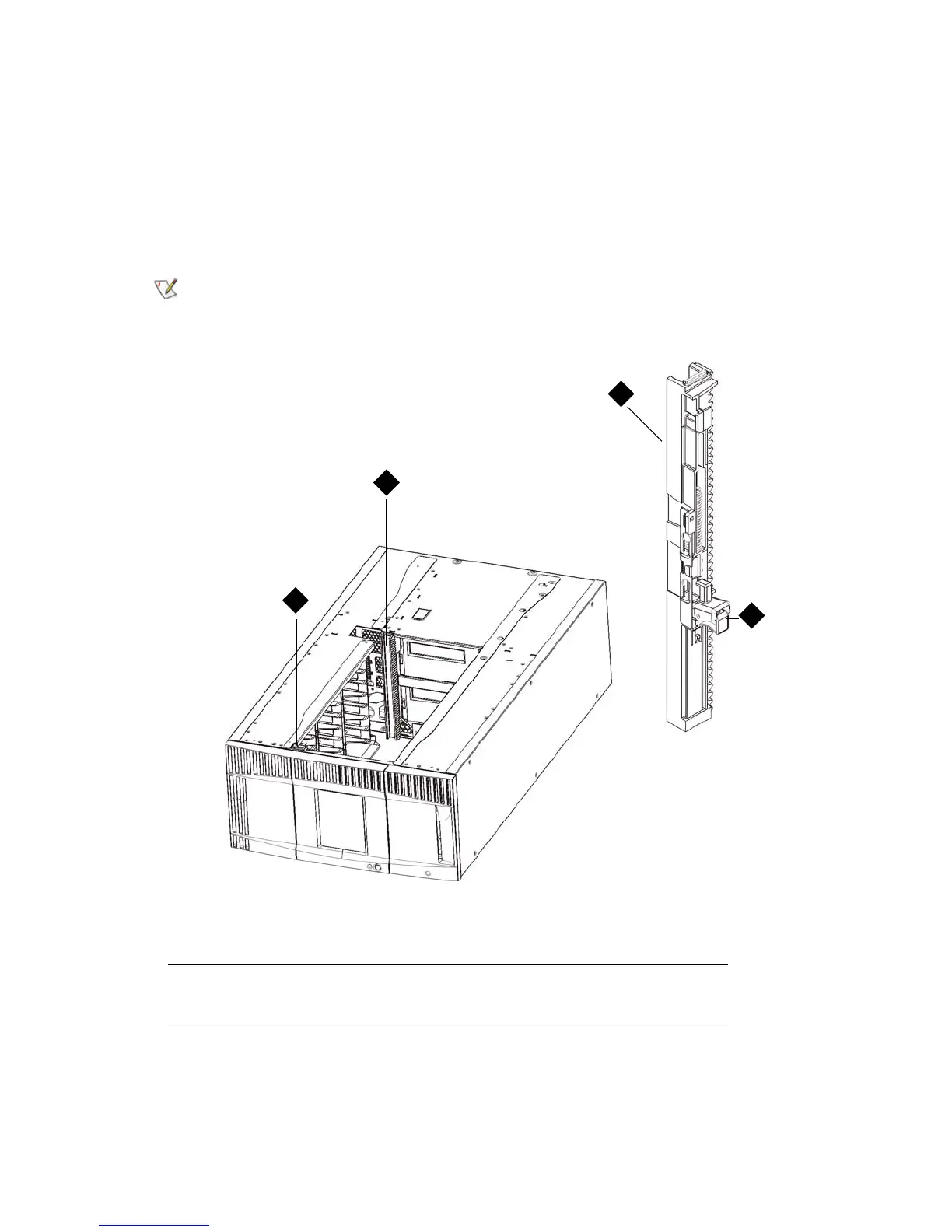

1 Front Y-rail
2 Rear Y-rail
3 Y-rail (this end up)
4 Squeeze here to release
