PowerVault ML6000 Maintenance Guide 29

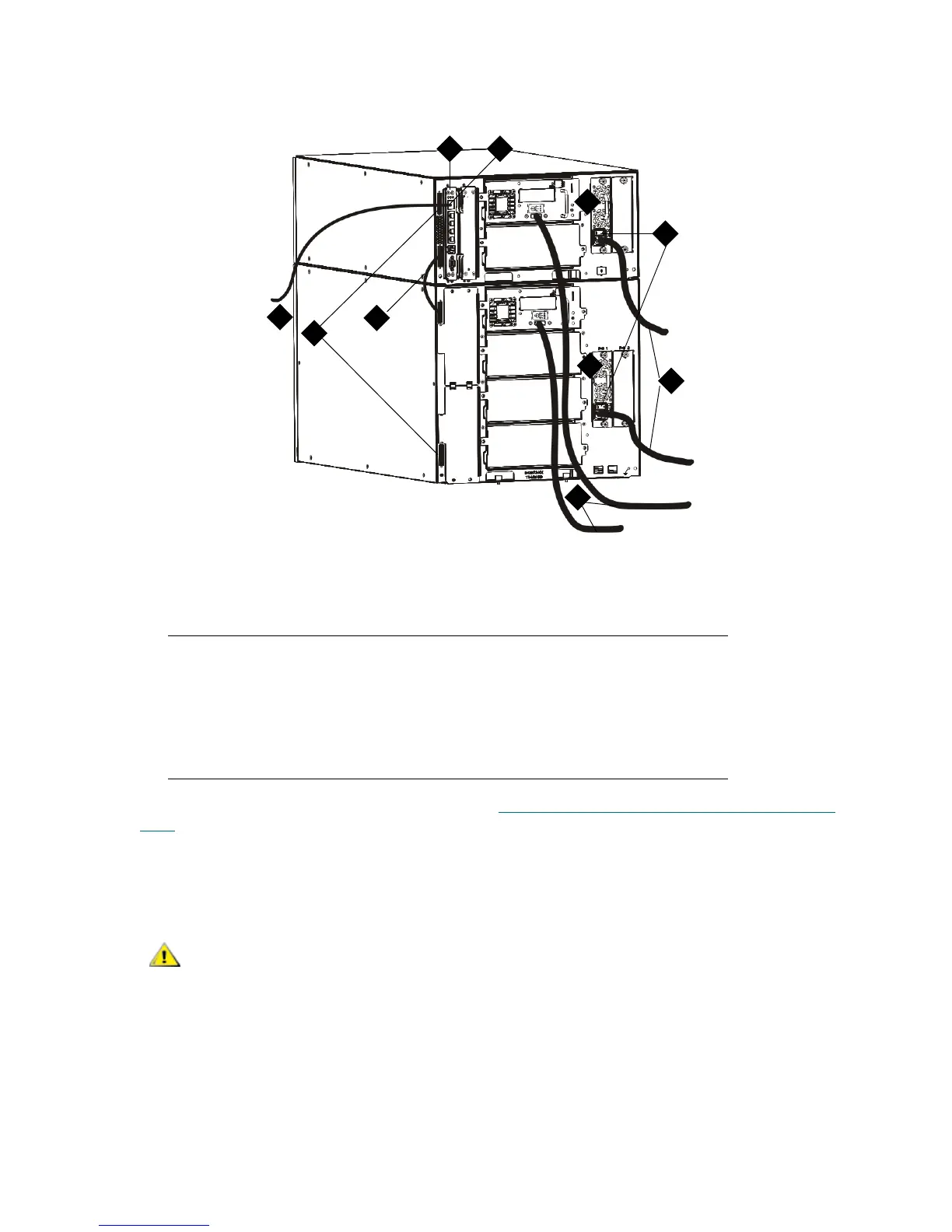

Figure 7 Multi-Module SAS Cabling
1 If your library is 14U or taller, install it in a rack. See Using
the Rack-mount Kit to Install a Library in a
Rack on page 108 for instructions. The instructions include procedures for removing and replacing tape
drives.
2 Connect one end of the SAS cable to the tape drive. Connect the other end of the SAS cable to the host.
3 If your library configuration consists of a single module, place module terminators in the module’s top
and bottom module terminator connectors.
1 Module-to-module cable
2 Library control blade
3 GB Ethernet port
4 Power supply
5 Rear power switch
6 Power cords
7 SAS cables to host
8 Module terminators
9 Ethernet cable to customer
network
CAUTION
The module terminator is not the same as a SCSI terminator. Using a
SCSI terminator instead of a module terminator will damage the
library.
4
9
6
7
5
8
2 3
4
1
