162 General Service and Replacing FRUs
11 Build the new safety door assembly to match the one you removed, by snapping the link into position
on the left side of each door. Place the spring on the left pivot pin of the bottom door (or whichever pin
it was on originally). If your library configuration used two springs, reuse one of the springs from the old
door assembly.
12 Install the new safety door assembly by following the instructions above in reverse. Install the bottom

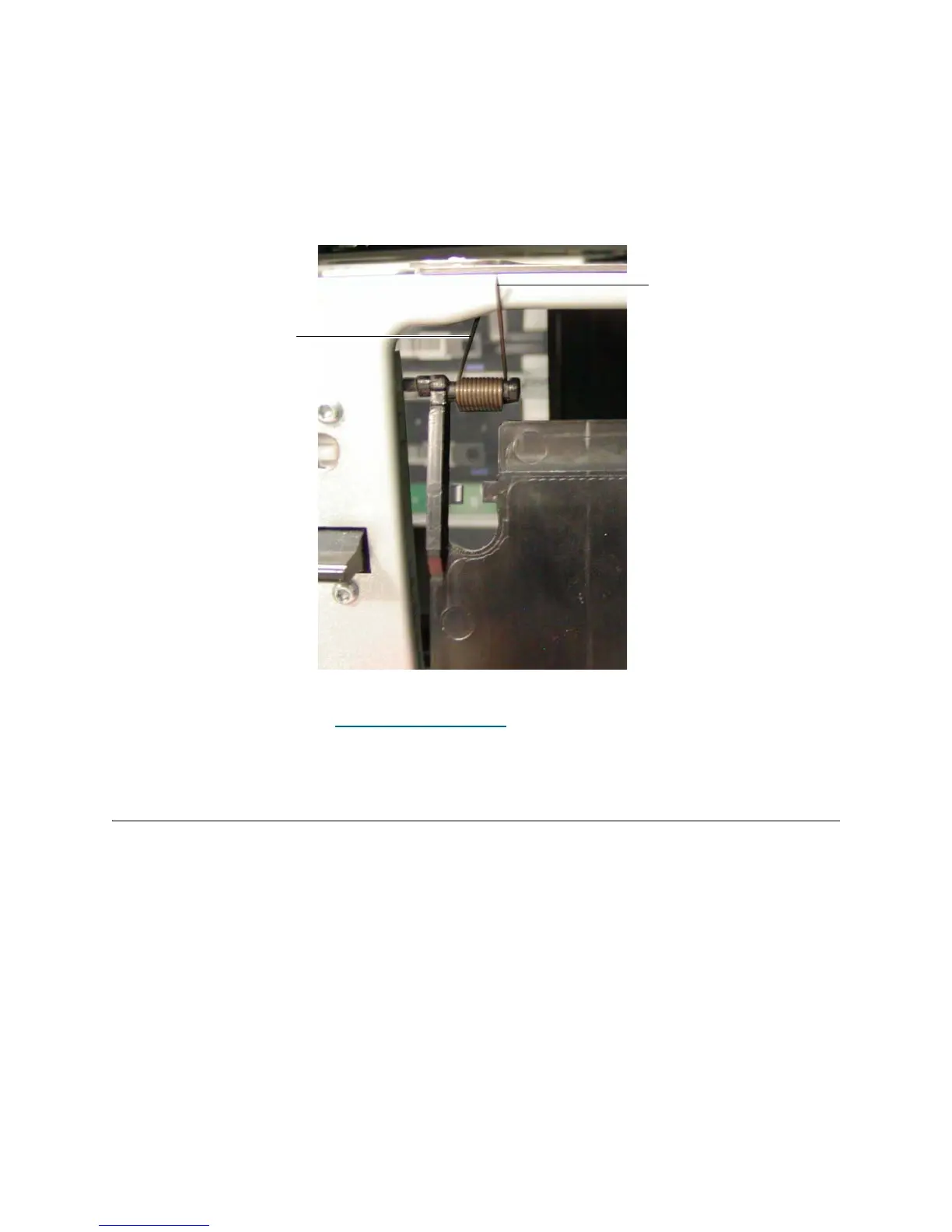

door first. When installing, position the spring as shown below. When installing the top door, you can
push open the bottom door to assist you in placing the top left pivot pin into position.
13 Replace the I/E station (see Replacing
the I/E Station on page 154).
14 Power on the library.
Removing and Replacing the Operator Panel (LCD)
The operator panel enables you to control the library using the LCD screen located on the face of the 5U
Library Control Module. Each library contains one operator panel.
These instructions explain how to replace an operator panel with a new one. You may need to replace an
operator panel if there are problems with the current one.
Required tools: T10 TORX screwdriver, to detach and reattach the operator panel
1 Power off the library.
2 Open the I/E station door of the 5U Library Control Module.
Opening the I/E station door enables you to open the access door, to which the operator panel is
attached.
3 Open the access door of the 5U Library Control Module. The operator panel is located on the back of
this door.
Front
spring
wire
Rear
spring
wire
