28 Library Installation and CRU Replacement
Use this procedure, along with Figure 6 and Figure 7 on page 29, to connect SAS cables directly to the host.

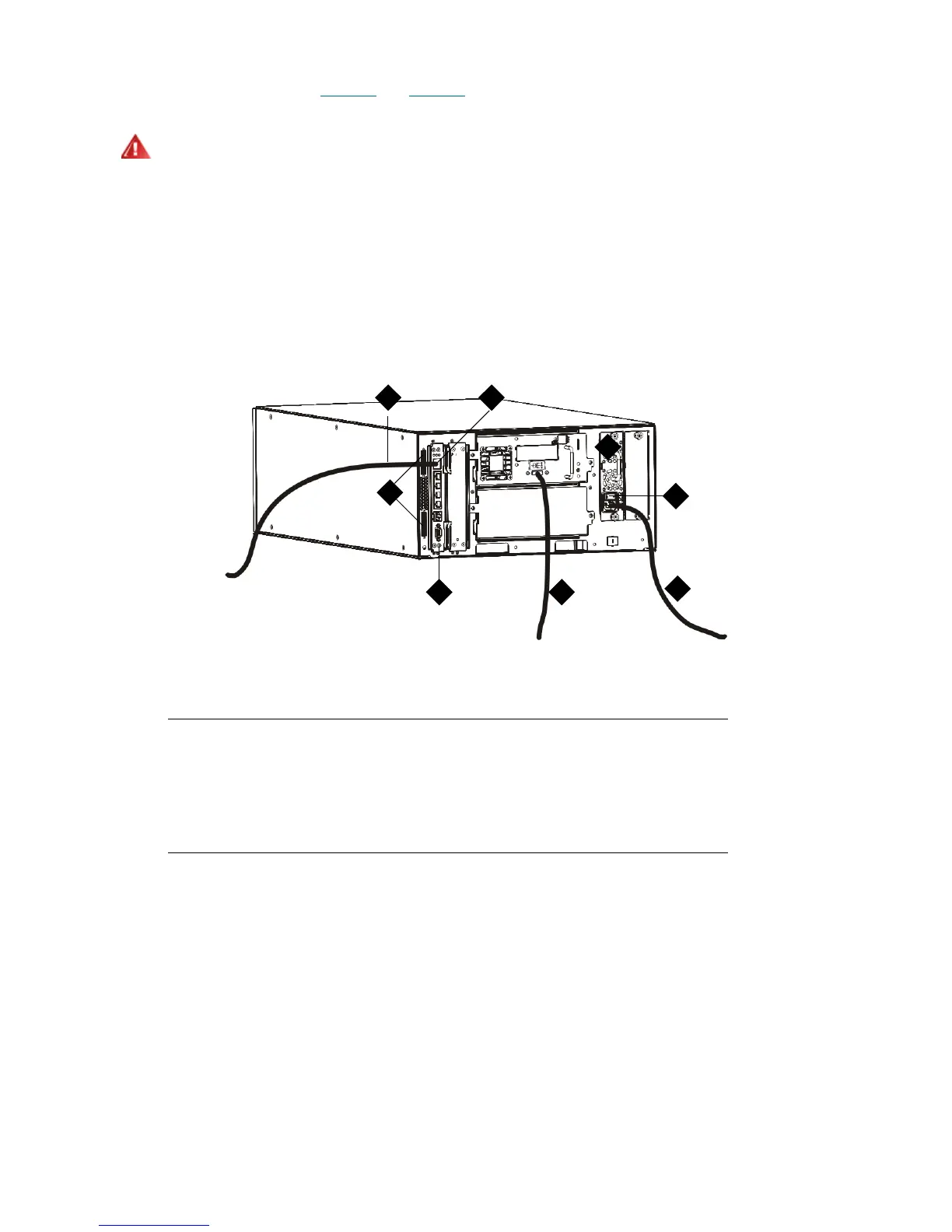

Figure 6 Stand-Alone 5U Library Control Module SAS Cabling
ALL LIBRARIES TALLER THAN 14U MUST BE INSTALLED IN A RACK
HAVING A MAIN PROTECTIVE EARTHING (GROUNDING) TERMINAL,
AND POWER MUST BE SUPPLIED VIA AN INDUSTRIAL PLUG AND
SOCKET-OUTLET AND/OR AN APPLIANCE COUPLER COMPLYING
WITH IEC 60309 (OR AN EQUIVALENT NATIONAL STANDARD) AND
HAVING A PROTECTIVE EARTH (GROUND) CONDUCTOR WITH A
CROSS SECTIONAL AREA OF AT LEAST 1.5 MM
2
(14 AWG).
TO ENSURE PROPER AIRFLOW AND ACCESS SPACE, ALLOW 60 CM
(24 INCHES) IN THE FRONT AND BACK OF THE LIBRARY.
1 Ethernet cable to customer
network
2 GB Ethernet port
3 Power supply
4 Rear power switch
5 Power cord
6 SAS cable to host
7 Library control blade
8 Module terminators
