PowerVault ML6000 Maintenance Guide 115
3 Park the robot assembly in the 5U Library Control Module (Regardless of which module you are
installing, the robot must be parked in the 5U Library Control Module before you begin moving the
modules into the rack.):
a. Open the I/E station and access doors of each module.
b. Using your hands, gently lift the robot assembly into the 5U Library Control Module. The robot
assembly should glide slowly and with some resistance.

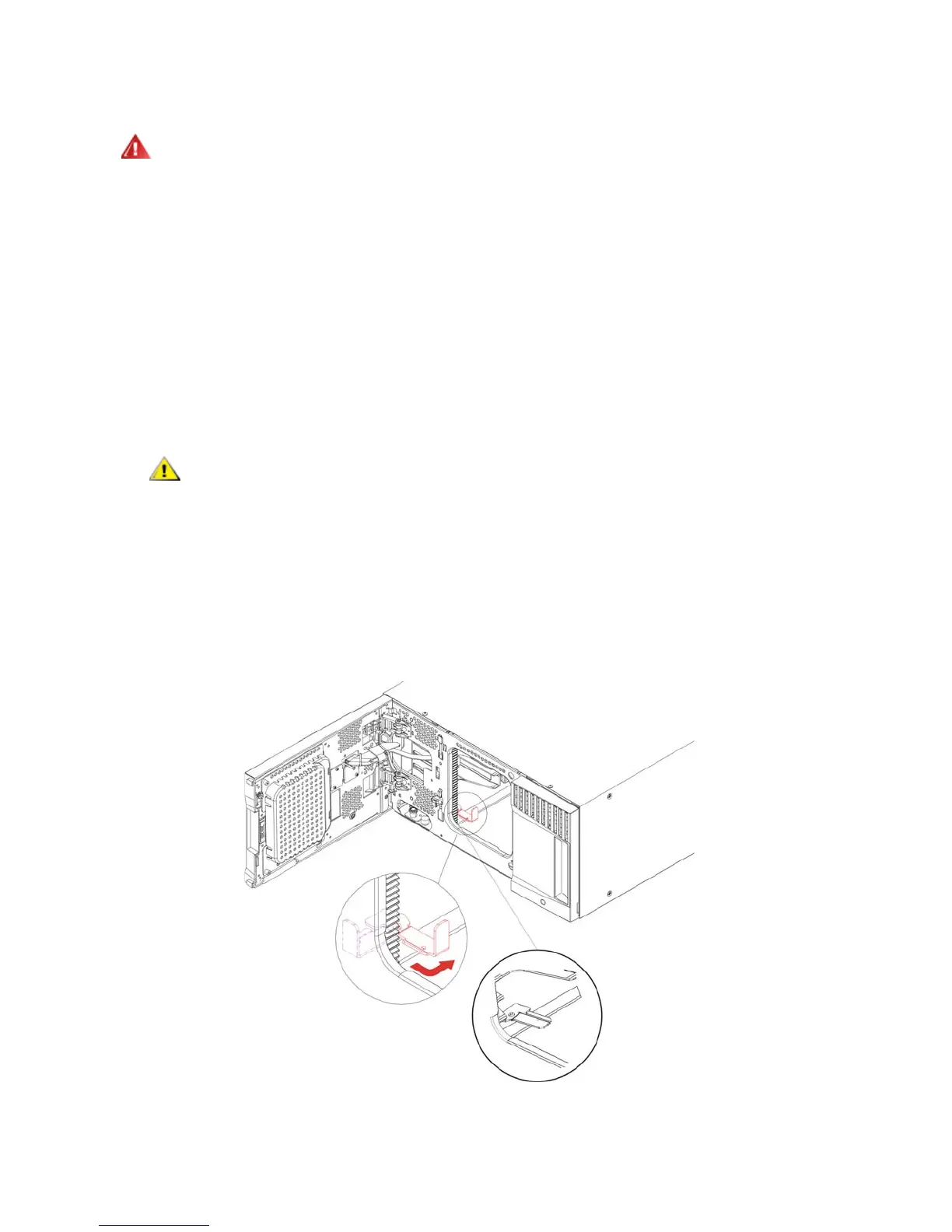

c. After raising the robot assembly to the approximate middle of the 5U Library Control Module,
hold it in place with one hand and, using your other hand, move the parking tab to the "parked"
position (Model 1 parking tab: swivel toward you; Model 2 parking tab: move in a counter-
clockwise direction). The metal parking tab is located at the bottom of column 1.
d. Gently release the robot assembly to rest on the parking tab.
WITHOUT TAPE DRIVES, TAPE CARTRIDGES, OR POWER
SUPPLIES, A 5U LIBRARY CONTROL MODULE WEIGHS
APPROXIMATELY 60 LBS (27.2 KG). A 9U EXPANSION MODULE,
WITHOUT TAPE DRIVES, TAPE CARTRIDGES, OR POWER
SUPPLIES, EXCEEDS 65 LBS (29.5 KG).
TO AVOID SERIOUS INJURY, AT LEAST TWO PEOPLE ARE
REQUIRED TO SAFELY LIFT THE MODULES INTO POSITION.
Support the robot assembly by holding onto the broad metal X-axis
base plate. Lifting the robot by the thin metal rod will bend the rod.
Lifting the robot by the black plastic picker body can damage the
robot.
