PowerVault ML6000 Maintenance Guide 153
Slide the I/E station toward you as far as it will go. Then reach through the access door, and using your
fingers, lift the silver pin that is located above the slide assembly. Hold up the upper pin while you pull
the upper slide out a little. Then lift the lower pin to pull the I/E station slide assembly entirely out of the
9U Expansion Module.
5 Remove the tape magazines from the I/E station slide assembly.
Grip the middle of each tape magazine, several slots lower than where the barcode is located, and pull
the magazine out of its container. Set the tape magazines aside.
6 Set aside the slide assembly.
7 Insert the tape magazines into the new slide assembly units, with the barcode at the top. Push the tape
magazines all the way into the container.
8 Insert the two individual slide assembly units into the 9U Expansion Module. The slide assembly units
should slide in easily.

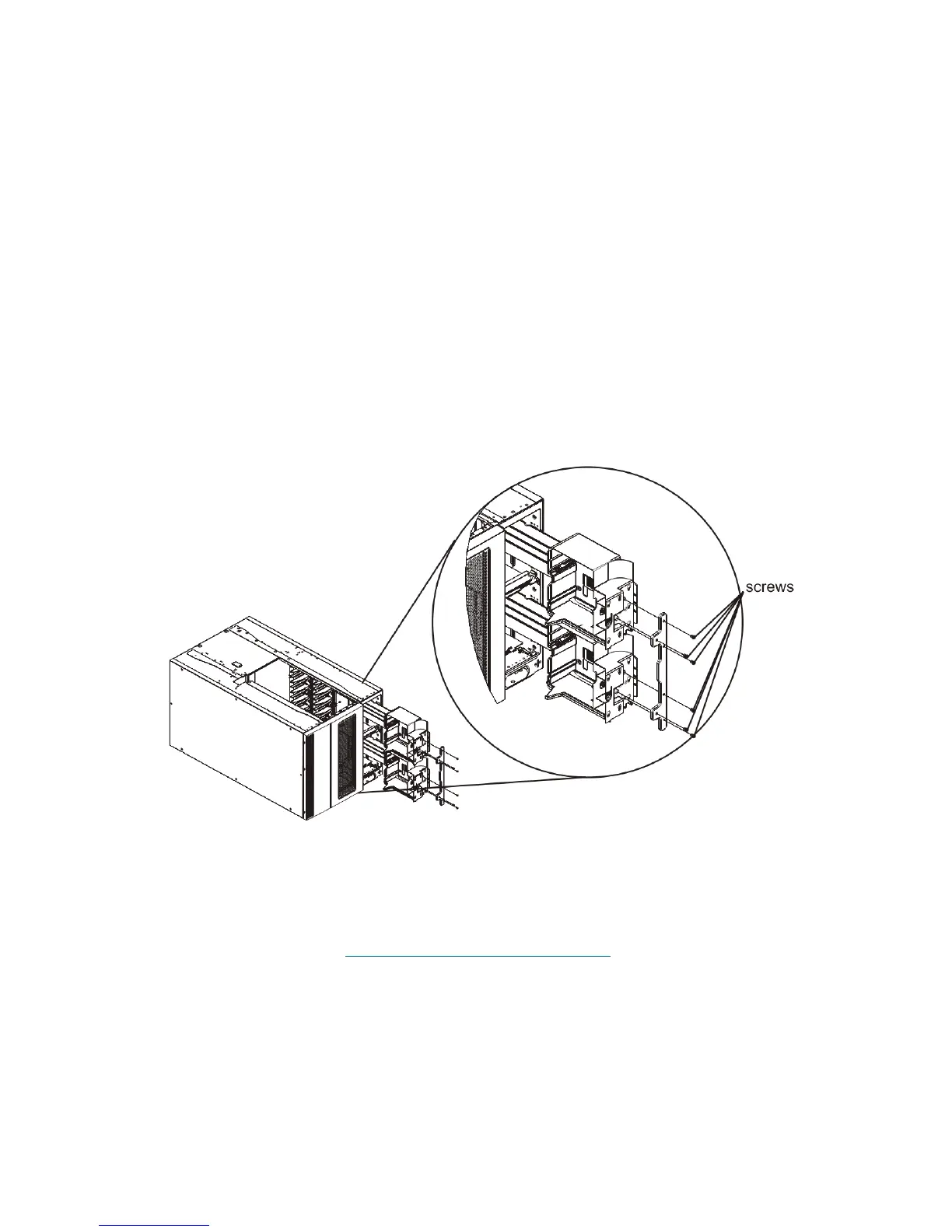

9 Secure the metal brace to the two individual slide assembly units.
Using the screwdriver, first install a screw in the bottommost screw hole in the brace. Then install a
screw in each remaining screw hole, working from the bottom up.
10 Ensure that the slide assembly is inserted completely into its slot, so that the door can close easily.
11 Close the I/E station door.
12 Replace the front bezel. See Removing and Replacing Front Bezels
on page 146 for instructions on
replacing the front bezels of the library.
13 Take the affected partitions back online.
