5.
Verify that the holes of the plate retainer and the septum are aligned. If the holes are not aligned,
take the assembly apart, then re-assemble.
IMPORTANT! The array tips will be damaged if the plate retainer and septum holes are not
aligned.
8-tube strip assembly, standard or fast
IMPORTANT! Use the correct 8-tube standard or fast strips plate retainer and plate base with the
same catalog number. Using the wrong plate base may aect performance. See Appendix D, “Catalog
numbers” for plate assembly specifications and catalog numbers.
6
5
3
1
4
2

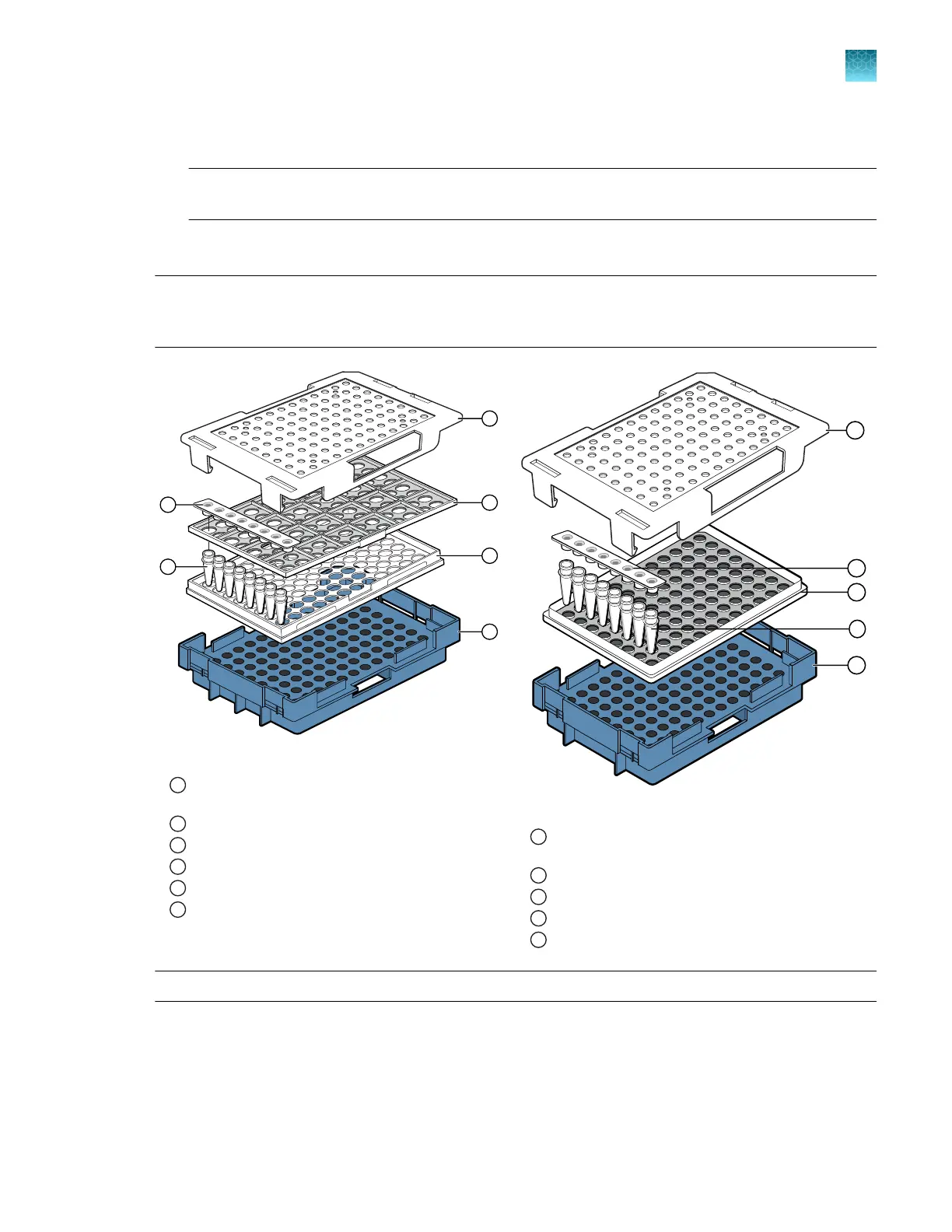

Figure 12 8-tube strip standard tube assembly
1
Plate retainer with one opening on side to allow
bar
code reading
2
Septum strip
3
Retainer
4
8-tube strip standard tubes
5
96-well tray
6
Plate base
1
2
5
4
3
Figure 13 8-tube strip fast tube assembly
1
Plate retainer with one opening on side to allow
bar
code reading
2
Septum strip
3
96-well tray
4
8-tube strip fast tubes
5
Plate base
Note: Reuse of the septa strips is not recommended.
Chapter 3 Prepare the samples
Prepare and assemble sample plates
