PowerVault ML6000 Maintenance Guide 117

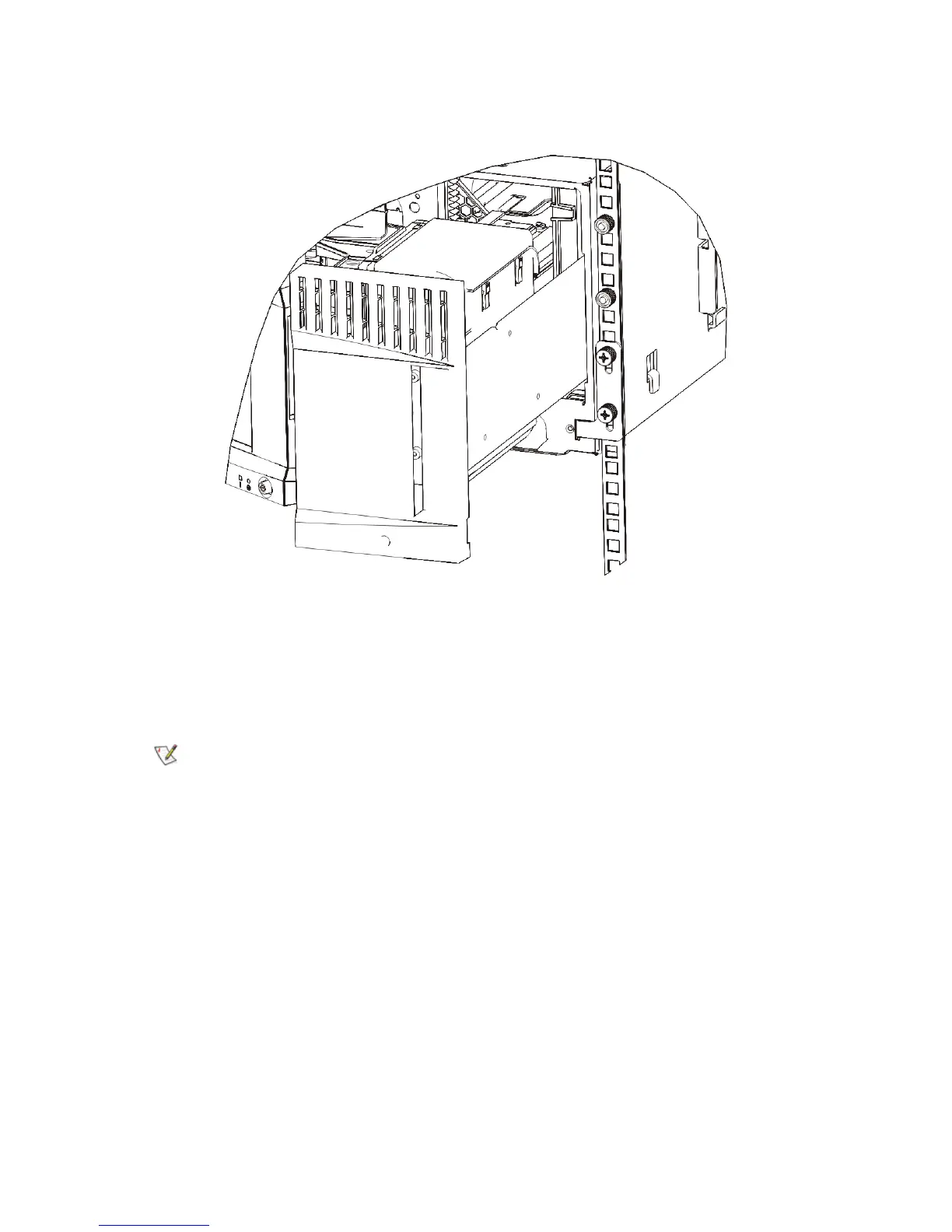

b. Using two M5 thumbscrews, fasten the rack ear to the rack. The thumbscrews should fasten
completely and evenly.
4 Install the left rack ear.
a. With the I/E station door open, open the left door (the access door) of the module and locate
the slot in the lower left corner of the module. (The flexible door hinge allows the door to be
pulled away from the module, providing access to the slot.)
You may need to pull the door toward you to access the slot.
