Open the array header latch: pull the snap-pin connector to release it, then swing the latch
arm to the right.
21

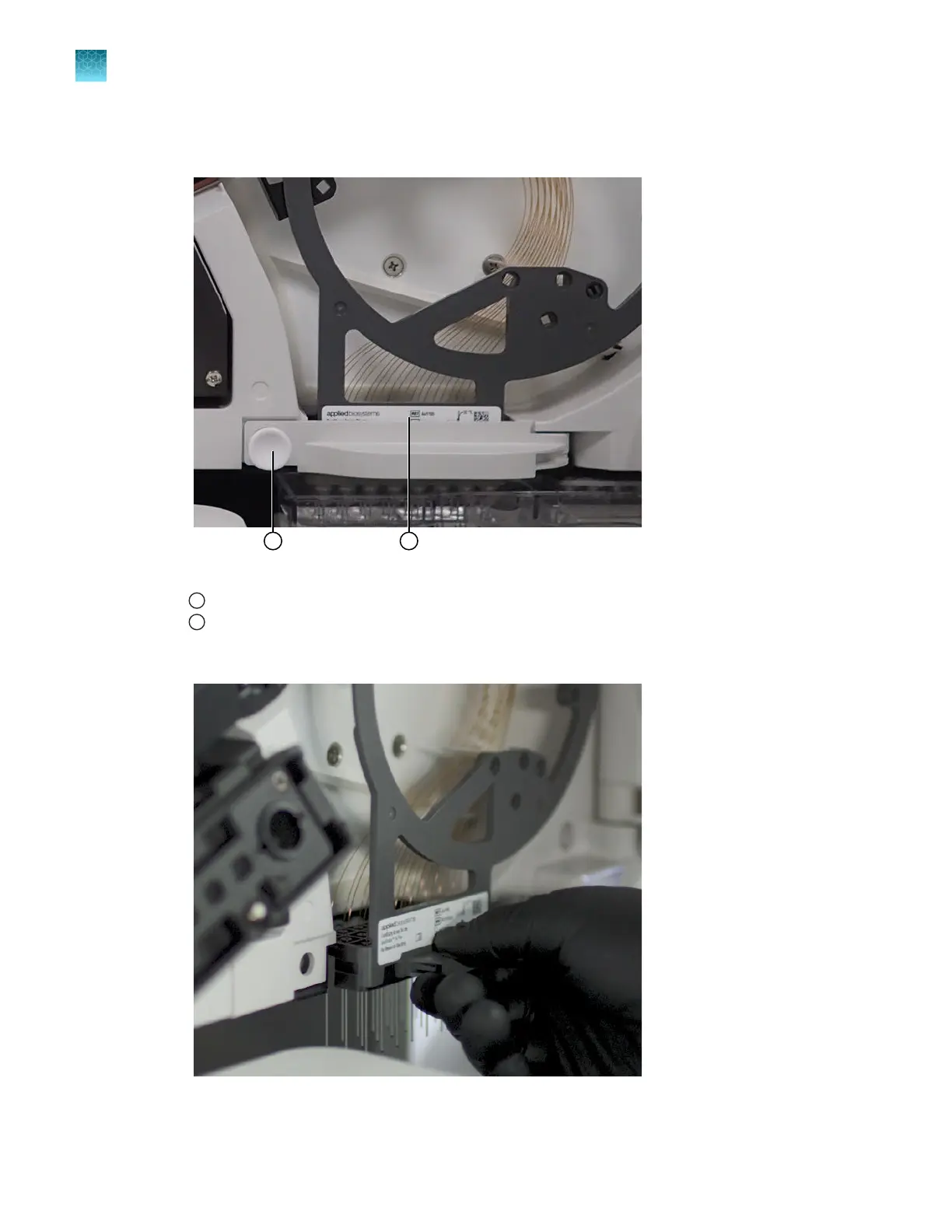

Figure 29 Array header latch and array housing
1
Snap-pin connector on the array header latch
2
Array header
e.
Gr
asp the tab on the array header and slide the array out of the instrument.
Figure 30 Tab on capillary array
