BPswitch Operators Manual
253 / 413
BRC-300 the camera address is changed on the bottom of each camera via dip-
switches.

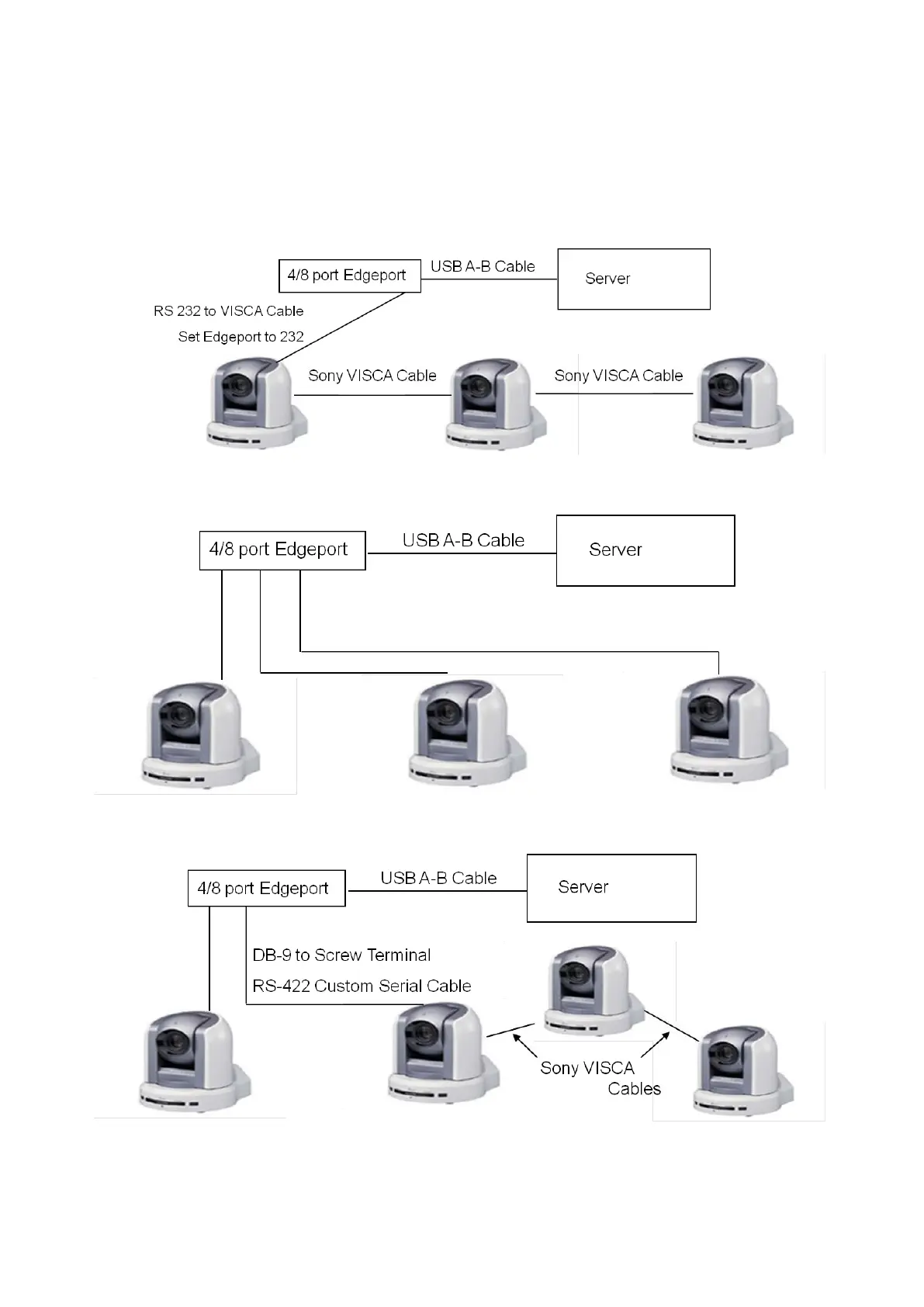

Sony/Lumens/Marshall Wiring Configurations
RS-232 Daisy Chain Set-Up:
RS-422 Star Configuration:
RS-422 Star with Daisy Chain Configuration:
Vaddio Wiring Configurations
Serial Connection w/ video out on Camera:
