BPswitch Operators Manual
133 / 413

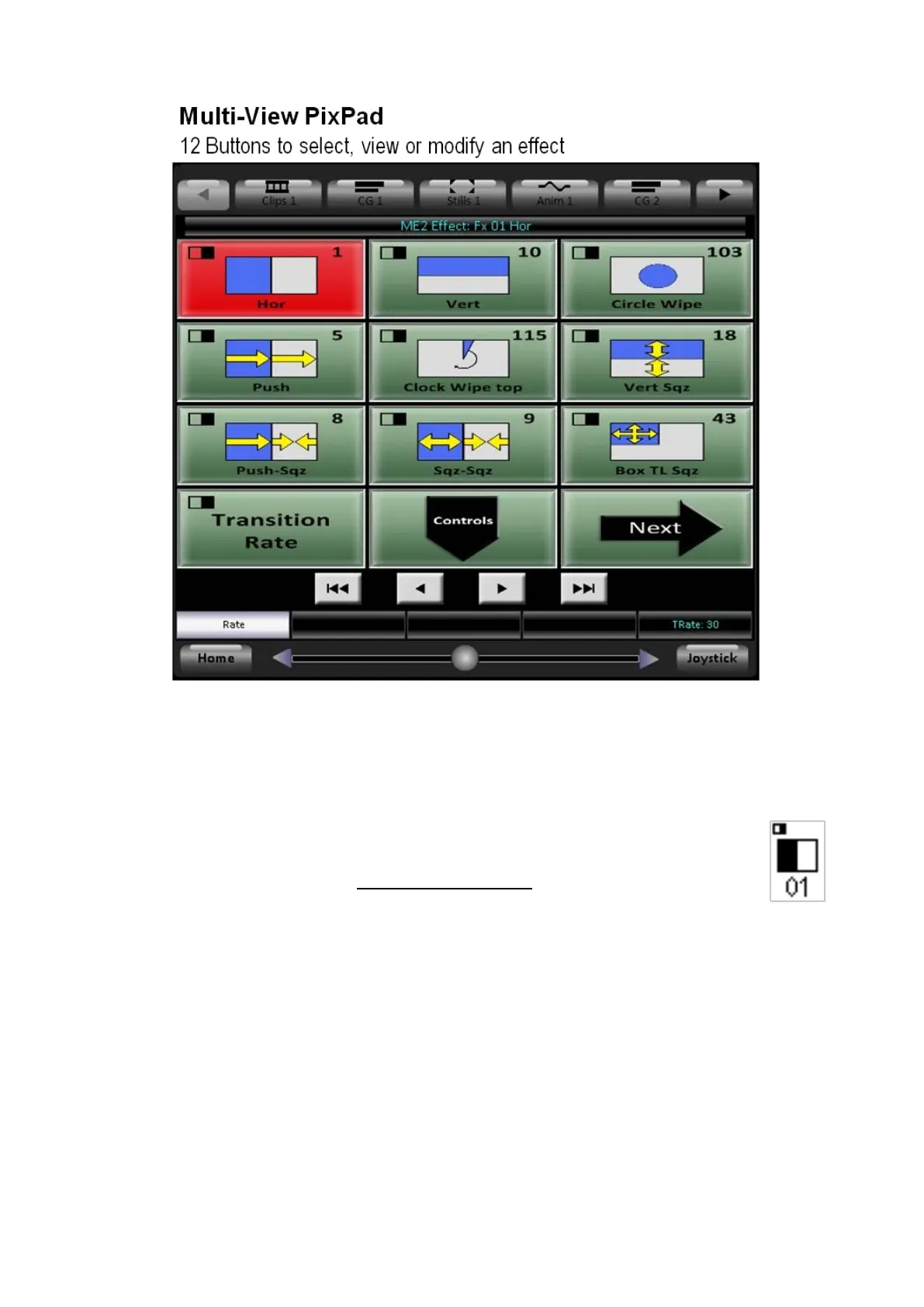

Effects Styles and PixButtons
The Broadcast Pix Switcher has over 150 effects. Each effect has a unique
number, name and PixButton icon image. The PixButton icons are intended to
show the effect style at a glance. The conventions used for these PixButtons are:
Black shows the foreground, while the background video is blank. For
example, in the horizontal wipe, the new foreground enters from the left.
(It can also be reversed, see Reversing an Effect).
Types of Transition Effects
The Broadcast Pix Switcher supports many types of transitions each has its own
style PixButton icon. For example, if there was currently a picture of the sun on-air
(background), and you wish to transition to a person (foreground).
