Recorder:
Record the Program video and audio to the internal hard disk in a
1920x1080i Motion JPEG .avi file. Allows for custom naming and direct
recording to a Watch Folder. Controls include start and stop.
Streamer:
Stream the Program video and audio to a website or CDN using Adobe Flash
Media Live Encoder or Microsoft Expression Encoder. Controls include the
start and stop with built in integration to Ustream and Livestream.
Router Control:
An option which enables control of AJA Kumo SDI video routers. Connection is
through TCP/IP and allows for sources from router to be switched from the control
panel and/or Macros. Source names from router can also be viewed on the Multi-
View.
Device Controls
Device Controls is the portion of the control panel that can be assigned to
whichever device you wish to control, i.e. clips, graphics, keyers, etc. The upper
half of the panel is comprised of the device controls, as shown in the illustration
below. The remainder of the panel is comprised of the fixed controls, which are
described in Digital Production Switcher.
The device controls are comprised of the Joystick, up to 4 knobs, up to 4 motion
buttons, a group of 12 buttons called the PixPad and a display, as shown below.
When any device is selected, all of these the controls are dedicated to it.

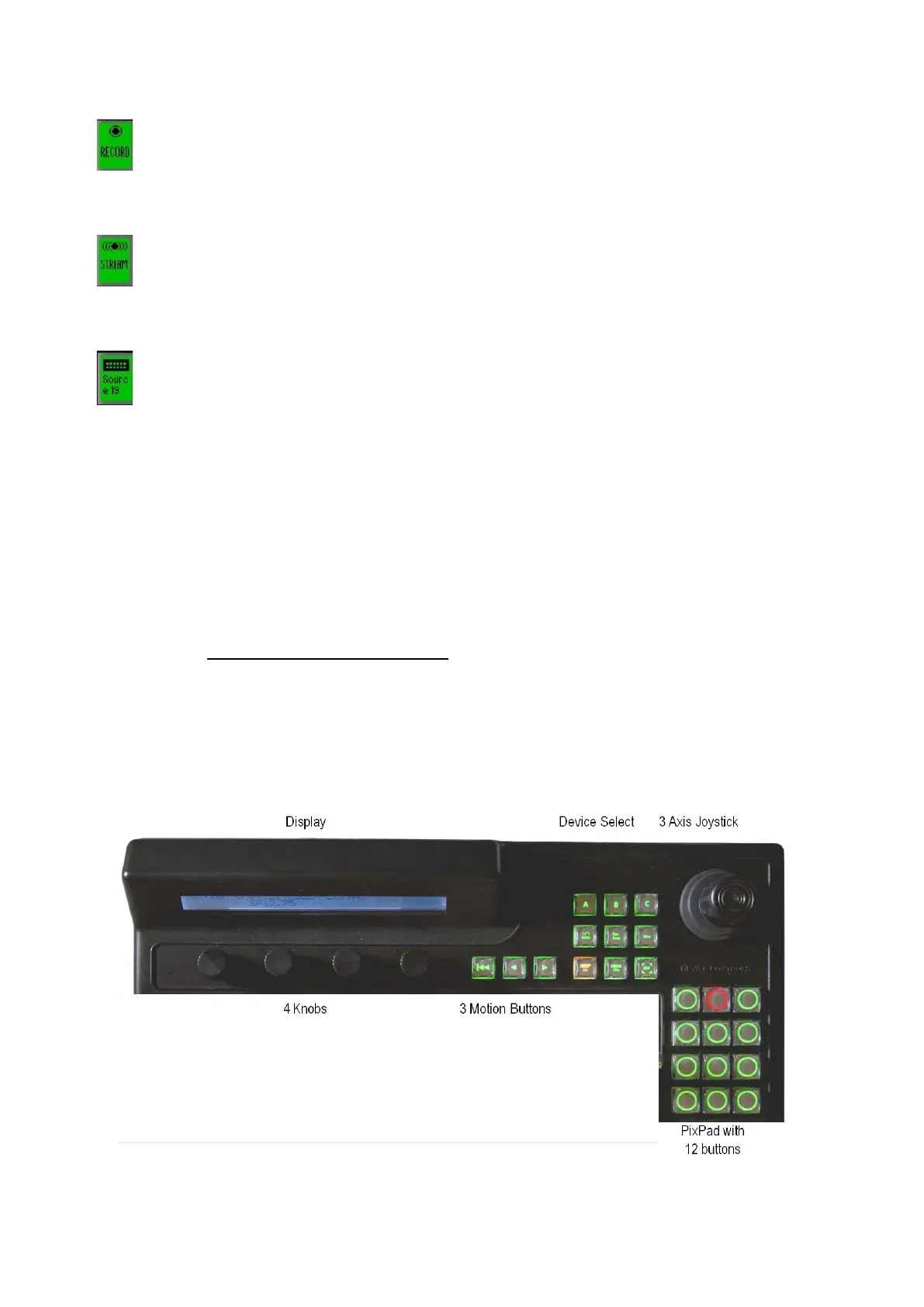

Device Controls portion on a 500 Panel
To Next Page
