Label. This name can be updated from
the Multi-View or Input Assignments
window and will automatically update on
the Router. The top name represents
the Router Output/Destination name and
is automatically feed from the Broadcast
Pix to the Router.
13.
If desired a startup assignment may be
set for each router output, under the
Default Source drop down menu select
the desired router input source to be
used for when the application first
opens.
14.

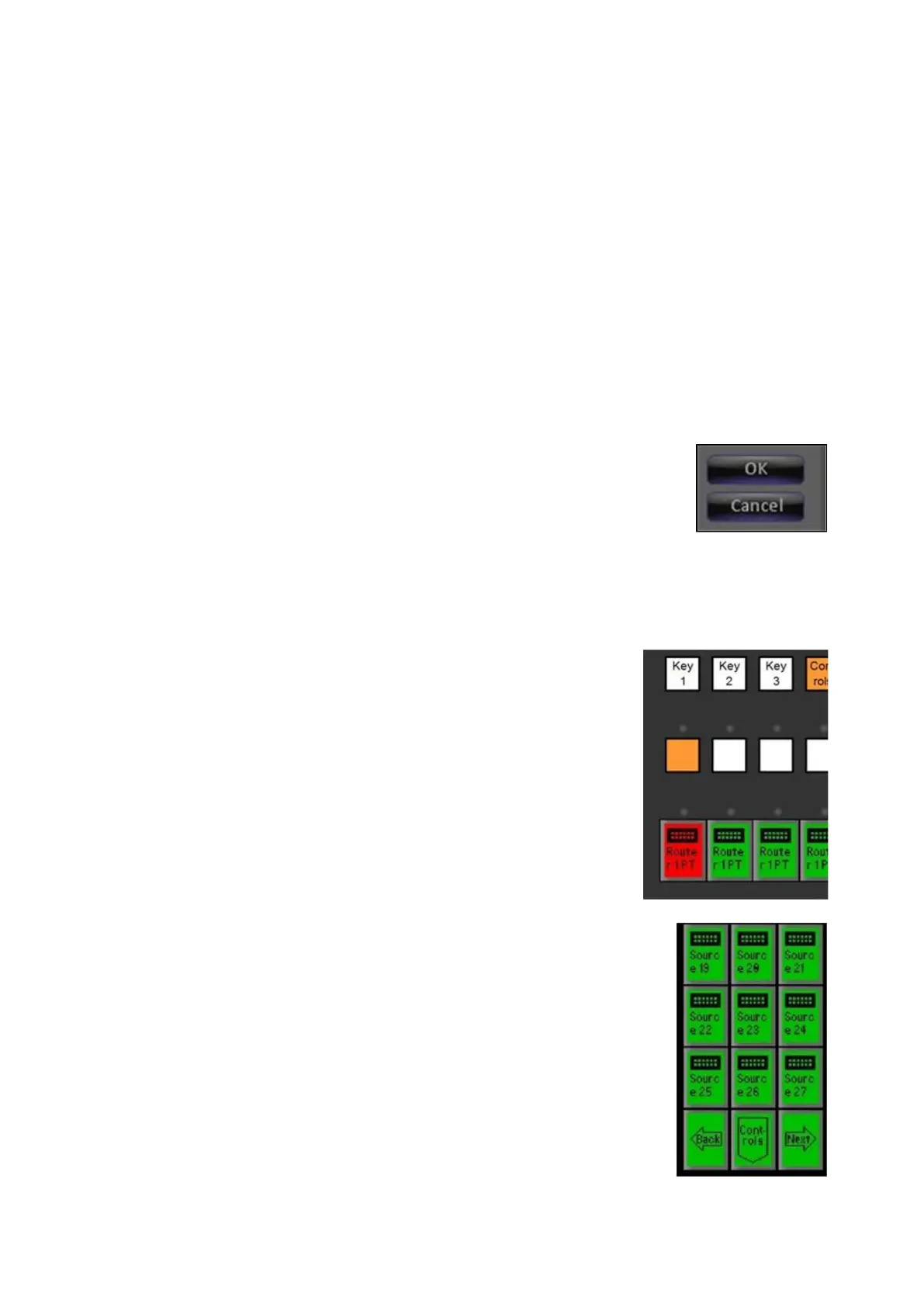

Click on the OK button to save the
changes, as shown on the right.
15.
In the IO Assignments window, click on
the OK button to close the window.
Router Control Panel Operation
1.
Select the [Controls] button in the Destination row, it
will illuminate orange, as shown on the right.
2.
Select the desired [Source] button in the Sources row, it
will illuminate orange, as shown on the right.
Any attached router source will use the router icon
automatically.
3.
The PixPad will update showing all the router inputs,
select the desired [Router Source]
PixButton, as shown
on the right. To access higher numbered sources click
on the [Next] PixButton.
4.
To select a router source by number, select the
[Control] PixButton, then the [Number] PixButton and
enter the desired router input number and select the
[Enter] PixButton.
