BPswitch Operators Manual
27 / 413

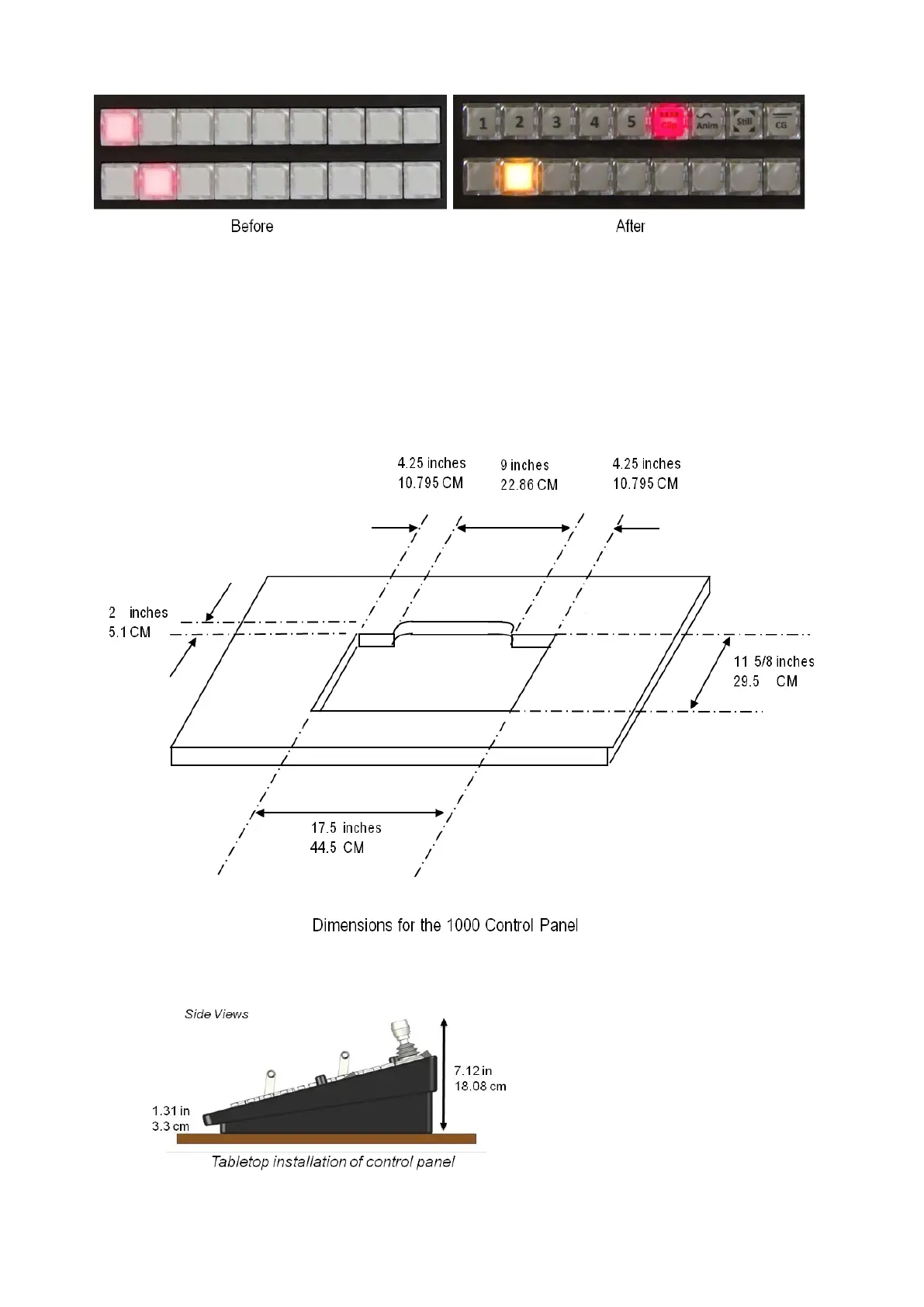

1000 Control Panel Dimensions:
The 1000 Control Panel is usually used on a tabletop, which provides a better
viewing angle in most light conditions, especially to view the PixButtons. The panel
may also be recessed into a hole cut out of a table top or console. If a cut out
installation is desired, then the following dimensions should be used to cut the
hole in the console top. The panel may fit into existing cut-outs for older
equipment, as it is the same width as a GVG100 control panel.
2000 Control Panel Dimensions:
