BPswitch Operators Manual
271 / 413

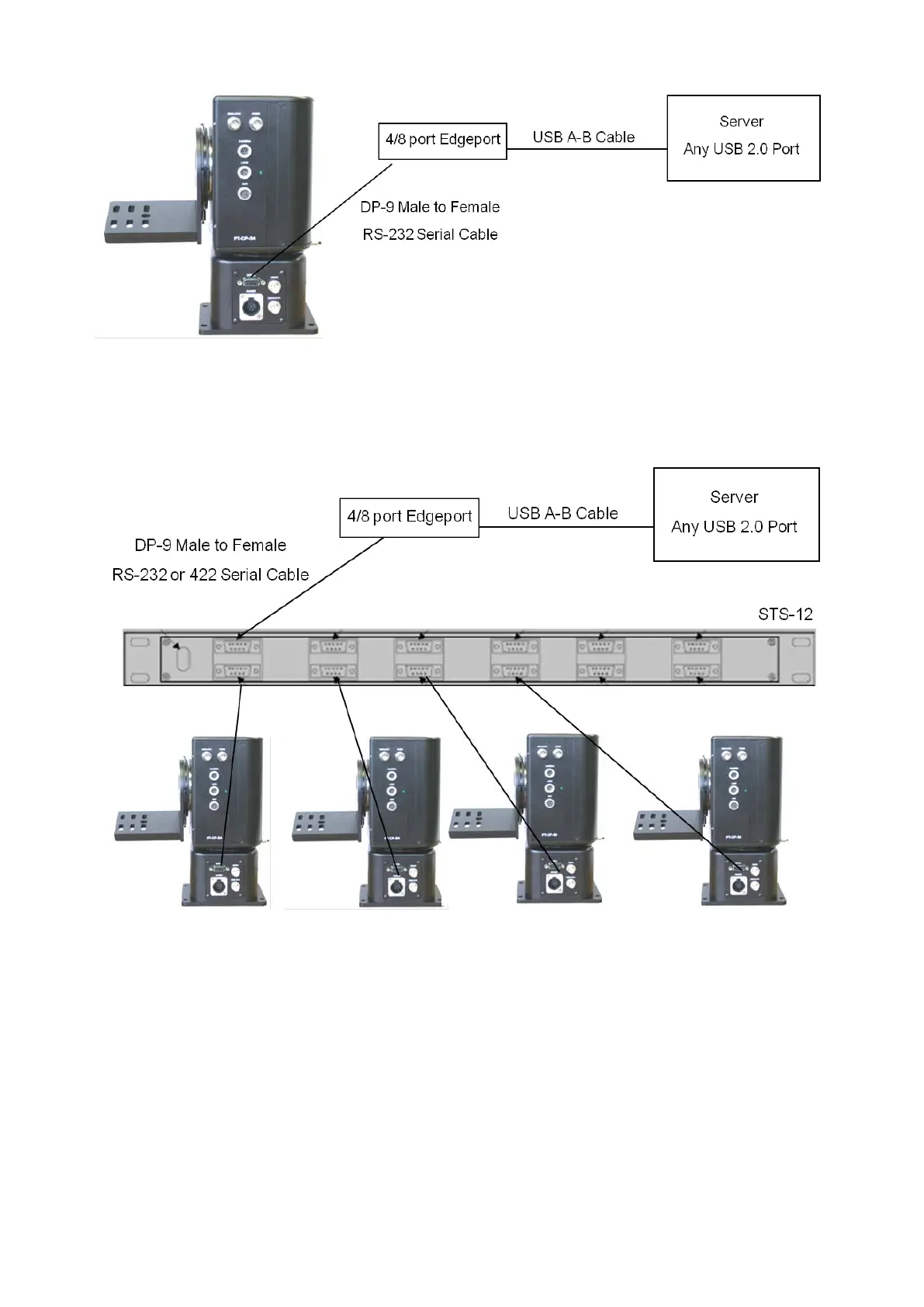

Multiple Camera Telemetrics Configuration:
The Telemetrics STS-12 Control Transfer Switch is needed. The STS-12 must be
ordered with at least (1) RS-232 or 1 RS-422 port to connect to an Edgeport
connected to the Broadcast Pix Server, as shown below.
Telemetrics Studio Software Configuration:
To connect Lens and other Camera Control cables, refer to the Telemetrics
owners manual. All cameras connect to the CPC-ST-S system.
