newly selected input
To adjust Lumakey controls:
1.
Repeat steps 1 through 2 above, by opening the
Fluent Controls windows.
2.
Click on the Lumakey button, and it will illuminate
blue.
3.
Turn the brightness and contrast wheels to the desired
settings.
Note that all other settings are disabled, as they are
not available for Lumakey.
To invert the chroma/luma key:
1.

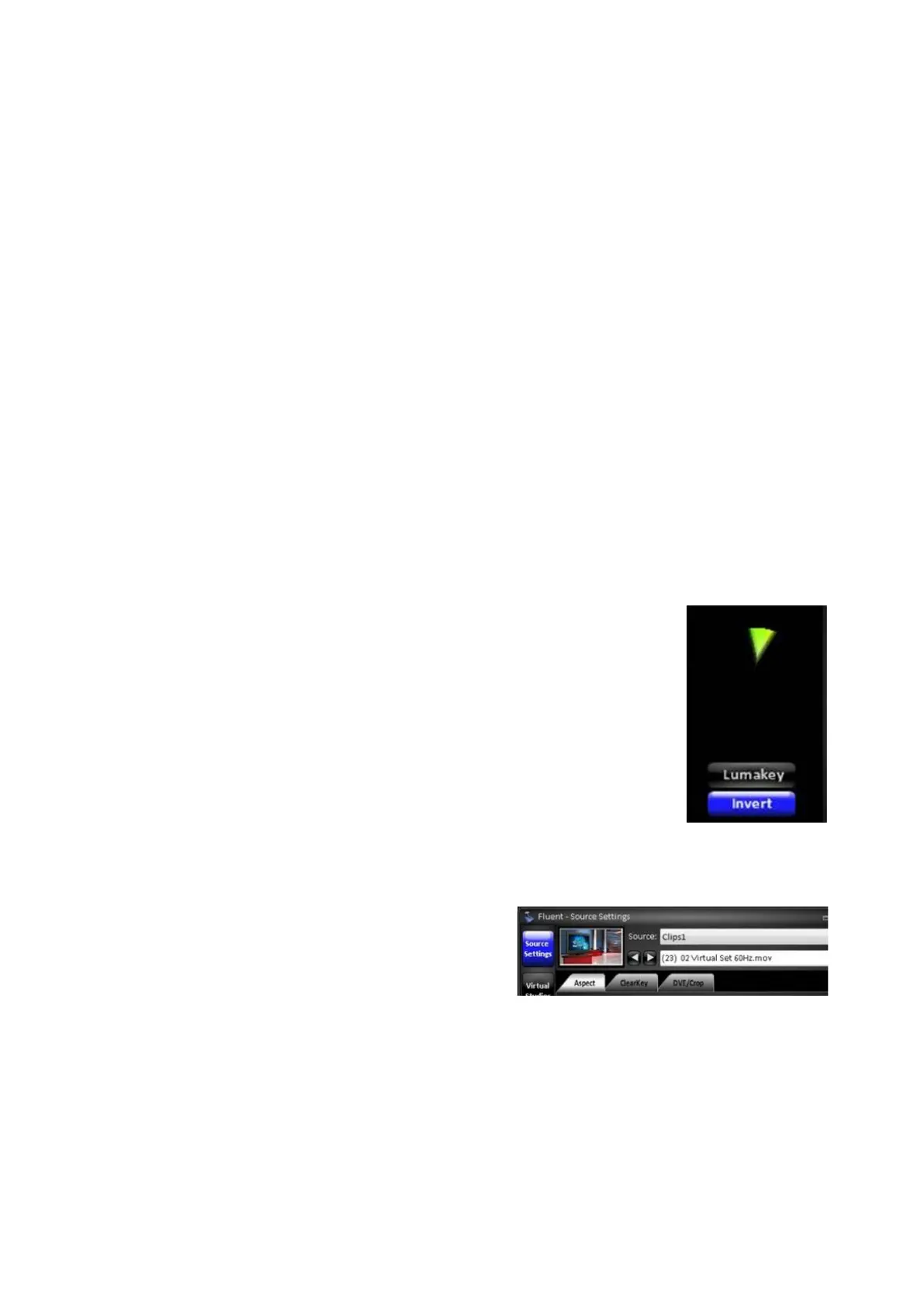

In the Fluent Controls window, select the Invert button
and it will illuminate blue, as shown on the right.
2.
To revert to normal video, reselect the Invert button
and it will turn black.
To change the aspect ratio:
1.
In the Fluent Controls window, select the
desired input to modify by clicking on the
Source: pull down menu.
2.
Select the Aspect tab, as shown on the
right.
3.
Click on the native aspect ratio, either 4:3
or 16:9 button, as shown on the right.
