BPswitch Operators Manual
36 / 413
Seven Kinds of PixButtons on a 2000 Control Panel

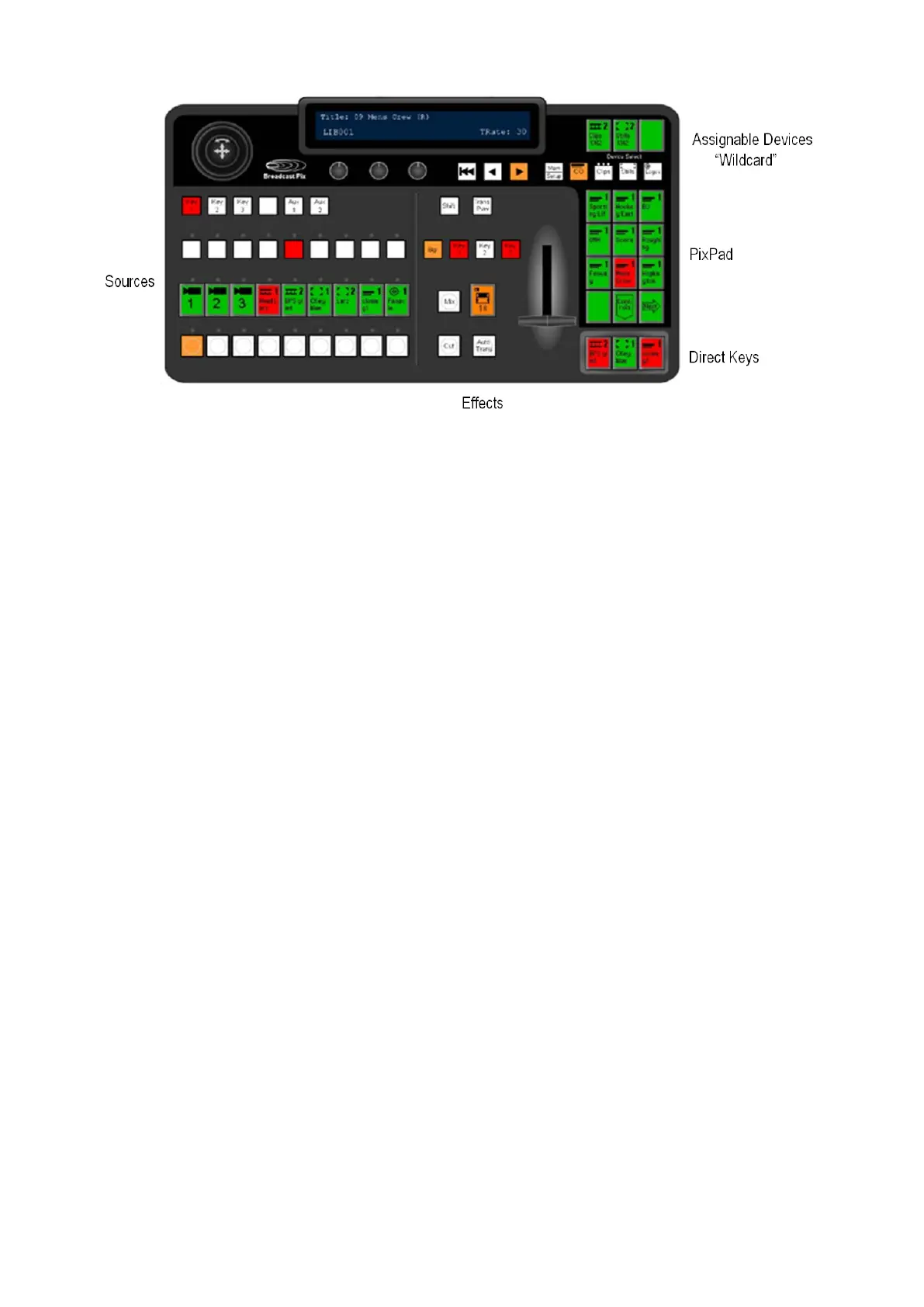

A total of 74 PixButtons are used in 7 different areas of the Broadcast Pix control
panel:
1. 12 in the PixPad
To select content within a device, and for modifiers
2. 32 Source
Displays
To see what is on each source, and selection without
preview
3. 6 Direct Keys
To see what is in each keyer, and to take it on/off air
4. 4 Assignable
Devices
To see what is in each assignable device, and to select it.
5. 1 Effects
To see the active effect, and to select the effects controls
6. 16 Destinations
To select and modify a keyer and an auxiliary output.
7. 3 Selectors
To select various device controls.
