4: Multi-frequency capacitance-voltage unit Model 4200A-SCS Parameter Analyzer
4-12 4200A-901-01 Rev. C / February 2017
3. Select CVU Connection Compensation.

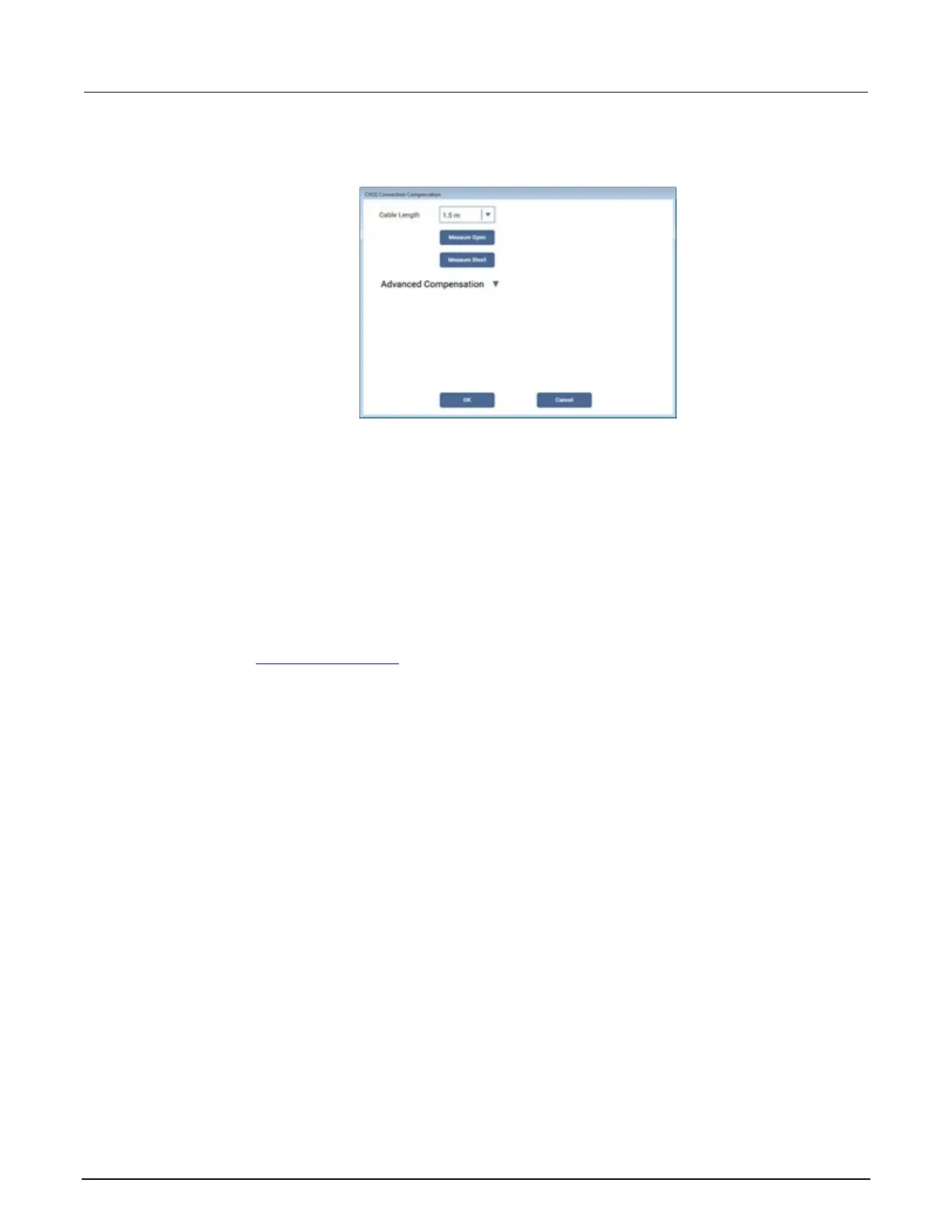

Figure 88: CVU Connection Compensation dialog box
4. Select the cable length. You can select:
 0 m: Use if measurements are made at the terminals of the 4210-CVU (no cables).
 1.5 m: Use with the standard red SMA cables (part number CA-447A) that are supplied with
the 4210-CVU.
 3 m: Use with the red SMA cables (part number CA-446) that are supplied with the
4200-CVU-Prober-Kit. You can also use this setting if you are using a switching matrix.
 Custom: Cable length coefficients are measured by the user using the Measure Custom
Cable Length option under Advanced Compensation.
5. If you selected Custom cable length, select Advanced Compensation and select Measure
Custom Cable Length. Follow the on-screen instructions.
6. If you are using a switching matrix, close the matrix switches that connect the CVU to the open.
Refer to Switch matrix control (on page A-16
).
7. In the Clarius CVU Connection Compensation dialog box, select Measure Open.
8. Follow the instructions.
9. Select OK.
