10: KPulse (for Keithley Pulse Cards) Model 4200A-SCS Parameter Analyzer

Reference Manual

10-10 4200A-901-01 Rev. C / February 2017

Custom Arb file operation: Select and configure waveforms

To select and configure waveforms:

1. Select the Arb Generator tab.

2. Select New Waveform to open the Waveform Generator dialog box, shown in the following

figure.

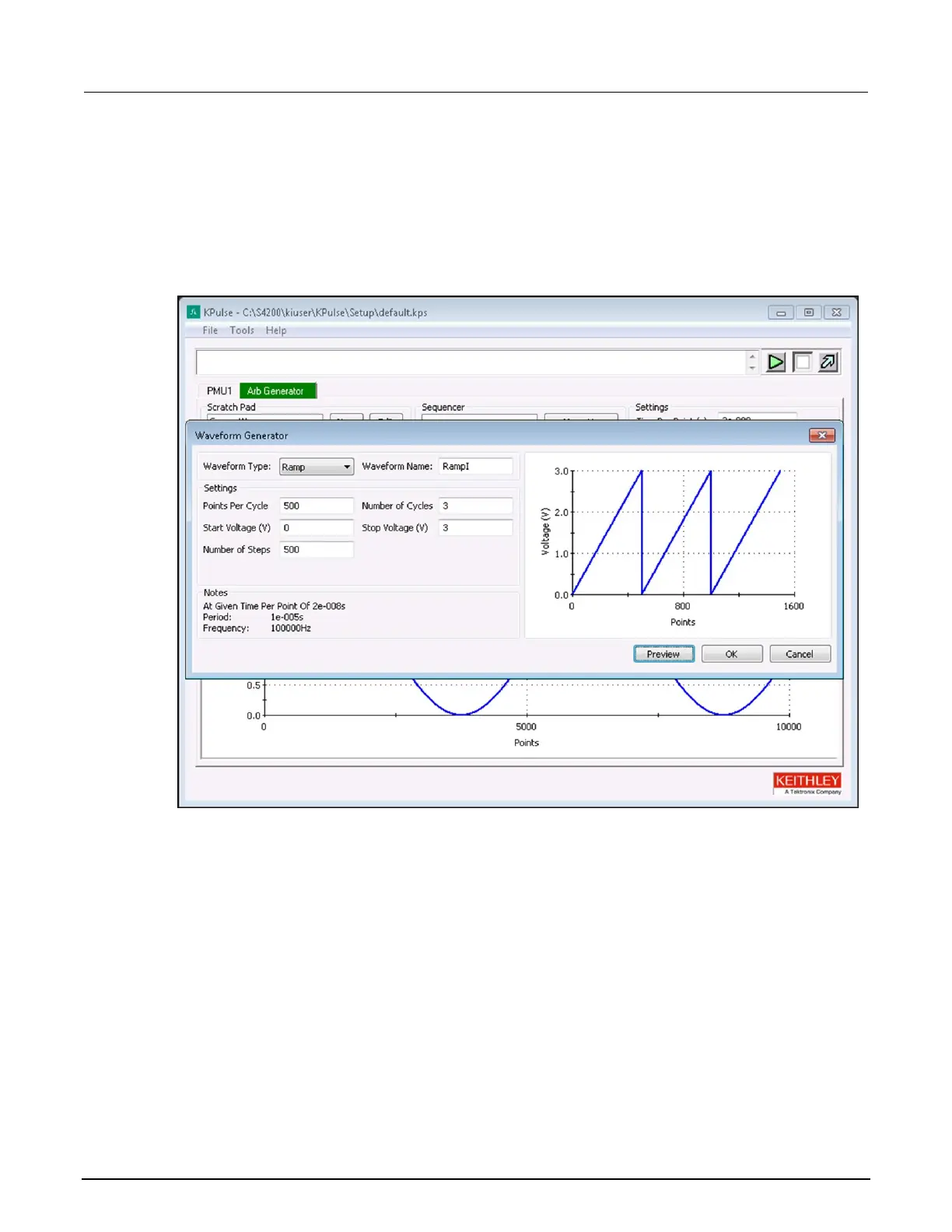

Figure 475: Custom Arb file operation: Select and configure waveforms

3. Select the Waveform Type to be created.

4. Configure the Settings for the selected waveform type.

5. Select Preview to update the preview of the waveform.

6. In the Waveform Name field, type in a name for the waveform. You cannot use a name that is

already used in the Scratch Pad.

7. Select OK to create the waveform. The new waveform is added to the Scratch Pad.

8. Repeat these steps to create another waveform in the Scratch Pad.
