C: Using a Keysight 4284/4980A LCR Meter Model 4200A-SCS Parameter Analyzer
Reference Manual
C-8 4200A-901-01 Rev. C / February 2017

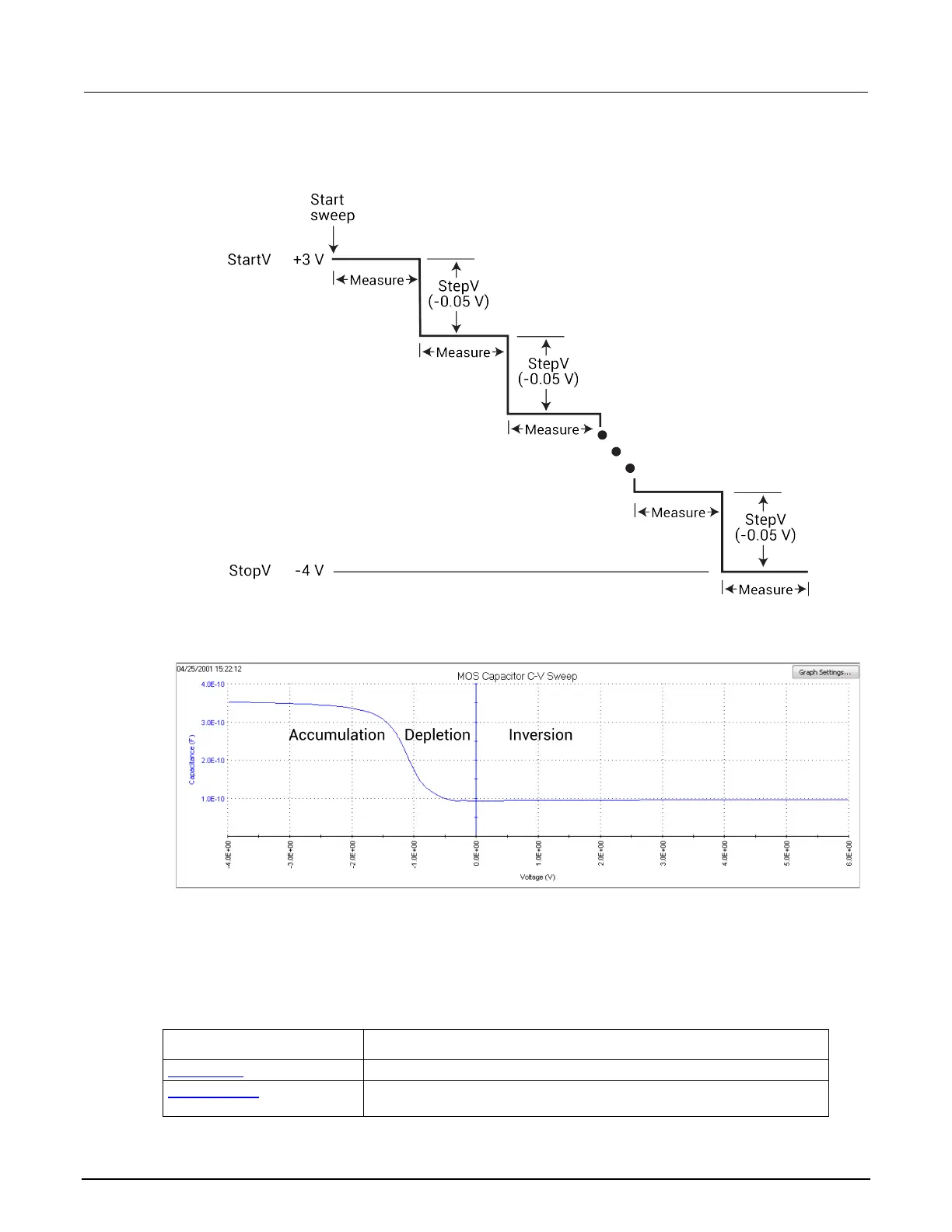

A configured sweep is shown in the following figure.
Figure 577: C-V linear staircase sweep
A typical graph that is generated by this test is shown below.
Figure 578: Typical C-V curve for a MOS capacitor
HP4284ulib user library
You use the user modules in the HP4284ulib user library to control the Keysight 4284A or 4980A
LCR Meter. These user modules are summarized in the following table.
HP4284ulib user library
User module Description
Cmeas4284 (on page C-11)
Makes a single capacitance measurement.
CvSweep4284 (on page C-9)
Makes capacitance versus voltage measurements using a staircase
sweep.
