Keithley 4200A-SCS Reference Manual

Section
7: Keithley Configuration Utility (KCon) Model 4200A-SCS Parameter Analyzer
Reference Manual
7-20 4200A-901-01 Rev. C / February 2017
The following table summarizes some differences and similarities between the two modes.
Command set comparison
Characteristic
Command set
4145 Emulation 4200A (Normal)
String reported in response to ID query
ID HP4145B 1.1,1.0
KI4200A Vx.x.x (where x.x.x is the
version number)
GPIB data resolution 5 digits 7 digits
Maximum number of sweep data points
1024
4096
Possible instrument configurations 8 SMU/VM/VS
Configuration query
Not supported
*OPT? command
Instrument self test
Not supported
SMUs only
Custom A/D control
Not supported
IT4 command options
200 V, 1 A capability
Supported
1.0 pA source/measure-range capability
(with preamplifer on SMU)
Supported
KXCI always starts in the selected mode.
For additional details about the differences between the 4200A extended mode and 4145 emulation
mode, refer to Keithley External Control Interface (KXCI) (on page 9-1
).
Tools
The options in the Tools dialog box allows you to change Formulator constants, generate technical
support files, and get KCon version and copyright information.
Formulator Constants
The Formulator Constants option allows you to access the default Formulator constants that are
automatically assigned to new Clarius test modules when they are created. You can edit the default
Formulator constants.

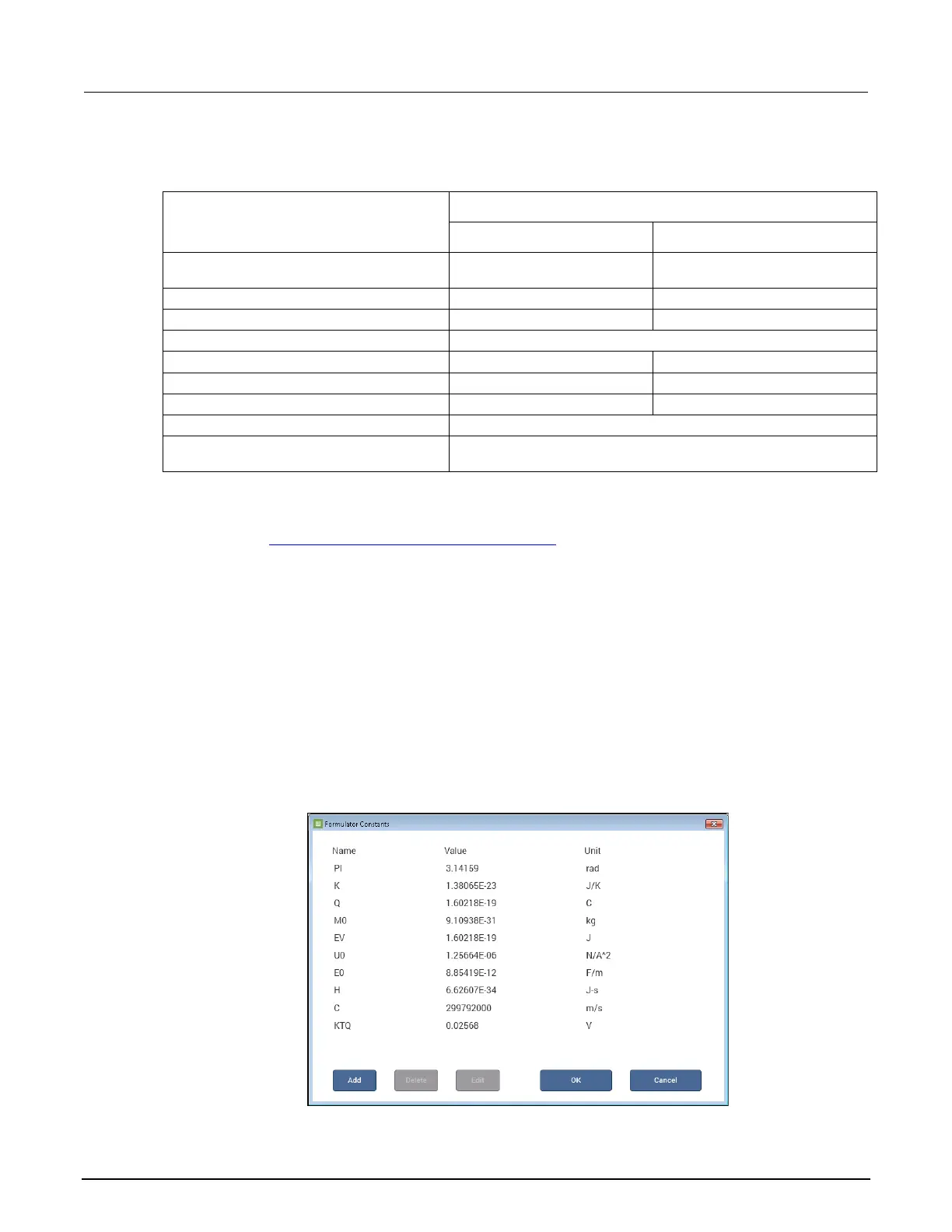

Figure 418: Default Formulator constants
