5: Pulse measure and pulse generator units Model 4200A-SCS Parameter Analyzer
5-8 4200A-901-01 Rev. C / February 2017

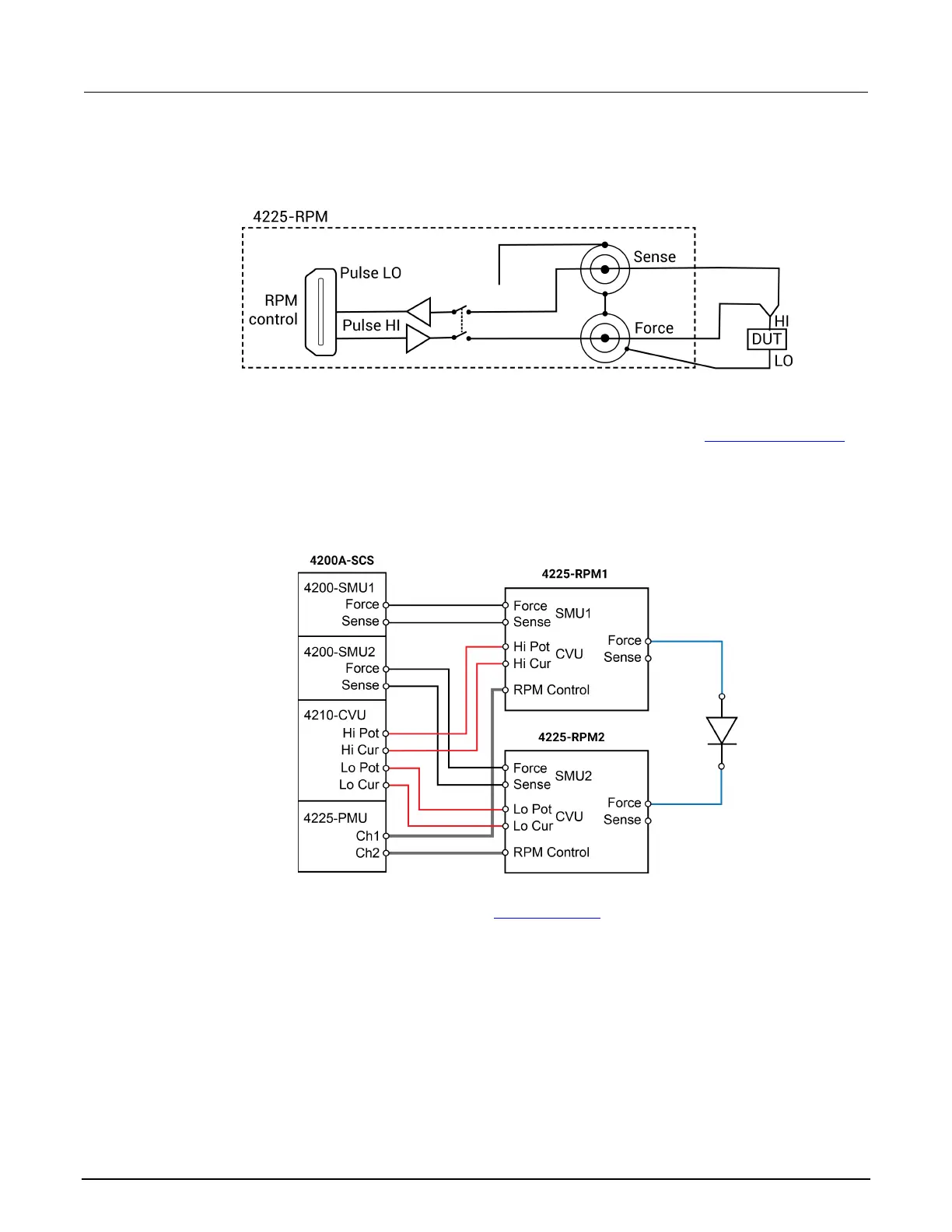

The next figure shows the diagram for remote sensing. Both Sense and Force are connected to
DUT HI.
Figure 147: Diagram for remote sensing
Using the RPM as a switch
You can use the RPM to switch a PMU, CVU, or SMU to a DUT terminal. The RPM wiring diagram
(on page 5-7) figure shows the switches. The next figure shows a typical test configuration for using
an RPM as a switch for a PMU, SMU, and CVU. In general, one RPM per device terminal is
recommended. By default, the PMU (with RPM) is connected to the output unless a SMU or CVU is
switched in.
Figure 148: Test configuration for using RPM as a switch
Both the red cables (supplied with the CVU) and the blue cables (supplied with the optional
4210-MMPC cable kits) are 100 Ω. You can do remote sensing (on page 5-19
) using the optional
4210-MMPC cable kits with the RPMs.
