Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 5: Pulse measure and pulse generator units
4200A-901-01 Rev. C / February 2017 5-19
Remote sensing
Optional prober cable kits are available from Keithley Instruments. These kits provide remote sense
connections to a DUT:
• Model 4210-MMPC-S: Use this cable kit with the Suss Micro Tec PA200/300 series prober.
• Model 4210-MMPC-C: Use this cable kit with the Cascade Microtech 12000 series prober
(manipulator type DCM-200 series).
• Model 4210-MMPC-L: Use this cable kit with a Lucas Signatone Wavelink series prober.
• Model 4210-MMPC-W: Use this cable kit with the Wentworth prober.
For details on using these prober cable kits, refer to PA-1000 for the Suss prober, PA-1001 for the
Cascade prober, PA-1080 for the Lucas Signatone prober, and PA-1085 for the Wentworth prober.

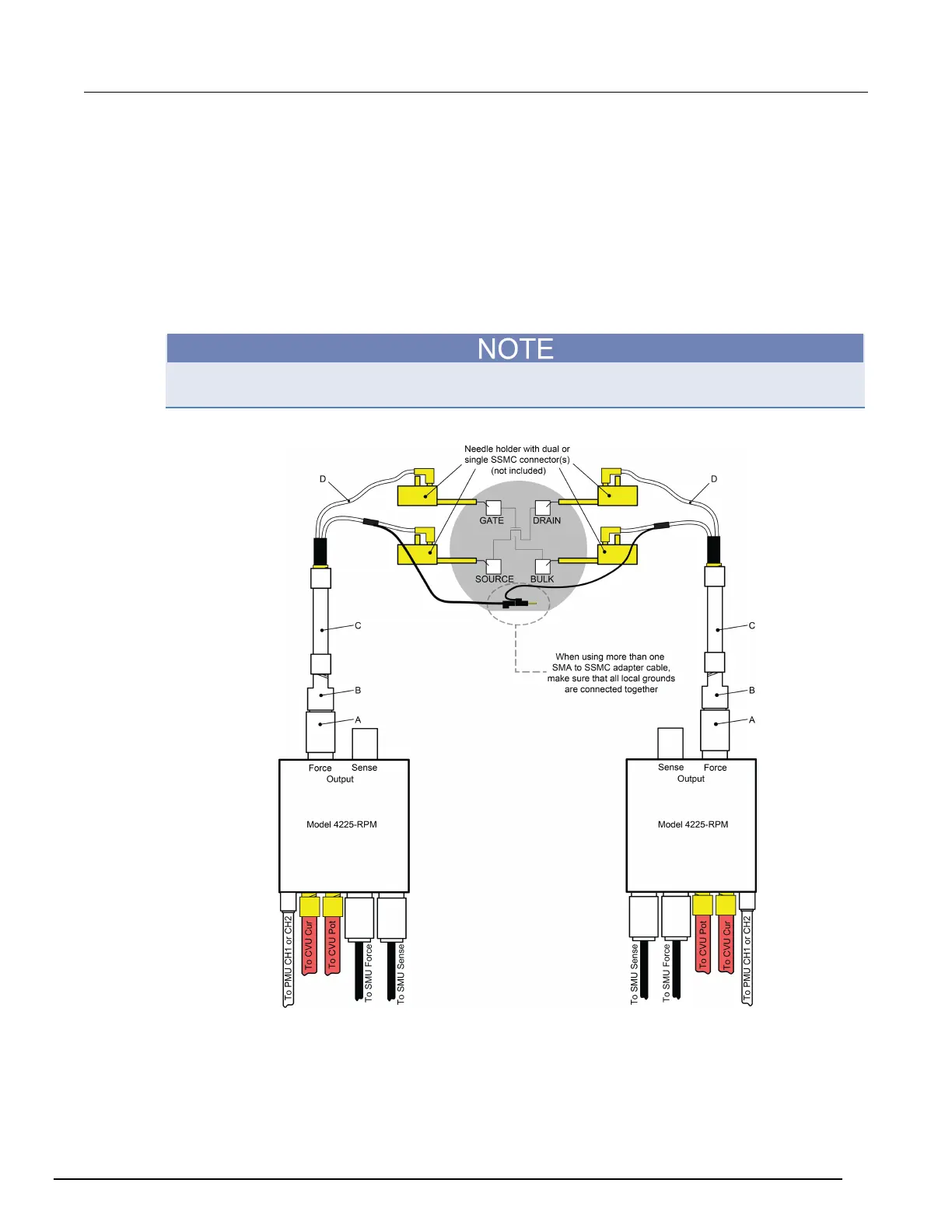

Figure 158: Four-terminal local sense connections using the SMA to dual SSMC adapter cable
A. Triax male-to-BNC female adapter (supplied with the RPM)
B. BNC male-to-SMA female adapter (supplied with the RPM)
C. White SMA cable (8 in./20.32 cm, supplied with the RPM)
D. SMA-to-SSMC Adapter Cable (4200-PRB-C, supplied with the PMU)
