5: Pulse measure and pulse generator units Model 4200A-SCS Parameter Analyzer
5-22 4200A-901-01 Rev. C / February 2017
PMU amplitude sweep example (one-channel)
This figure illustrates the configuration for a pulse amplitude sweep using a single PMU channel.

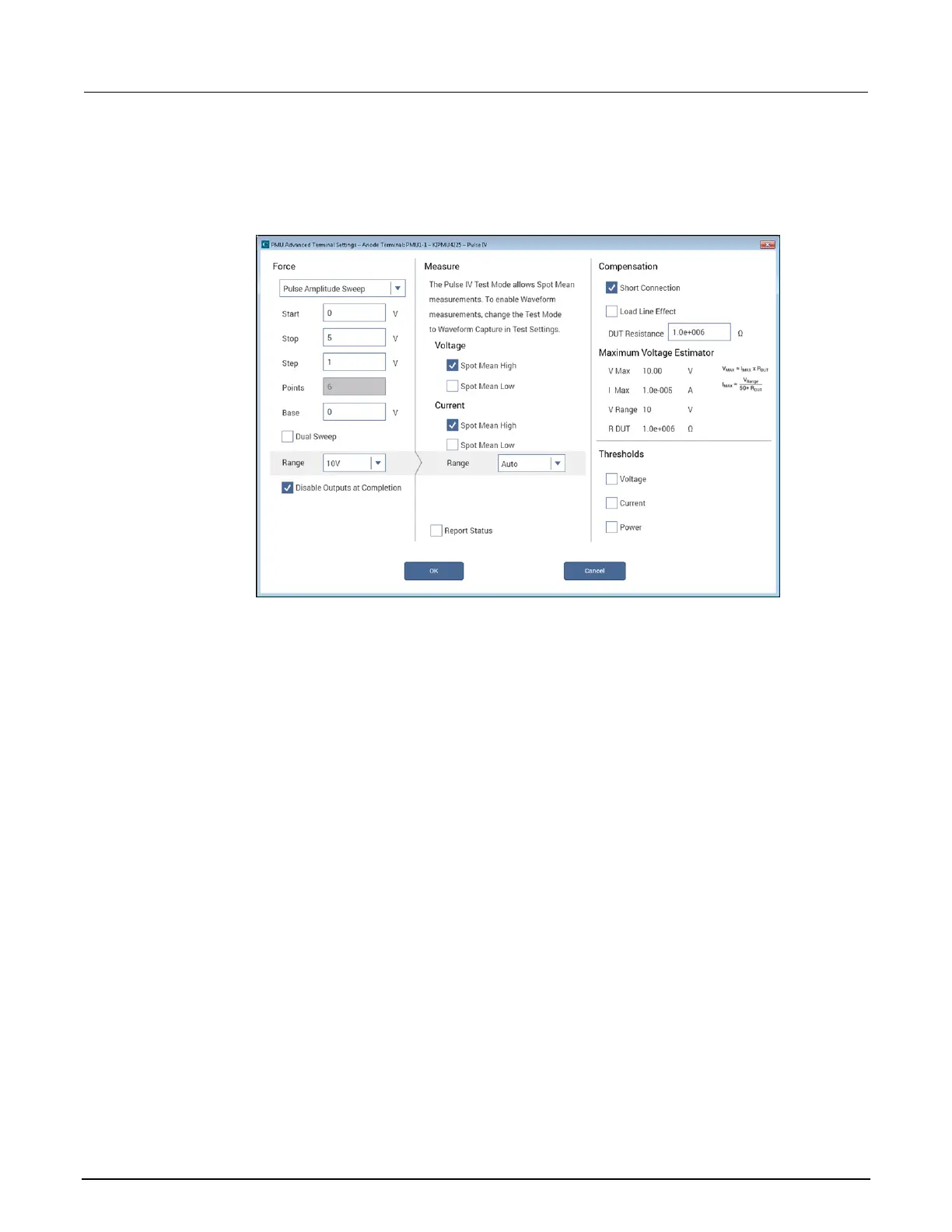

Figure 161: One-channel PMU amplitude sweep
The next figure illustrates the configuration of a six-step pulse amplitude sweep. In this sweep, the
PMU Advanced Settings dialog box (see previous figure) defines the test parameters.
In the Pulse Timing Preview, there are two graphs. The bottom graph, labeled “Entire Test,” shows
the complete test. This graph shows each sweep and step point for the entire test. The graphed
points reflect the PMU Advanced Settings for the PMU channel in the test. The cursor (the pair of
vertical black lines on the Entire Test graph) defines the content of the upper graph (the upper graph
is labeled “Expanded View”). Note that the test from the previous figure defines the six sweep points
that are shown in the bottom graph of the next figure as six pulse periods. In this example, the pulse
periods have voltage amplitude increasing from 0 V to 5 V (this is defined in previous figure).
